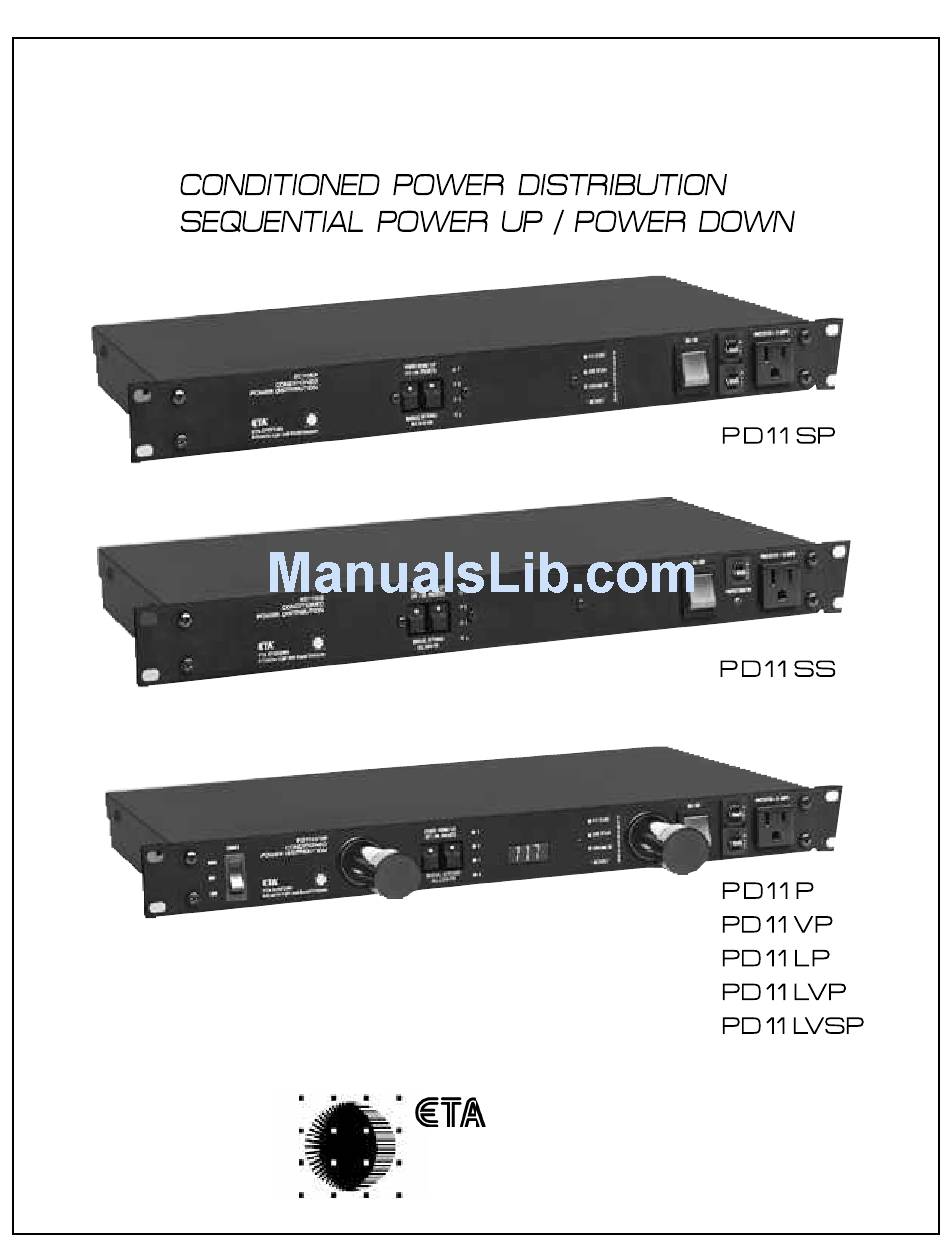

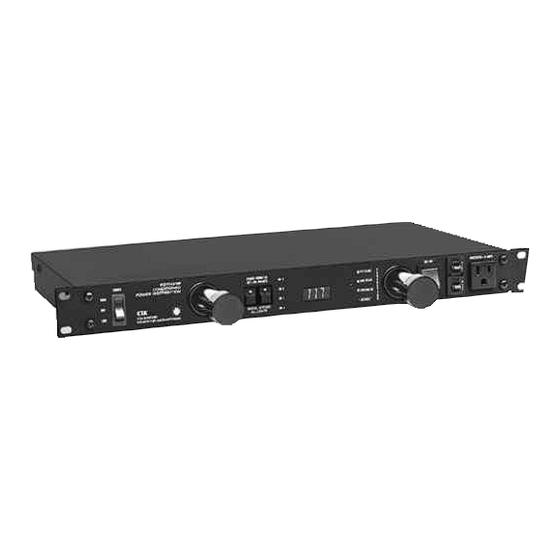

- Page 1 OWNER’S MANUAL © SYSTEMS A Creative Light & Sound Company 1532 Enterprise Parkway • Twinsburg, Ohio 44087 330-425-3388 • 800-321-6699 • Fax: 330-425-9700 http://www.etasys.com E-mail eta@etasys.com...
- Page 2 ETA’s line of Conditioned Power Distribution units are designed to reduce damage to sensitive electronic equipment from sudden voltage spikes, damaging power surges, and EMI/RFI noise, which is inherent in utility power lines. The PD11SP is a sequential four step/stage power up/down conditioned power distribution unit. It is designed to protect electronic equipment that requires a time-delayed start-up, particularly when high in-rush current can poten- tially damage audio, video, or computer equipment at power up.
- Page 3 The PD11SS is a sequential four step/stage power up/down conditioned power distribution unit. It is designed to protect electronic equipment that requires a time-delayed start-up, particularly when high in-rush current can potentially damage audio, video, or computer equipment at power up. 1 thru 4 steps/stages in sequential power up/ down 1, 5, 10, 30 second pre-sets PD11SS Features:...
- Page 4 Front View PD11LVP Model Shown Back View PD11P, 11VP, 11LP, 11LVP Back View PD11LVSP Stage 1 Easy 4-step bulb replacement. Use 120 volt 4 watt bulb (Christmas tree bulb). PD11LP, 11LVP, 11LVSP 1. Twist cap clockwise 2. Release bulb & socket Protection "On"...
- Page 5 PD11P, PD11VP, PD11LP, PD11LVP Features: • Light Switch (PD11LP/LVP/LVSP) activates rack illumination; choice of HI or LOW intensity • Light Tubes (PD11LP/LVP/LVSP) illuminates up to 25 rack spaces • 4 dual 20 amp U-grounded switched outlets per unit • 1 dual 15 amp U-grounded "always on" and protected outlet •...
- Page 6 4. Move power outlet switch to "ON" position to provide power to electrical equipment. 5. For illumination, pull out light tubes (PD11LP/LVP/LVSP) and move light switch to "HI" or "LOW" position. IMPORTANT! Be sure light switch is in "OFF"...
- Page 7 Three-Wire Remote Control Interface A three-wire remote control interface is added to the main PC board for the PD11SS, PD11SP AND PD11LVSP units. This remote control interface is accessible through an external terminal block on the back of the unit (see Figure 6). This interface requires an external user provided switch, L.E.D., and a three-wire cable to implement.
- Page 8 PCs—whether in the studio, in the boardroom, on tour, or in a home entertainment environment. Thank you for choosing ETA Systems Power Distribution Drawing upon our 20 years of solving high-amperage lighting needs and listening to customers’ concerns, we have developed a most extensive line of Audio Condi- tioned Power Distribution.
