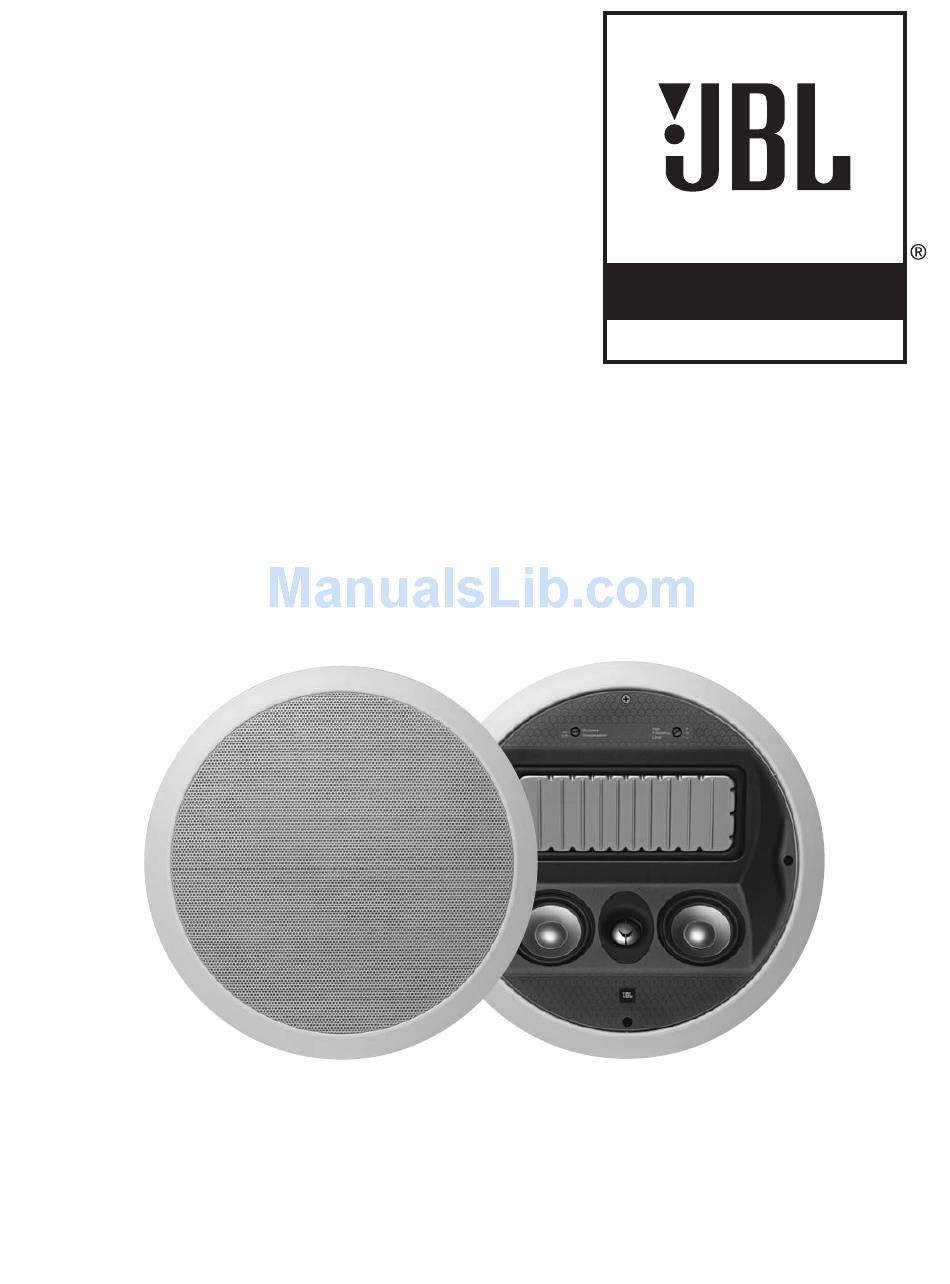

  • Page 1 STUDIO ™ SERIES LS360C OWNER’S GUIDE...
  • Page 2: Unpacking The Speakers

    THANK YOU FOR CHOOSING JBL For more than 60 years, JBL has been involved in every aspect of music and film recording and reproduction, from live performances to the recordings you play in your home, car or office. The LS360C has been specifically designed to deliver unsurpassed home theater sound reproduction from an in-ceiling speaker that does not intrude on your room or its décor.
  • Page 3: Speaker Connections

    7-channel configurations, place the rear channel(s) behind the listening position, as shown in Figure 3. NOTE: A JBL powered subwoofer will add impact and realism to both music and film soundtracks. Contact your JBL dealer for recommendations on subwoofer models for your application.
  • Page 4: Existing Construction

    EXISTING CONSTRUCTION 1. Remove the plastic paint 2. Determine the correct shield from the speaker frame. speaker location. NOTE: Use the included template when cutting the drywall. 5. Connect the speaker wires to 6. Make sure all four locking tabs the speaker.
  • Page 5: Operation

    PAINTING THE SPEAKER FRAME AND GRILLE The LS360C in-ceiling loudspeaker can be painted to match any décor. If you wish to change the color, the satin finish on the grille and frame will function as a primer coat. Before painting, install the paint shield (inner section of template in the assembly kit) securely into the recess in the baffle.
  • Page 6: Specifications

    SPECIFICATIONS LS360C Frequency Range ( + – 3dB) 80Hz – 20kHz Recommended 10 – 200 Watts Amplifier Power Range Sensitivity 85dB (2.83V @ 1 meter) Nominal Impedance 8 Ohms Crossover Frequency 700Hz, 2,000Hz; 24dB/octave Low-Frequency Driver 7-3/4" x 3-3/8" (197mm x 85mm)
  • Page 7 NOTES...
  • Page 8 Château du Loir, France 7/07 Features, specifications and appearance are subject to change without notice. JBL is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries. Pro Sound Comes Home, Studio and Radiator Plus (patent pending) are trademarks of Harman International Industries, Incorporated.
