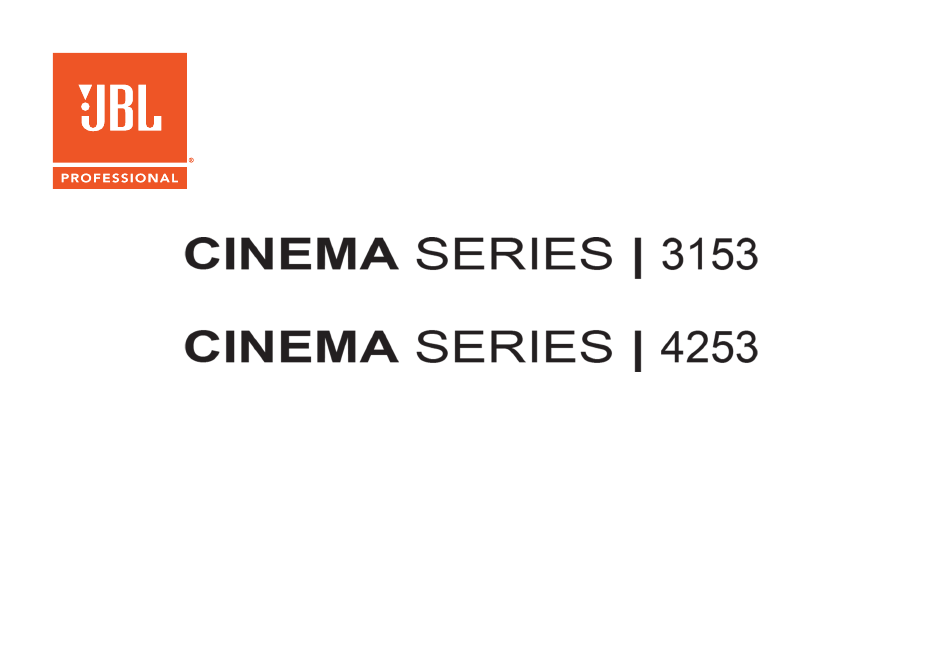

  • Page 1 ASSEMBLY INSTRUCTION GUIDE JBL CINEMA SERIES ASSEMBLY INSTRUCTION GUIDE...
  • Page 2 3. Align the pivot point screw holes found on the bottom of the 3132-M/HF to the front holes on the base plate as shown in Figure 2. 4. Secure the 3132-M/HF to the base plate using two of the supplied M5 x 10mm screws with a Philips head screw driver. Figure 1 Figure 2 JBL CINEMA SERIES ASSEMBLY INSTRUCTION GUIDE...
  • Page 3 2. Align the 4-pin female connector of the 3132-M/HF Horn into the male connector on the LF Cabinet paying close attention to the keying on the connectors and click in place as shown in Figure 4. Figure 3 Figure 4 JBL CINEMA SERIES ASSEMBLY INSTRUCTION GUIDE...
