JBL Performance Series PT800 Owner's Manual

Performance series studio monitor and cinema loudspeaker.
Hide thumbs
  • Contents

Advertisement

Table of Contents
S P E C I F I C A T I O N S

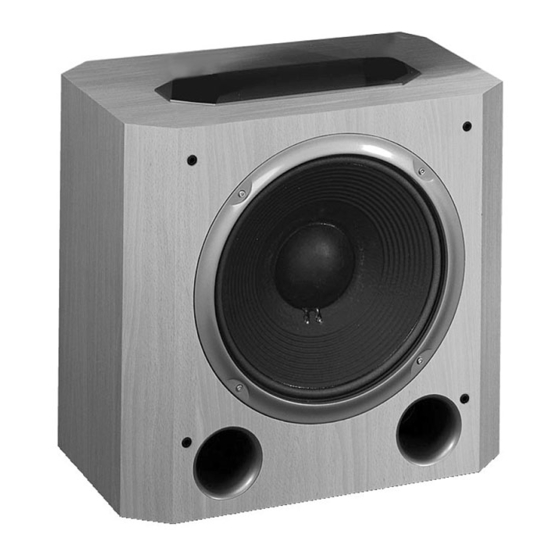

PS1400
Powered Subwoofer
Built-In Amplifier Power Output
400 Watts
Sensitivity (2.83V/1m)
91dB
Frequency Response (–6dB)
28Hz to 130Hz
Crossover Frequency
130Hz
Low-Frequency Transducer
LE14H-3 14" Aquaplas
woofer with rubber surround, 4"
edge-wound copper voice coil,
and cast-aluminum basket
Baffle
IsoPower™
Ports
2 FreeFlow™ flared
Terminals
5-Way, gold-plated binding posts
Dimensions (H x W x D)
19" x 20" x 15"
(483mm x 508mm x 381mm)
Plus grille and spike feet
Weight
80 lb (36kg)
All features and specifications
are subject to change without notice.
* Trademarks of Dolby Laboratories.
DTS is a registered trademark of Digital Theater Systems, Inc.
O W N E R ' S G U I D E
P R O D U C T
Performance
L I N E :
PS1400, PT800, PC600
M O D E L S :
D E S I G N G O A L : Bring the thrill of live performance and movie sound to
the home environment by calling on JBL's professional engineering leadership
T W E E T E R : 1-Inch, Pure-Titanium Dome with Rubber Surround, Mounted
™
in EOS
Waveguide
M I D R A N G E : 4-Inch, Titanium Inverted Dome with Rubber Surround and
Cast-Aluminum Basket
L O W - F R E Q U E N C Y : Titanium-Alloy Inverted Dome with Rubber Surround
and Cast-Aluminum Basket in PT800 and PC600; 14-Inch Aquaplas
Rubber Surround, 4-Inch Edge-Wound Copper Voice Coil and Cast-Aluminum
Basket in PS1400
P R O F E S S I O N A L R E F E R E N C E : Studio Monitor and Cinema
Loudspeaker Series
PT800 Satellites
Recommended Amplifier
Power Range
50 – 250 Watts
Nominal Impedance
8 Ohms
Sensitivity (2.83V/1m)
91dB
Frequency Response (–6dB)
80Hz to 22kHz
Crossover Frequencies
650Hz, 3200Hz
™
-cone
High-Frequency Transducer
1" Pure-titanium dome with
rubber surround, shielded, with
EOS
™
waveguide
Midrange Transducer
4" Titanium inverted dome with
rubber surround and cast-
aluminum basket, shielded
Low-Frequency Transducer
8" Titanium-alloy inverted dome
with rubber surround and cast-
aluminum basket, shielded
Baffle
IsoPower™
Ports
None (sealed enclosure)
Network
Straight-Line Signal Path
Terminals
5-Way, gold-plated binding posts
Dimensions (H x W x D)
24" x 13-1/2" x 6"
(610mm x 343mm x 152mm)
Plus grille
Weight
37 lb (17kg)
Series
™
with
™
™
(SSP)
P R O S O U N D
C O M E S
H O M E
JBL Consumer Products
250 Crossways Park Drive, Woodbury, NY 11797 USA
8500 Balboa Boulevard, Northridge, CA 91329
800-336-4JBL (4525) (USA only)
www.jbl.com
©2001 JBL, Incorporated.
JBL is a registered trademark of JBL, Incorporated.
Part No. 336608-001
PC600 Center
Recommended Amplifier
Power Range
50 – 250 Watts
Nominal Impedance
8 Ohms
Sensitivity (2.83V/1m)
91dB
Frequency Response (–6dB)
80Hz to 22kHz
Crossover Frequencies
800Hz, 3500Hz
High-Frequency Transducer
1" Pure-titanium dome with
rubber surround, shielded, with
EOS
™
waveguide
Midrange Transducer
4" Titanium inverted dome with
rubber surround and cast-
aluminum basket, shielded
Low-Frequency Transducer
Dual, 6, " titanium-alloy inverted
domes with rubber surround and
cast-aluminum basket, shielded
Baffle
IsoPower™
Ports
None (sealed enclosure)
Network
Straight-Line Signal Path
Terminals
5-Way, gold-plated binding posts
Dimensions (H x W x D)
11-5/8" x 26-7/16" x 7-1/4"
(295mm x 672mm x 184mm)
Plus grille
Weight
32 lb (15kg)
™
™
(SSP)
