Page 1: Battery Charger

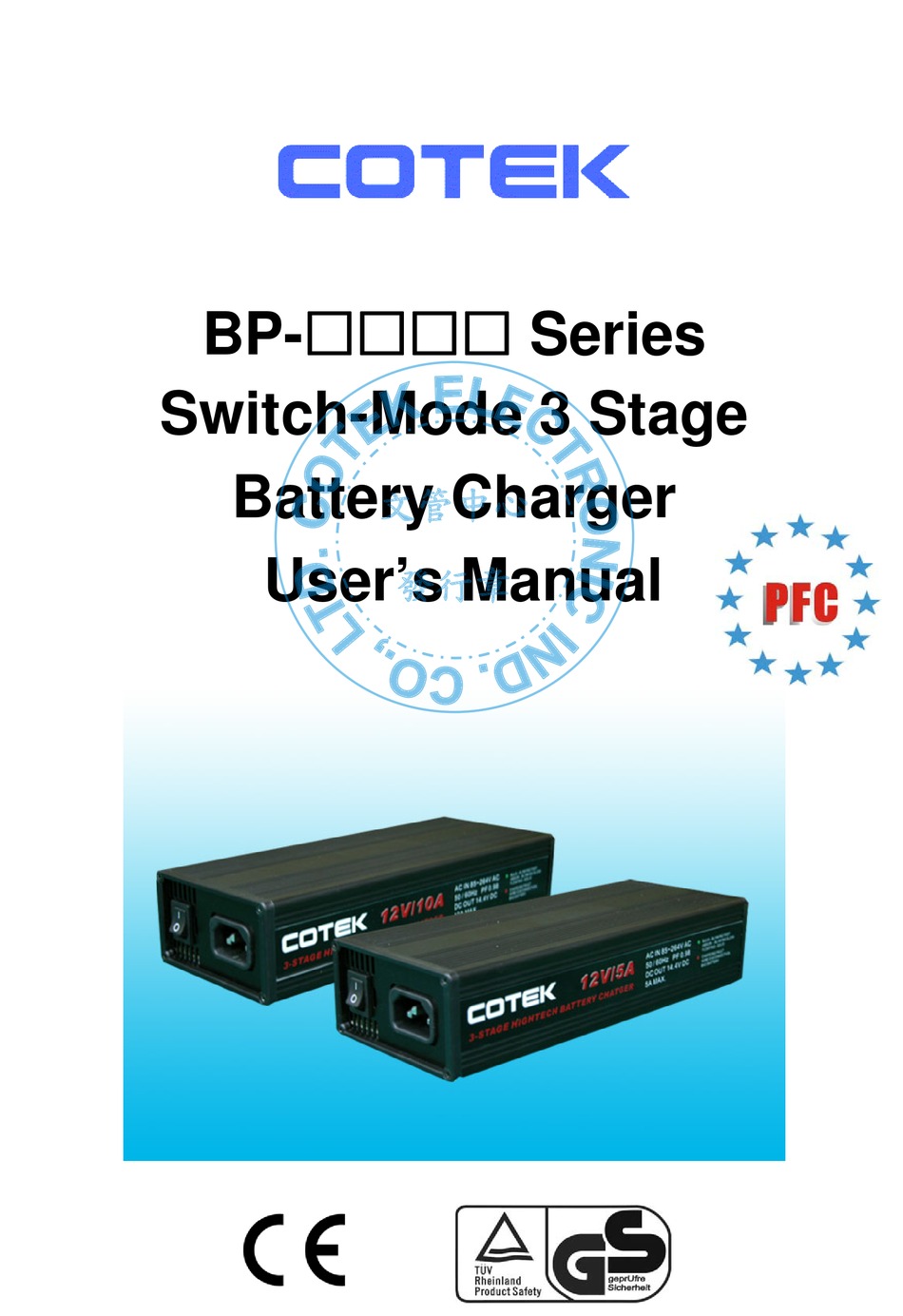

Series Switch-Mode 3 Stage Battery Charger 文管中心 User’s Manual 發行章... -
Page 2: Table Of Contents
文管中心 3. Instructions……………………………………………….……………………… Front Panel Operation..…………………………………………………... 發行章 Rear Panel Operation..…………………………………………………… Troubleshooting…………………………………………………………… Battery Type Selections………………………………………………….. Copyright ：This manual is the copyright off COTEK Electronic lnd. Co., Ltd. And may not be reproduced or copied without the express permission of the owner. -
Page 3: Important Safety Information
1. Important Safety Information WARNING! Before installing or using BP- Battery Charger, you need to read following safety information carefully. 1-1. General Safety Precautions 1-1-1. Do not expose BP-□□□□ Battery Charger to water, mist, snow, or dust. To reduce the risk of fire, do not cover or obstruct the ventilation shaft. -
Page 4: Battery Precautions
1-2. Battery Precautions 1-2-1.If battery acid contacts your skin or clothing, you shall wash it out with soap and water immediately. If battery acid contacts your eyes, you shall wash it out with cold running water for at 1 least 20 minutes and get medical attention immediately. -
Page 5: Features
2. Features High-performance 3-stage charging effect 0.98 typical power factor Advanced 8 bit microprocessor control circuit Reverse polarity protected by fuse Ignition protection Output short circuit protection Over power protection 文管中心 Switch mode technology Statue of charge indication by LED 發行章... -
Page 6: Electrical Characteristics
2-2. Electrical Characteristics Specification Technical Data Model No BP-1205 BP-1210 Input Voltage 100-240VAC / 50~60Hz Input Current 0.95A Max. 1.9A Max. Power Factor PF: 0.98 14.4V DC Output Voltage 5A Max. 10A Max. Output Current Output Power 75W Max. 150W Max. -
Page 7: Mechanical Drawing
2-3. Mechanical Drawing 文管中心 發行章 FUSE OUTPUT STATUS... -
Page 8: Instructions
3. Instructions BP-□□□□ series are high frequency switch-mode 3-stage battery chargers equipped with micro-controller and PFC circuit to manage battery intelligently and to provide highly reliable operations. Before using BP-□□□□, read all instructions and precautions marking on this manual. 3-1. Front Panel Operation： 3-1-1.Front view：... -
Page 9: Rear Panel Operation
3-1-2.ON / OFF switch： Power ON / OFF switch, leave the status OFF during installation. 3-1-3.LED Status Charging Status LED Indication Fast Charge Fast Green Blink Slow Charge Slow Green Blink Floating Charge Solid Green Charging Failure Red Blink Bad Battery or Wire Disconnection Red Blink 文管中心... -
Page 10: Troubleshooting
Surrounding it. 3-4. Battery Type Selections： Sealed lead acid and open lead acid batteries are as follows： Model No. Battery Capacity (Min.) Battery Capacity (Max.) BP-1205 12V / 15Ah 12V / 50Ah BP-1210 12V / 30Ah 12V / 100Ah BP-2403 24V / 7.5Ah... - Page 11 文管中心 發行章 No. 33, Rong Hsin Rd., Pa Teh City, Tao Yuan County, Taiwan Phone：886-3-3661581 FAX：886-3-3676029 E-mail：sales@cotek.com.tw http：// www.cotek.com.tw 2005.08...
