CABINET PARTS
REFRIGERATOR
For Models: G32026PEKS5
(Stainless Steel)
Part No. W10297576 Rev.A
10−09 Litho In U.S.A. (rrm)(bay)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G32026PEKS5 and is the answer not in the manual?

Questions and answers

Related Manuals for Whirlpool G32026PEKS5

Summary of Contents for Whirlpool G32026PEKS5

  • Page 1 CABINET PARTS REFRIGERATOR For Models: G32026PEKS5 (Stainless Steel) Part No. W10297576 Rev.A 10−09 Litho In U.S.A. (rrm)(bay)

  • Page 2: Cabinet Parts

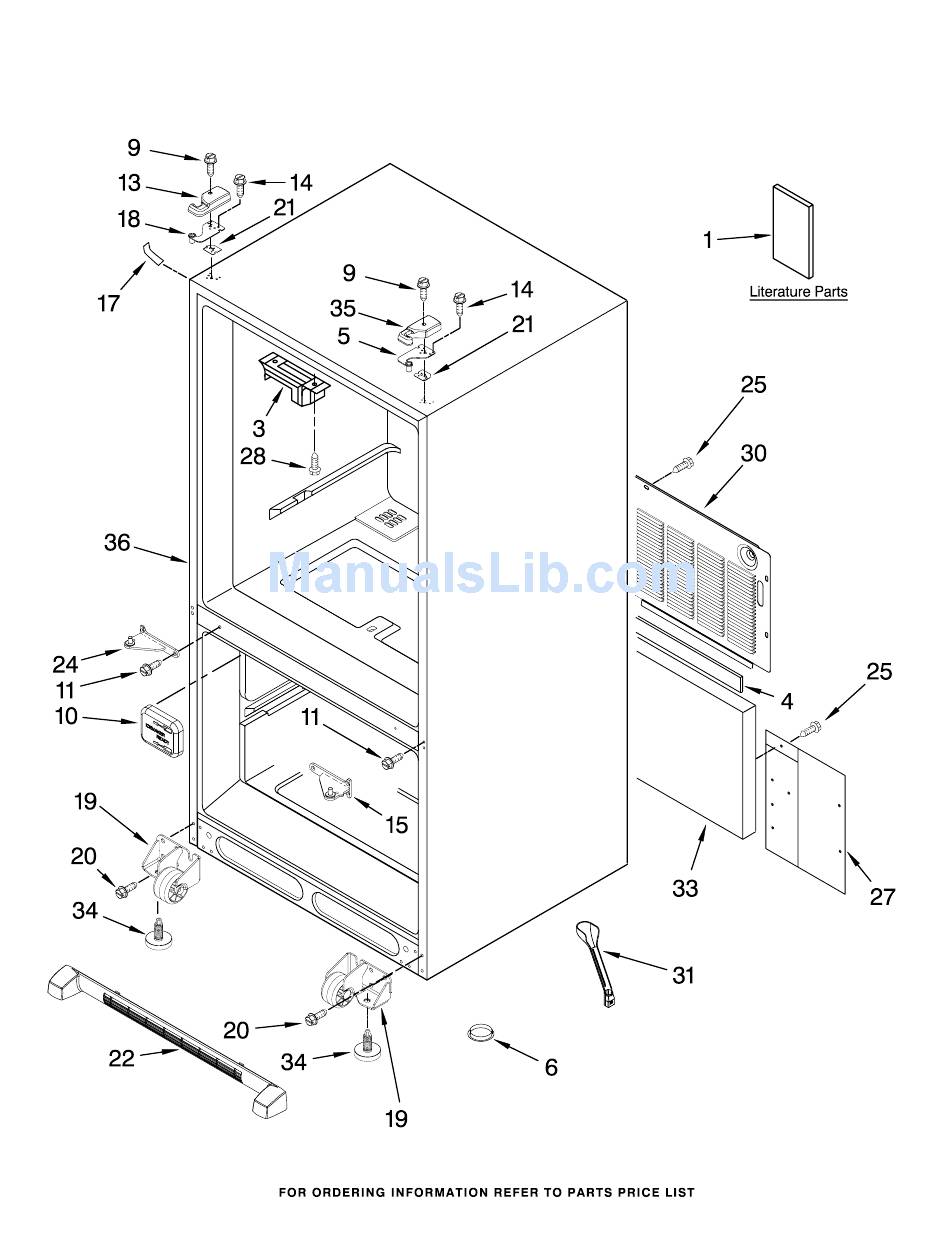

    CABINET PARTS For Models: G32026PEKS5 (Stainless Steel) Illus. Part DESCRIPTION Literature Parts W10239995 Tech Sheet 12828189SP Owners Manual 12698403 Block, Pivot B5759655 Gasket 5 12566604ED Hinge, Top Right A3076901 Plug, Button 12992602 Screw 12477501 Cover−Fill Tube 12992201 Screw (6) Cover, Left Hinge...
