- Page 1 CABINET PARTS REFRIGERATOR For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) (Stainless Steel) 3−08 Litho In U.S.A. (CJJ) Part No. W10189788 Rev. B...
-

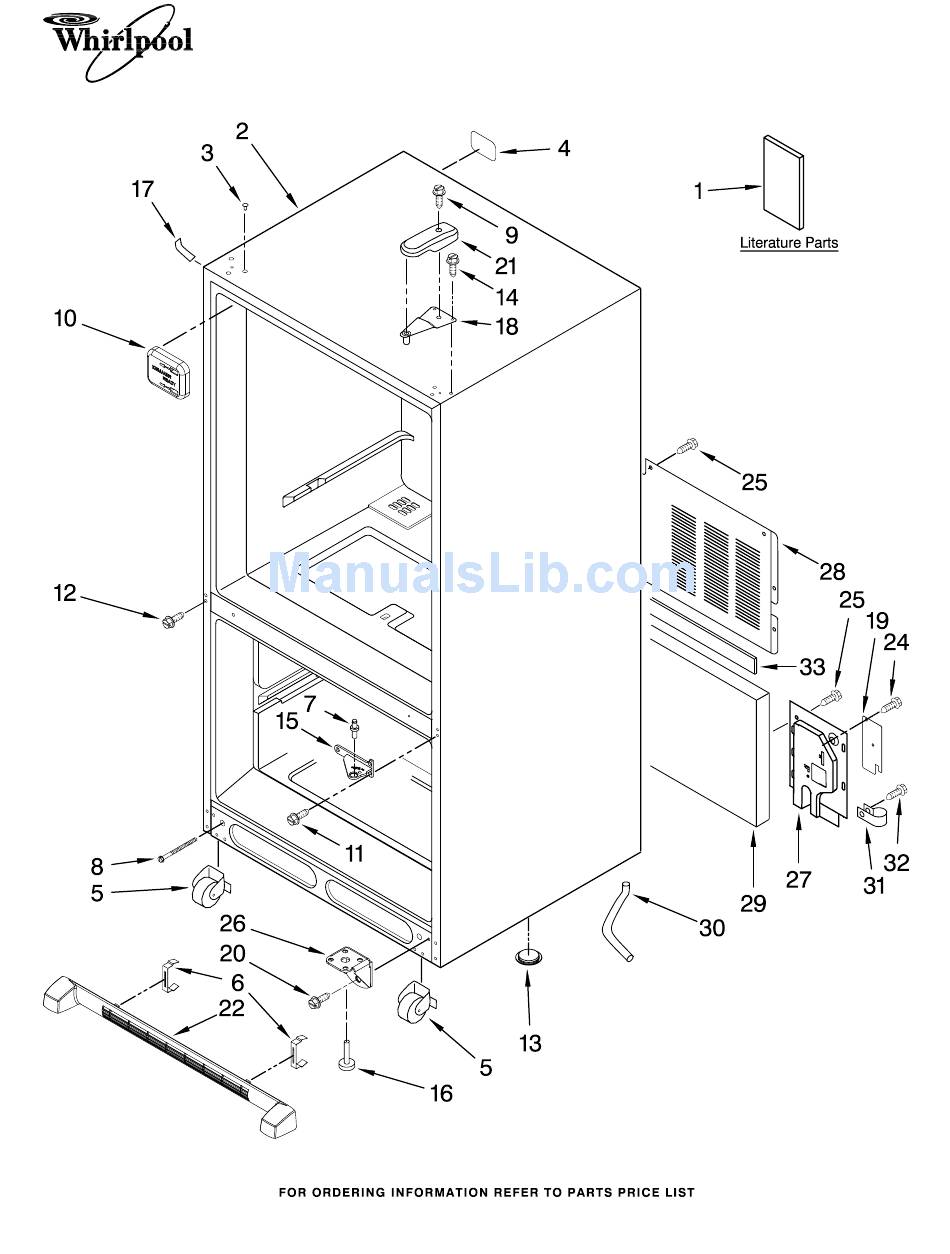

Page 2: Cabinet Parts
CABINET PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) Illus. Part DESCRIPTION Literature Parts W10137645 Owners Manual 67005395 Energy Tag W10165418 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 67001130 White 67001131 Black 67005064 Label, Fill Tube 67006118 Roller Assembly 12627302 Clip, Grille 67006642 Pin, Center Hinge 67006611 Bolt, Adjusting... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) (Stainless Steel) W10189788... - Page 4 REFRIGERATOR LINER PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) Y67003896 Bracket, Control and Lights 67005190 Overlay 4 W10185244 Housing, Electronic Control 5 W10165748 Board, Control C3680310 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2) Y12570701 Socket, Light (2)
-
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) (Stainless Steel) W10189788... - Page 6 FREEZER LINER PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam (2) 12002497 Gear (2) (Includes RH & LH) 67003905 Cover, Light 67004067 Shaft Y12570701 Socket, Light 67006473 Screw (8) A0282812 Bulb, Light 67001035 Housing, Frz.
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) (Stainless Steel) W10189788... - Page 8 REFRIGERATOR DOOR PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) 67001138 White 67001136 Black W10174588 Stainless Steel Plug, Vent 10712401 White 67004838 Black 67003819 Door, Compartment 67001279 Tray, Dairy 67003777 Bucket (2) (Medium) 67002684 Nameplate Plug, Button (2) 67001131 Black...
-
Page 9: Freezer Door Parts
FREEZER DOOR PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) (Stainless Steel) W10189788... - Page 10 FREEZER DOOR PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) W10184159 White W10184161 Black W10177221 Stainless Steel Handle, Door 67002677 White 67002679 Black Trim, Handle 67002682 White 67002680 Black Gasket, Door W10130150 White 12683816B Black 67006682 Screw Plug, Vent (2)
-
Page 11: Shelf Parts
SHELF PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) (Stainless Steel) W10189788... - Page 12 SHELF PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) Illus. Part DESCRIPTION 67002690 Ladder, Side 67006400 Screw (6) 67002689 Ladder, Center 67006360 Screw (2) 67002687 Shelf, Meatkeeper 12204810 Glass, Crisper 67004380 Frame, Crisper 67002687 Pan, Meatkeeper 12227101 Knob, Control D7725402 Tray, Ice Cube 67001057 Rail, Center Crisper 8170554 Brace, (2)
-
Page 13: Unit Parts
UNIT PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) (Stainless Steel) W10189788... - Page 14 For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 Illus. Part DESCRIPTION 67006433 Screw (3) 2 W10162928 Blade, Fan 67006914 Basepan 67006425 Screw (2) 67004954 Screw (3) 6 W10130129 Compressor 7 W10119856 Harness, Evap. Heater 67004713 Drain Pan 61004743 Grommet (3) 67002135 Evaporator Heater 67005562 Capacitor 12 W10174592 Overload/Relay (Capacitor Incl.)
-
Page 15: Icemaker Parts
ICEMAKER PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) (Stainless Steel) W10189788... - Page 16 ICEMAKER PARTS For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 (White) (Black) Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available Order D7824706Q) 67004028 Arm, Shutoff 628356 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2195914 Support & Motor Assembly 2315522 Retainer, Thermostat Thermostat (Not Available Order D7824706Q) 681249 Screw (2)
- Page 17 OPTIONAL PARTS (NOT INCLUDED) For Model: GB9SHDXPQ02, GB9SHDXPB02, GB9SHDXPS02 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350939 Black 350942 Primer, White Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
