Whirlpool GD5DHAXVQ - 25 Cubic Foot 2008 Approved Sid Parts Manual

Parts diagram
Hide thumbs

Advertisement

Quick Links

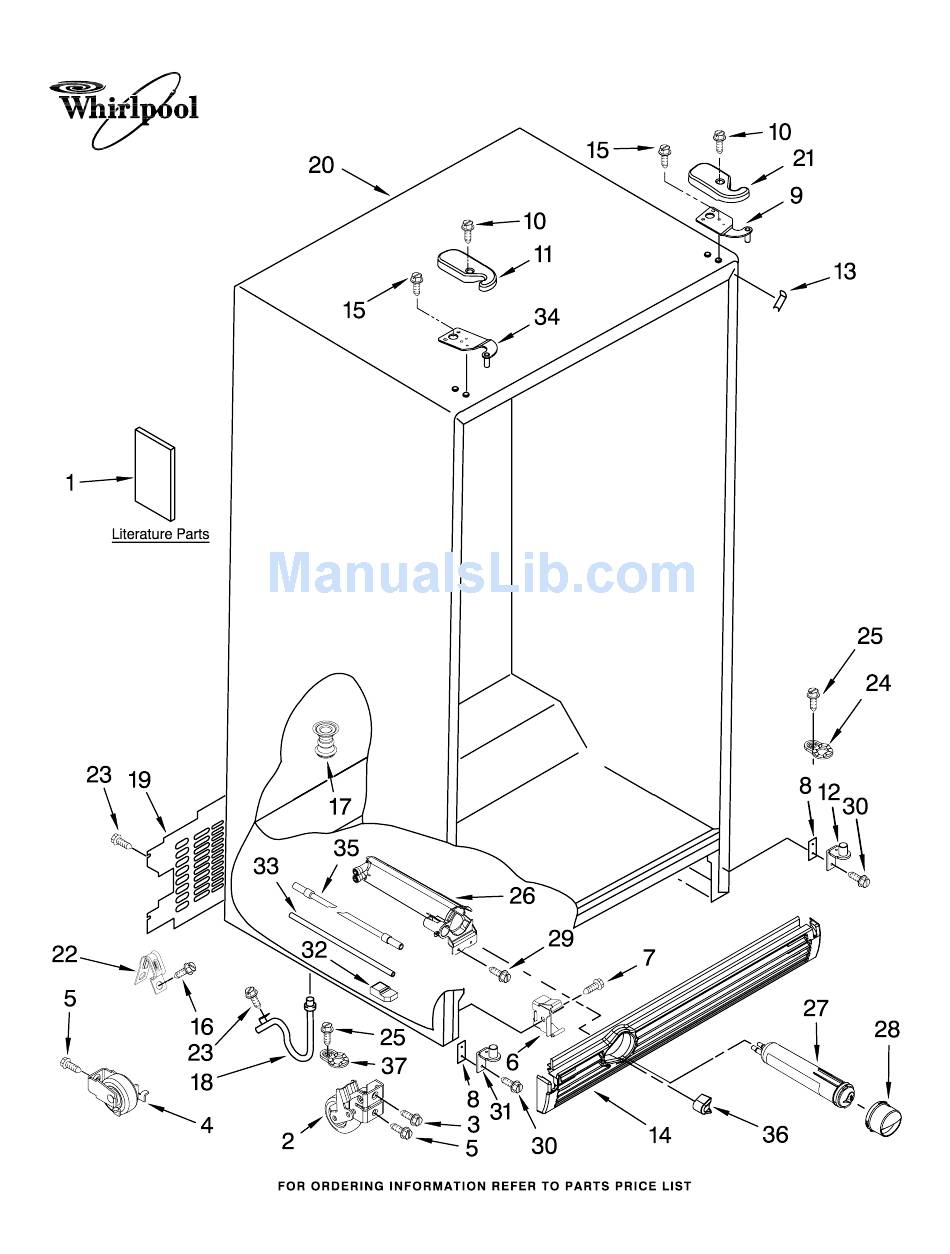

CABINET PARTS
REFRIGERATOR
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White)
(Black) (Monochromatic Satina)(Monochromatic Stainless)
06−08 Printed In U.S.A. (jdc) (mek)
1
Part No. W10205170 Rev. B
