CABINET PARTS
REFRIGERATOR
For Models: G32026PEKS4
(Stainless Steel)
9−09 Litho In U.S.A. (mat)(bay)
Part No. W10294592 Rev.A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G32026PEKS4 and is the answer not in the manual?

Questions and answers

Related Manuals for Whirlpool G32026PEKS4

Summary of Contents for Whirlpool G32026PEKS4

  • Page 1 CABINET PARTS REFRIGERATOR For Models: G32026PEKS4 (Stainless Steel) 9−09 Litho In U.S.A. (mat)(bay) Part No. W10294592 Rev.A...

  • Page 2: Cabinet Parts

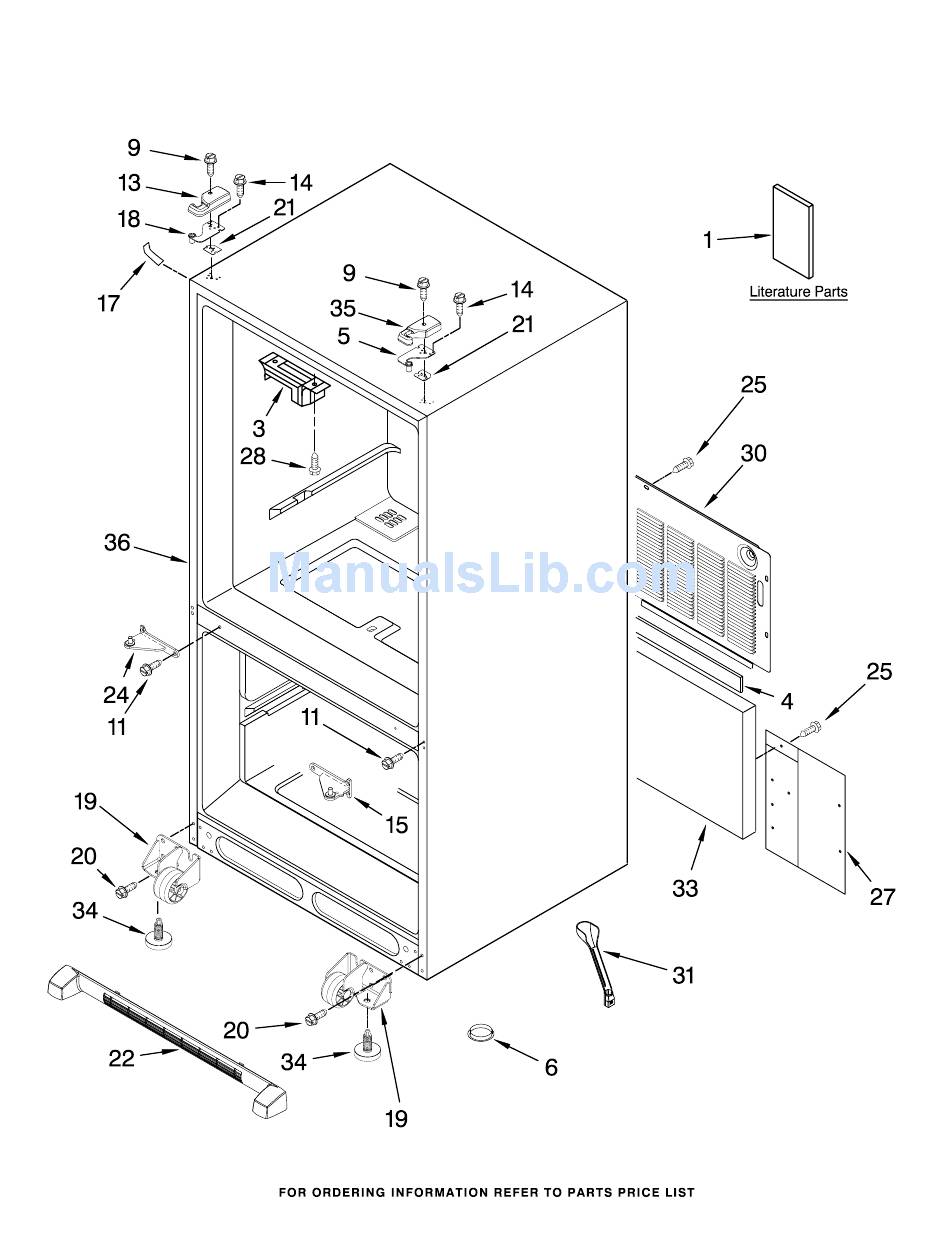

    CABINET PARTS For Models: G32026PEKS4 (Stainless Steel) Illus. Part DESCRIPTION Literature Parts W10239995 Tech Sheet 12828189SP Owners Manual 12698403 Block, Pivot B5759649 Gasket 5 12566604ED Hinge, Top Right A3076901 Plug, Button 12992602 Screw 12992201 Screw (6) Cover, Left Hinge 12684201B Black...

  • Page 3: Freezer Liner Parts

    FREEZER LINER PARTS For Models: G32026PEKS4 (Stainless Steel) W10294592...
  • Page 4 FREEZER LINER PARTS For Models: G32026PEKS4 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam 12002497 Gear (Includes LH & RH) 12804901 Cover, Light 5 12812903WD Shaft 6 W10134764V Socket, Light 12932103 Guide, Fill Tube 12990521 Screw (8)

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: G32026PEKS4 (Stainless Steel) W10294592...
  • Page 6 REFRIGERATOR LINER PARTS For Models: G32026PEKS4 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 12806302 Bracket, Control and Lights 12816517 Keyboard 12806406 Housing, Control 12868515 Board, Control 6 C3680310V Switch, Light (2) 12806501 Cover, Light 12806601V Housing, Light...

  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: G32026PEKS4 (Stainless Steel) W10294592...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: G32026PEKS4 (Stainless Steel) Illus. Part DESCRIPTION Door, Left 13023944SQ Stainless Door, Right 13024031SQ Stainless 3 12804701SP Door, Dairy 4 12369502SP Tray, Dairy 12557214 Bin, Shelf (3) (Medium) Mullion, Door 12722811B Black 12990204 Screw Gasket, Door (2)

  • Page 9: Unit Parts

    UNIT PARTS For Models: G32026PEKS4 (Stainless Steel) W10294592...
  • Page 10 UNIT PARTS For Models: G32026PEKS4 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12992301 Screw 18 W10135027 Condenser Following Parts Not Illustrated 12825803 Blade, Fan 10547003 Clip, Drier and Optional Parts Not Included 3 W10210985 Basepan 20 12225403WD Tray, Drip...

  • Page 11: Shelf Parts

    SHELF PARTS For Models: G32026PEKS4 (Stainless Steel) W10294592...
  • Page 12 SHELF PARTS For Models: G32026PEKS4 (Stainless Steel) Illus. Part DESCRIPTION 12204829 Glass, Pantry 12463911 Shelf, Glide Out 12990601 Screw 4 12655902SP Extr, Glass Support (2) 5 12227305WD Brace, Pantry (2) 12531901 Track, Pantry 12693802 Divider, Upper Basket 12656901 Gasket, Pantry...

  • Page 13: Freezer Door Parts

    FREEZER DOOR PARTS For Models: G32026PEKS4 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door 13092214SQ Stainless Handle 12850918 Stainless Gasket, Door W10164041 Black 12945201 Mount, Handle W10294592...
  • Page 14 OPTIONAL PARTS (NOT INCLUDED) For Models: G32026PEKS4 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION TORX SCREW WRENCH Parts Not Illustrated and Miscellaneous Optional Parts (Not Included) 1117510 Torx Key 212643 Sealer, Gum (4 Feet) Customer Touch−Up Material...
