- Page 1 CABINET PARTS REFRIGERATOR For Models: G32026PEKW3 (White) Part No. W10294593 Rev.A 9−09 Litho In U.S.A. (mat)(bay)
-
Page 2: Cabinet Parts

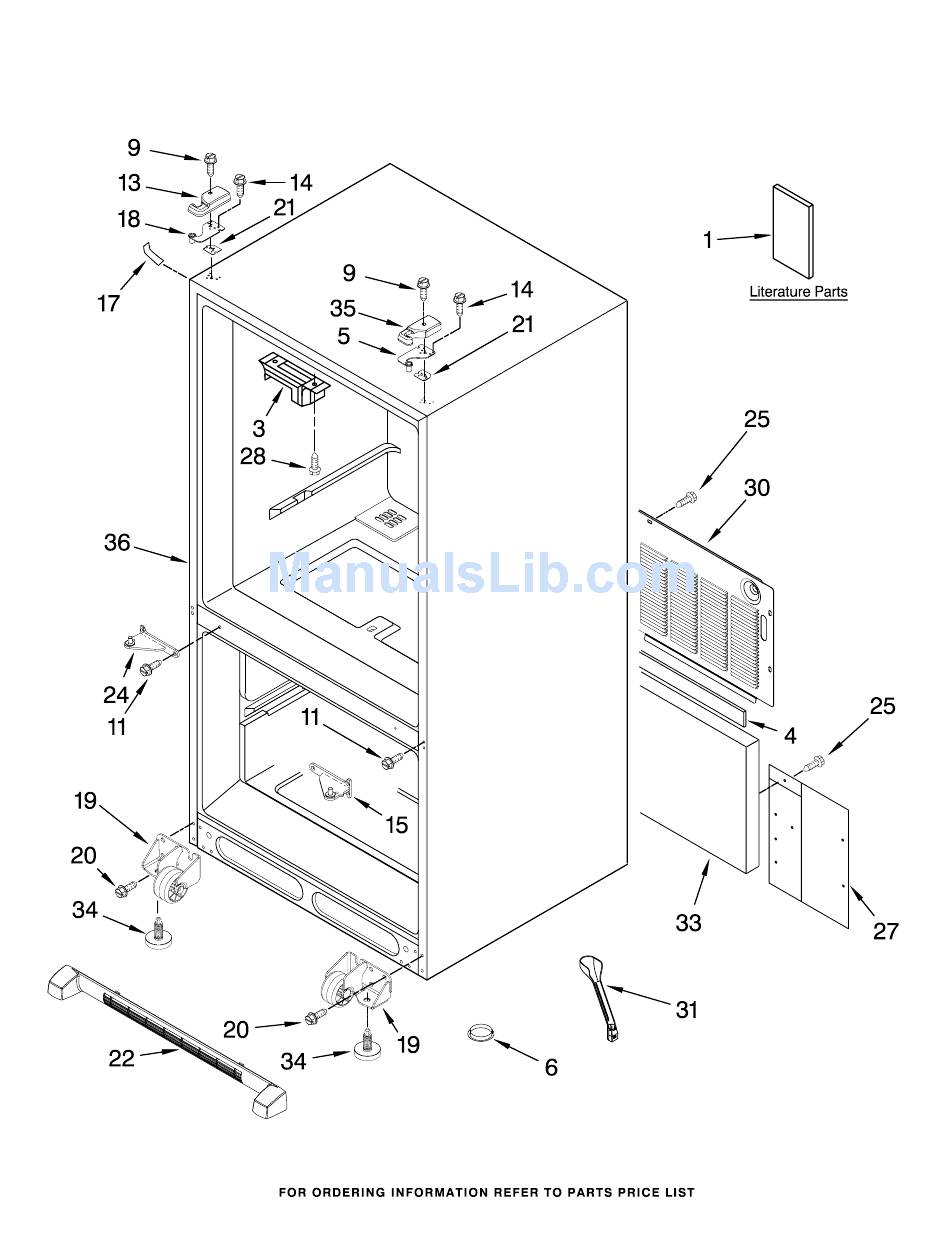

CABINET PARTS For Models: G32026PEKW3 (White) Illus. Part DESCRIPTION Literature Parts W10239995 Tech Sheet 12828189 Owners Manual 12698403 Block, Pivot B5759649 Gasket 5 12566604ED Hinge, Top Right A3076901 Plug, Button 12992602 Screw 12992201 Screw (6) Cover, Left Hinge W10177766 White... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: G32026PEKW3 (White) W10294593... - Page 4 FREEZER LINER PARTS For Models: G32026PEKW3 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam 12002497 Gear (Includes LH & RH) 12804901 Cover, Light 5 12812903WD Shaft 6 W10134764V Socket, Light 12932103 Guide, Fill Tube 12990521 Screw (8)
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: G32026PEKW3 (White) W10294593... - Page 6 REFRIGERATOR LINER PARTS For Models: G32026PEKW3 (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 12806302 Bracket, Control and Lights 12816517 Keyboard 12806406 Housing, Control 12868515 Board, Control 6 C3680310V Switch, Light (2) 12806501 Cover, Light 12806601V Housing, Light 9 A0282808V Bulb, Light (2)
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: G32026PEKW3 (White) W10294593... - Page 8 REFRIGERATOR DOOR PARTS For Models: G32026PEKW3 (White) Illus. Part DESCRIPTION Door, Left 12732427WQ White Door, Right 13024017WQ White 3 12804701SP Door, Dairy 4 12369502SP Tray, Dairy 12557214 Bin, Shelf (3) (Medium) Mullion, Door 12722811WKV White 12990204 Screw Gasket, Door (2)
-
Page 9: Unit Parts
UNIT PARTS For Models: G32026PEKW3 (White) W10294593... - Page 10 UNIT PARTS For Models: G32026PEKW3 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 18 W10135027 Condenser 12992301 Screw Following Parts Not Illustrated 10547003 Clip, Drier 12825803 Blade, Fan and Optional Parts Not Included 20 12225403WD Tray, Drip 3 W10210985 Basepan...
-
Page 11: Shelf Parts
SHELF PARTS For Models: G32026PEKW3 (White) W10294593... - Page 12 SHELF PARTS For Models: G32026PEKW3 (White) Illus. Part DESCRIPTION 12204829 Glass, Pantry 12463911 Shelf, Glide Out 12990601 Screw 4 12655902SP Extr, Glass Support (2) 5 12227305WD Brace, Pantry (2) 12531901 Track, Pantry 12693802 Divider, Upper Basket 12656901 Gasket, Pantry 12656202 Housing, Control...
-
Page 13: Freezer Door Parts
FREEZER DOOR PARTS For Models: G32026PEKW3 (White) Illus. Part DESCRIPTION Freezer Door 13092203WQ White Handle W10179171 White Gasket, Door W10164040 White 12992902 Mount, Handle W10294593... - Page 14 OPTIONAL PARTS (NOT INCLUDED) For Models: G32026PEKW3 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH Parts Not Illustrated and Optional Parts (Not Included) 1117510 Torx Key 212643 Sealer, Gum (4 Feet) Customer Touch−Up Material...
