Whirlpool GB2SHTXTB00 Parts Manual

Whirlpool corporation refrigerator parts manual
Hide thumbs

Advertisement

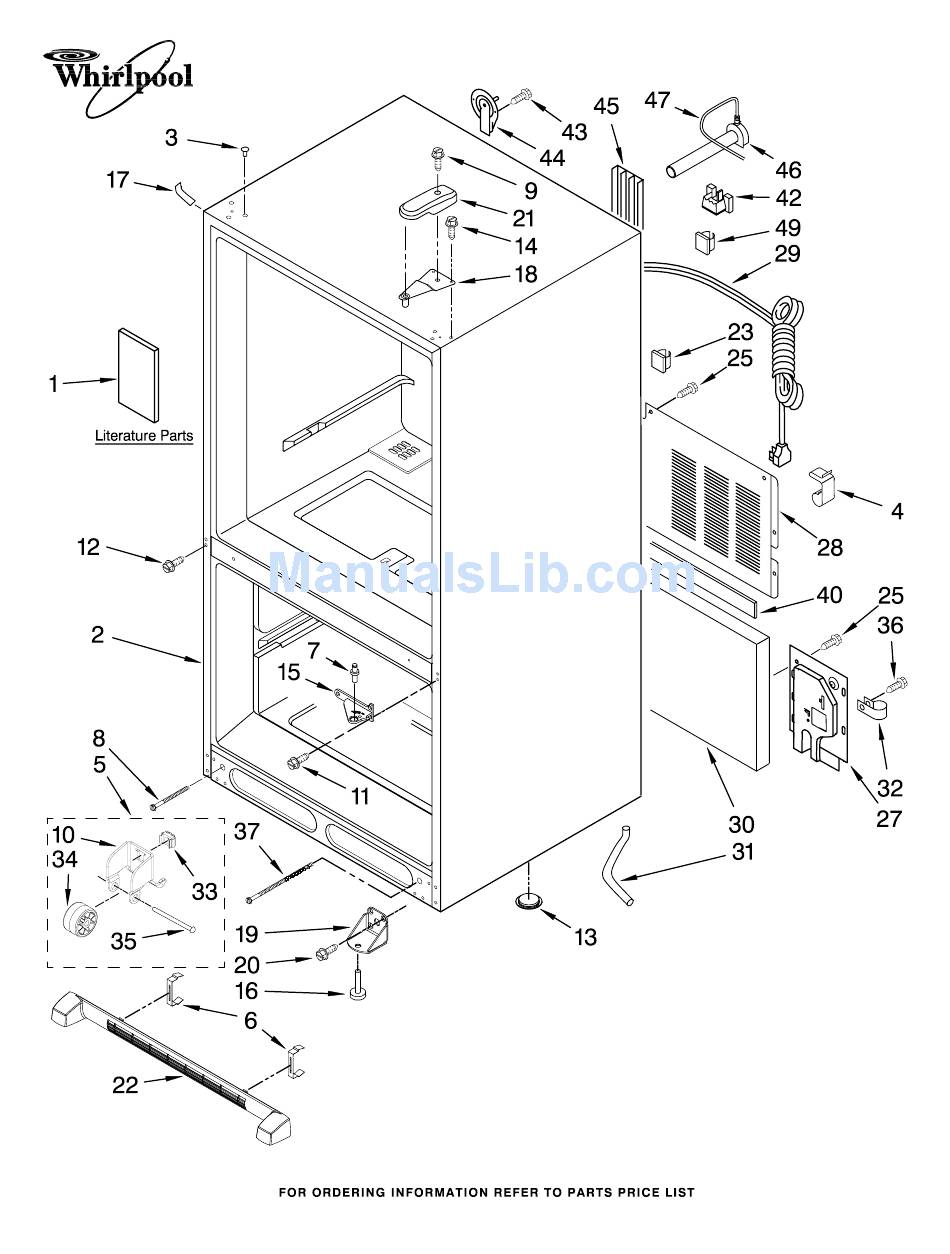

CABINET PARTS
REFRIGERATOR
For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00
(White)
(Black)
(Stainless Steel)
(Bisque)
3−09 Litho In U.S.A. (mat)(bay)
Part No. W10143391 Rev. B
1

Advertisement

loading

  Also See for Whirlpool GB2SHTXTB00

  Related Manuals for Whirlpool GB2SHTXTB00

  Summary of Contents for Whirlpool GB2SHTXTB00

  • Page 1 CABINET PARTS REFRIGERATOR For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 (White) (Black) (Stainless Steel) (Bisque) 3−09 Litho In U.S.A. (mat)(bay) Part No. W10143391 Rev. B...
  • Page 2: Cabinet Parts

    For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 Illus. Part DESCRIPTION Literature Parts 12828178 Owners Manual 12863067 Energy Tag 67004282 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 67001130 White 67001131 Black M0310738 Biscuit 67002816 Clip, Water Line 67002227 Roller Assembly...
  • Page 3: Freezer Liner Parts

    FREEZER LINER PARTS For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 (White) (Black) (Stainless Steel) (Bisque) W10143391...
  • Page 4 FREEZER LINER PARTS For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 (White) (Black) Illus. Part 67001291 Gasket, Foam 12002497 Gear (2) 67003905 Cover, Light 67004261 Shaft 8170839 Socket, Light 67004430 Gear (RH) 67006737 Screw A0282812 Bulb, Light 67001035 Housing, Frz. Light 67005872 Cover, Evaporator...
  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 (White) (Black) (Stainless Steel) (Bisque) W10143391...
  • Page 6 REFRIGERATOR LINER PARTS For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 (White) (Black) Illus. Part Y67003896 Bracket, Control 67005190 Overlay 67003898 Housing, 5 W10165748 Electronic Control C3680310 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2) 8170839 Socket, Light (2)
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 (White) (Black) (Stainless Steel) (Bisque) W10143391...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 (White) (Black) Illus. Part 67004777 White 67004775 Black 12658566S Stainless Steel 67004776 Bisque 67001130 White 67001131 Black 67003819 Door, Compartment 67001279 Tray, Dairy 67003777 Bin, Shelf (2) 67001130 White 67001131 Black...
  • Page 9: Unit Parts

    UNIT PARTS For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 (White) (Black) (Stainless Steel) (Bisque) W10143391...
  • Page 10 For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 Illus. Part DESCRIPTION 67006433 Screw 67004952 Blade, Fan 67005744 Basepan 67006433 Screw 67004954 Screw 12870501 Harness, Evap. Heater 67007175 Drain Pan 61004743 Grommet (3) 67001085 Evaporator Heater Capacitor (See Item #12) 67005560 Overload/Relay (Capacitor Incl.) 61003210 Gasket 67003426 Bi−Metal...
  • Page 11: Shelf Parts

    SHELF PARTS For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 (White) (Black) (Stainless Steel) (Bisque) W10143391...
  • Page 12 SHELF PARTS For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 (White) (Black) Illus. Part 67001317 Ladder, Side 67006400 Screw 67001073 Ladder, Center 67006360 Screw 10508506 Handle 12463302 Shelf, Fixed (3) 67006878 Glass (2) 67001056 Frame, Crisper 67005864 Slide, 67006400 Screw 67001059 Support,...
  • Page 13: Freezer Door Parts

    For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 Illus. Part DESCRIPTION Freezer Door (w/ Insulation) 67004783 White 67004781 Black 67007149 Stainless Steel 67004782 Bisque W10143391 FREEZER DOOR PARTS (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Handle 2319727W White 2319727B Black 2319727S Stainless Steel...
  • Page 14: Icemaker Parts

    For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 Illus. Part DESCRIPTION Mold & Heater (Not Available, Order D7824706Q) 67004028 Arm, Shutoff 95100−1 Cup, Fill 95101−1 Ejector 95102−1 Ice Stripper 95103−1 Support & Motor Assembly 95104−1 Retainer, Thermostat ICEMAKER PARTS (White) (Black) (Stainless Steel) Illus.
  • Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: GB2SHTXTQ00, GB2SHTXTB00, GB2SHTXTS00, GB2SHTXTT00 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392901 Biscuit PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350930 White 350939 Black 4392901 Biscuit Important: The spray paint is...

This manual is also suitable for:

Gb2shtxtq00Gb2shtxts00Gb2shtxtt00
