Installation
3.1
Preparing for Installation

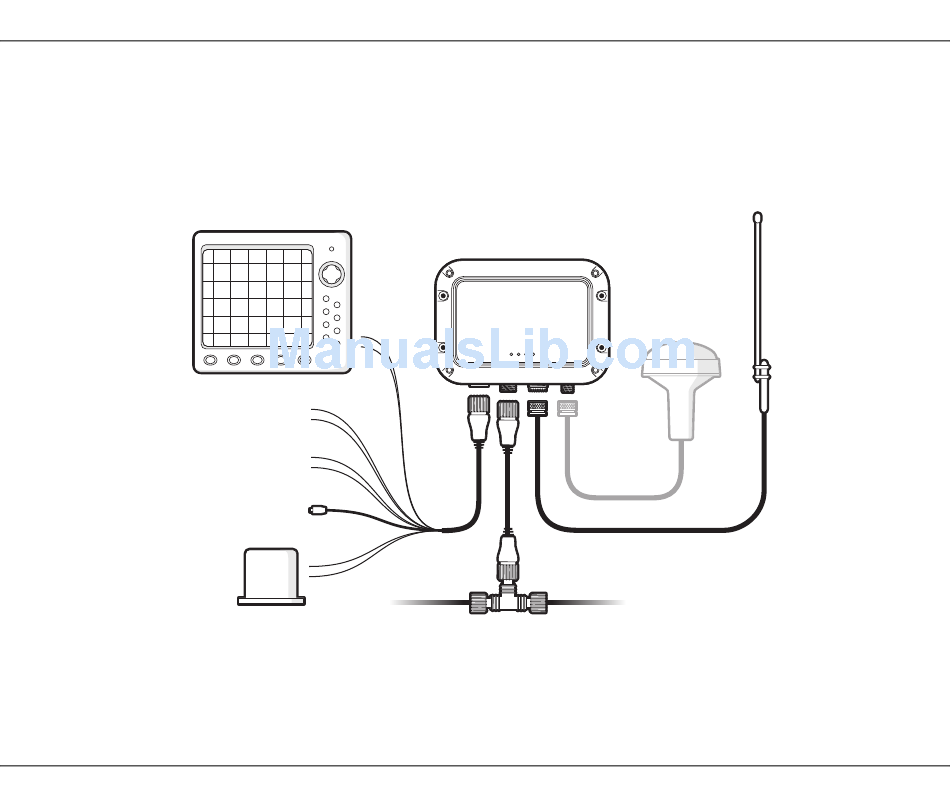

Figure 4 shows a typical installation configuration for the AIS transceiver. Please take the time to familiarise yourself with the system
elements and their connections prior to attempting installation.
Chartplotter
NMEA0183 device
Figure 4
Typical installation configuration
Power in
Switch
USB
GPS antenna
AIS Class B
transceiver
NMEA 2000
VHF antenna
(optional)
Installation
