Mounting
holes
Power and data

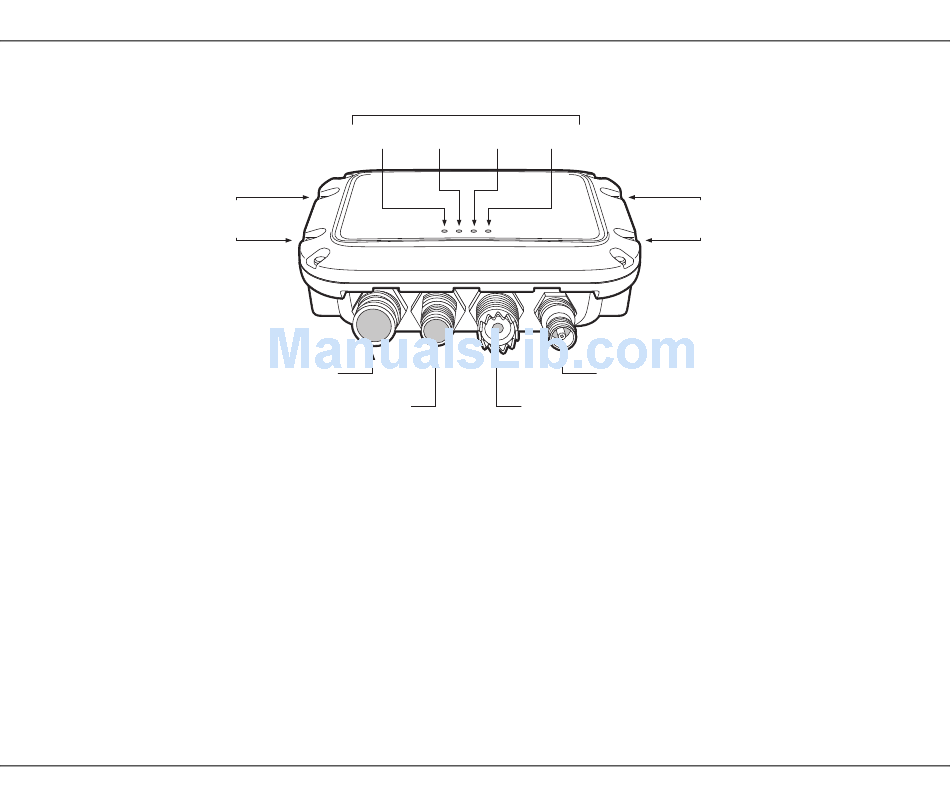

Figure 2
AIS transceiver overview
Electrical connections
The AIS transceiver has the following electrical connections:
•
Power supply
•
Two independent NMEA0183 data ports for connection to chart plotters and other NMEA0183 compatible equipment
•
USB for connection to a PC or Mac
•
External switch input for silent mode control
•
NMEA2000 port for connection to NMEA2000 compatible equipment
Indicator lights
Green Amber
Red
NMEA 2000
About your AIS class B transceiver
Blue
Mounting
holes
GPS antenna
VHF antenna
Page 8
