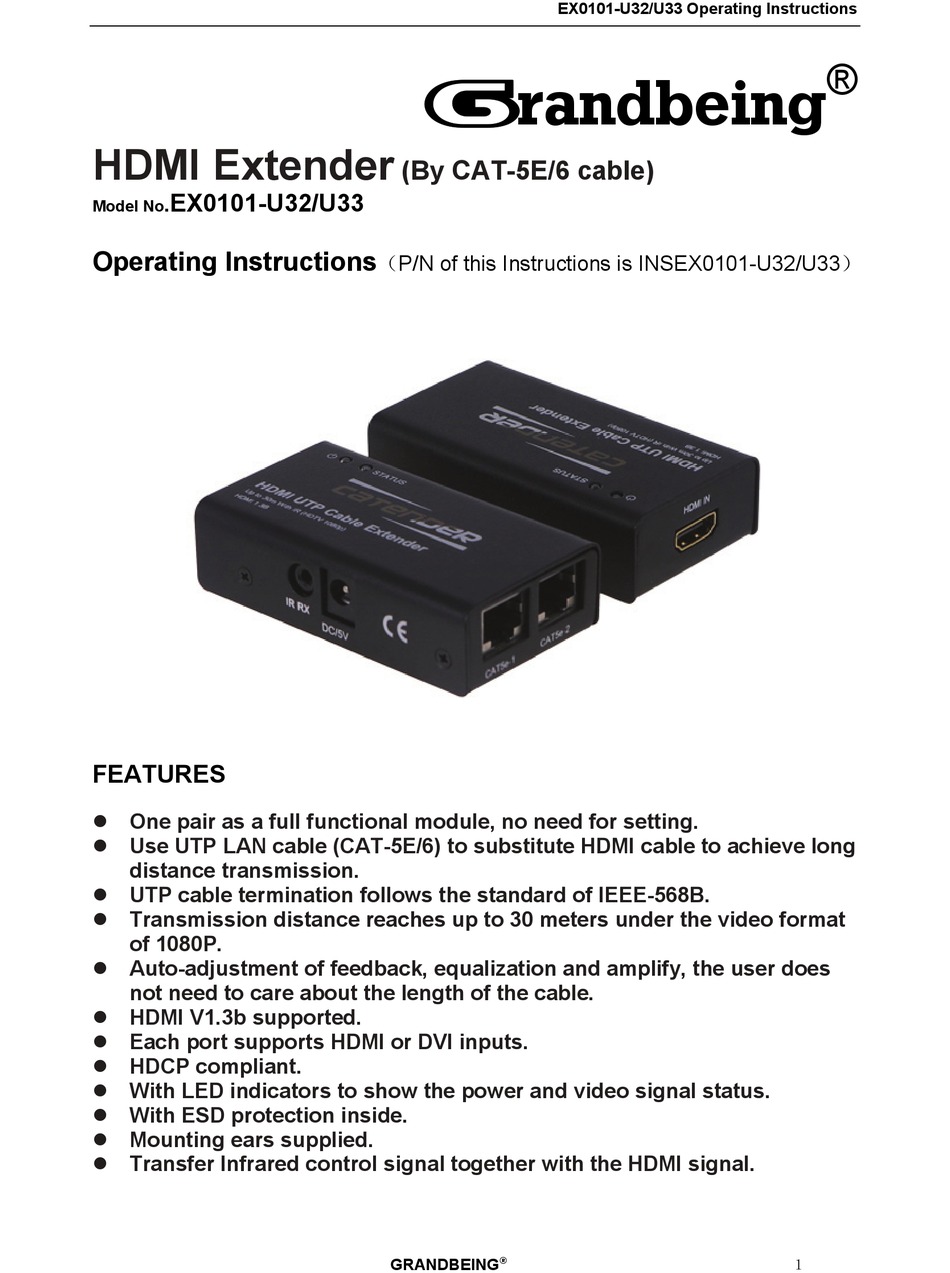

HDMI Extender
EX0101-U32/U33
.
Model No
Operating Instructions
FEATURES
One pair as a full functional module, no need for setting.
Use UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long
distance transmission.
UTP cable termination follows the standard of IEEE-568B.
Transmission distance reaches up to 30 meters under the video format
of 1080P.
Auto-adjustment of feedback, equalization and amplify, the user does
not need to care about the length of the cable.
HDMI V1.3b supported.
Each port supports HDMI or DVI inputs.
HDCP compliant.
With LED indicators to show the power and video signal status.
With ESD protection inside.
Mounting ears supplied.
Transfer Infrared control signal together with the HDMI signal.
Grandbeing
(By CAT-5E/6 cable)
（P/N of this Instructions is INSEX0101-U32/U33）
®
GRANDBEING
EX0101-U32/U33 Operating Instructions
®
１
Advertisement
Table of Contents
Related Manuals for Grandbeing EX0101-U32/U33
Summary of Contents for Grandbeing EX0101-U32/U33
- Page 1 EX0101-U32/U33 Operating Instructions ® Grandbeing HDMI Extender (By CAT-5E/6 cable) EX0101-U32/U33 Model No Operating Instructions （P/N of this Instructions is INSEX0101-U32/U33） FEATURES One pair as a full functional module, no need for setting. Use UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
- Page 2 EX0101-U32/U33 Operating Instructions Dear customer: Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. NOTICE We reserve the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
-
Page 3: Table Of Contents
However CAT-5E/6 cables are available everywhere and be processed easily by the user or installer. 2) By using EX0101-U32/U33, the transmission distance for 1080P reaches 30 meters, >30 meters for 1080I. For general HDMI cables, cables must be customized when the length over 10 meters. -
Page 4: Package Contents
EX0101-U32/U33 Operating Instructions 2. Main unit NO.2. P/N_EX0101-U33. 3. Mounting ears. 4. Operating Instructions. P/N_INSEX0101-U32/U33. 5. 5VDC power supply. 6. IR TX UNIT 7. IR RX UNIT PART NUMBER (Abbreviation as P/N) PANEL DESCRIPTIONS EX0101-U32 Front panel Rear panel Side HDMI input. - Page 5 EX0101-U32/U33 Operating Instructions Power input, 5VDC. EX0101-U33 Front panel Rear panel Side ® GRANDBEING ５...
-
Page 6: Connect And Operation
EX0101-U32/U33 Operating Instructions HDMI output. CAT-5E input1 and input2. Power input, 5VDC. IR RX INPUT Status of power input. When power input on, the LED inside lights Status of signal connection. When this works well, the LED inside lights.. CONNECT AND OPERATION... -
Page 7: Typical Application
EX0101-U32/U33 Operating Instructions Operating Temperature Range -5 to +35°C (-41 to +95 °F) 5 to 90 % RH (no condensation) Operating Humidity Range Input Video Signal 0.5-1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) DTV/HDTV; Video Format Supported... -
Page 8: Warranty
EX0101-U32/U33 Operating Instructions (d) The unit does not operate normally or exhibits a marked change in performance; (e) The unit has been dropped or the cabinet has been damaged. 2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating instructions. -
Page 9: Contact Information
EX0101-U32/U33 Operating Instructions neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or service by anyone other than a Factory Service center or other Authorized Servicer, or damage that is attributable to acts of God.
