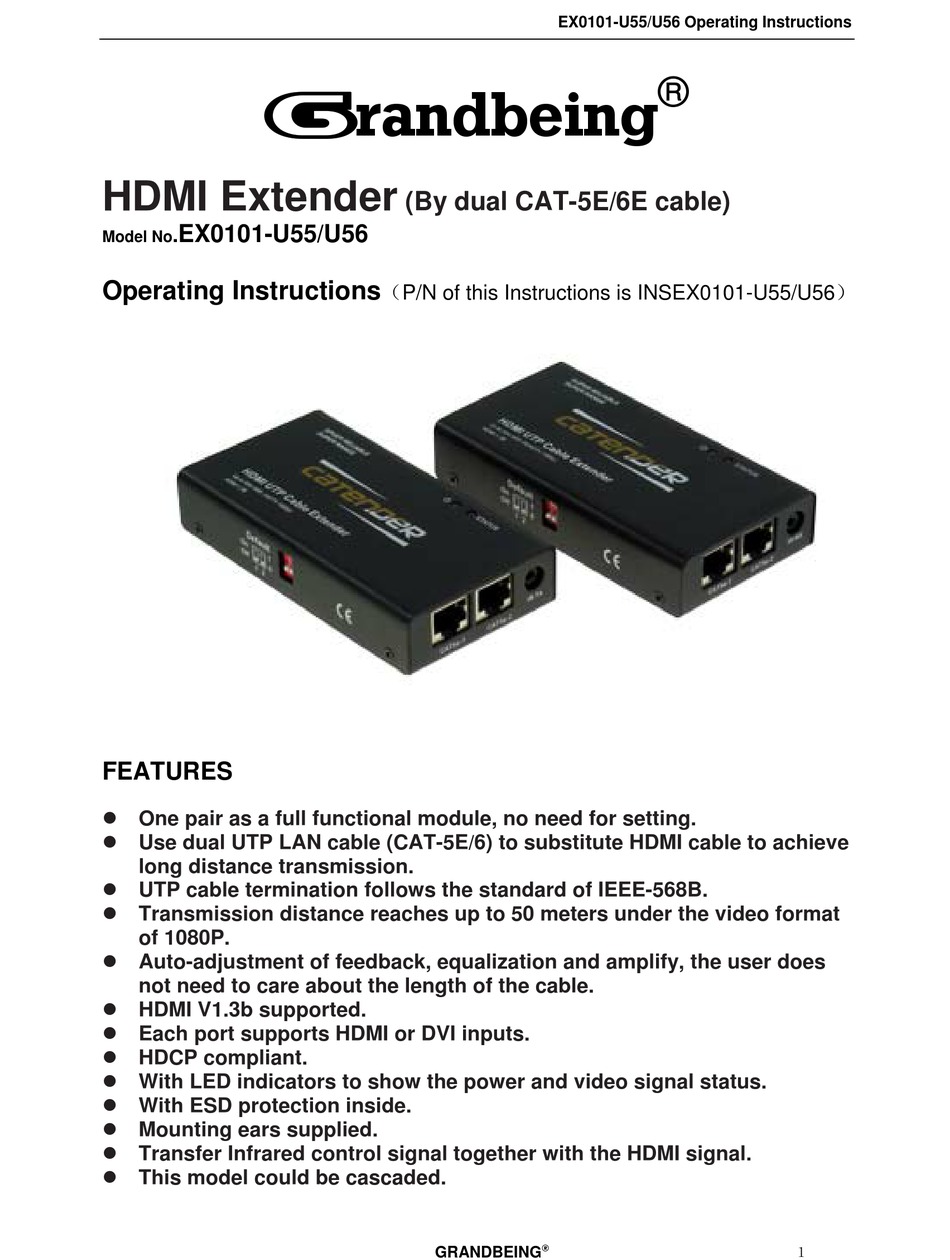

Grandbeing
HDMI Extender
EX0101-U55/U56
.
Model No
Operating Instructions
FEATURES
One pair as a full functional module, no need for setting.
Use dual UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve
long distance transmission.
UTP cable termination follows the standard of IEEE-568B.
Transmission distance reaches up to 50 meters under the video format
of 1080P.
Auto-adjustment of feedback, equalization and amplify, the user does
not need to care about the length of the cable.
HDMI V1.3b supported.
Each port supports HDMI or DVI inputs.
HDCP compliant.
With LED indicators to show the power and video signal status.
With ESD protection inside.
Mounting ears supplied.
Transfer Infrared control signal together with the HDMI signal.
This model could be cascaded.
EX0101-U55/U56 Operating Instructions
(By dual CAT-5E/6E cable)
（P/N of this Instructions is INSEX0101-U55/U56）
®
GRANDBEING
®
１
Advertisement
Table of Contents
Related Manuals for Grandbeing EX0101-U56
Summary of Contents for Grandbeing EX0101-U56
- Page 1 EX0101-U55/U56 Operating Instructions ® Grandbeing HDMI Extender (By dual CAT-5E/6E cable) EX0101-U55/U56 Model No Operating Instructions （P/N of this Instructions is INSEX0101-U55/U56） FEATURES One pair as a full functional module, no need for setting. Use dual UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
- Page 2 7) UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME. 8) PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED PARTICULARLY AT PLUGS. 9) ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE MANUFACTURER. 10) REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. ® ２ GRANDBEING...
-
Page 3: Table Of Contents
4) The IR system crtl back the source at the end of destination EX0101-U55/U56 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments. ® ３ GRANDBEING... -
Page 4: Package Contents
1. Main unit NO.1. P/N_EX0101-U55. 2. Main unit NO.2. P/N_EX0101-U56. 3. Mounting ears. 4. Operating Instructions. P/N_INSEX0101-U55/U56. 5. 5VDC power supply. 6. IR TX UNIT 7. IR RX UNIT PART NUMBER (Abbreviation as P/N) PANEL DESCRIPTIONS EX0101-U55 ® ４ GRANDBEING... - Page 5 CAT-5E output1 and output2. IR TX OUTPUT. Status of power input. When power input on, the LED inside lights Status of signal connection. When this works well, the LED inside lights EX0101-U56 Power input, 5VDC 。 HDMI output. DIP SWITCH.
-
Page 6: Connect And Operation
2) Connect two CAT-5E cables to both the outputs of EX0101-U55 and inputs of EX0101-U56. Please pay attention that the right connection of the two cables, CAT5e-1->CAT5e1, (The cables must follow the standard of EIA/TIA 568B ) 3) Connect the HDMI output into EX0101-U56. -
Page 7: Specification
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; ® ７ GRANDBEING... -
Page 8: Warranty
LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which ® ８ GRANDBEING... -
Page 9: Contact Information
Services Directory Thank you for your purchase. We appreciate your business. Please contact us with your question and comments. Grandbeing Technology Co., Ltd 6C, Jialitai Building, No. 6 Yanshan Road, Nanshan District Shenzhen , P.R. China Post Code:518067 Tel:86-755-26678449 Fax:86-755-26678549 Email:sales@grandbeing.com,...
