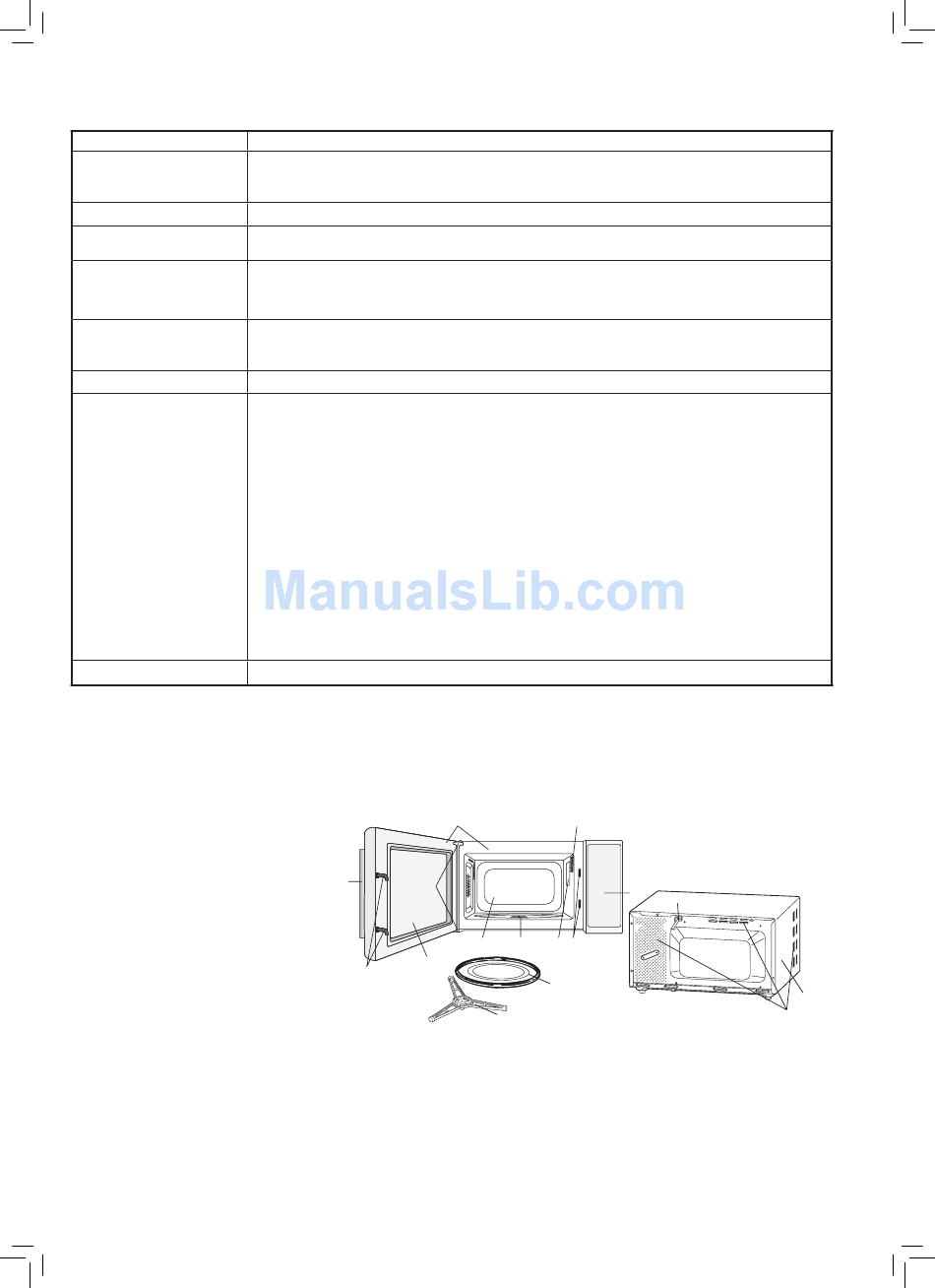

Product Specifications; Appearance View - Sharp R-27STM Service Manual

R-27STM
ITEM
Power Requirements
Power Consumption
Power Output
Outside Dimensions
Cooking Cavity Dimensions
Turntable diameter
Control Complement
Set Weight (Approx.)
OVEN
1. Door opening handle
2. Oven lamp
3. Door hinges
4. Door safety latches
5. Door
6. Door seals and sealing surfaces
7. Coupling
9. Control panel
10. Waveguide cover
11. Power supply cord
12. Ventilation openings
13. Outer case cabinet
14. Turntable
15. Roller stay
R27STM.indd 4

PRODUCT SPECIFICATIONS

230 - 240 Volts
50 Hertz
Single phase, 3 wire earthed
1.22 kW
800 watts nominal of RF microwave energy (IEC60705 Test Procedure)
Operating frequency 2450 MHz
Width 460 mm
Height 275 mm including foot
Depth 370 mm
Width 319 mm
NOTE: Internal capacity is calculated by measuring maximum width, depth
Height 215 mm
and height. Actual capacity for holding food is less.
Depth 336 mm
272 mm
Touch Control System
Timer (0 - 99 minutes 90 seconds)
Clock (1:00 - 12:59) or (0:00 - 23:59)
Microwave Power for Variable Cooking
Repetition Rate;
100P ....................................................... Full power throughout the cooking time
70P .........................................................approx. 70% of FULL Power
50P ....................................................... approx. 50% of FULL Power
30P ........................................................approx. 30% of FULL Power
10P .........................................................approx. 10% of FULL Power
EXPRESS COOK button
EXPRESS DEFROST button
POWER LEVEL button
STOP/CLEAR button
START/AUTO MINUTE button
TIME/WEIGHT knob
12 kg

APPEARANCE VIEW

1
3
5
4
DESCRIPTION
6 2
8 7 10 4
14
15
4
9
11
13
12
