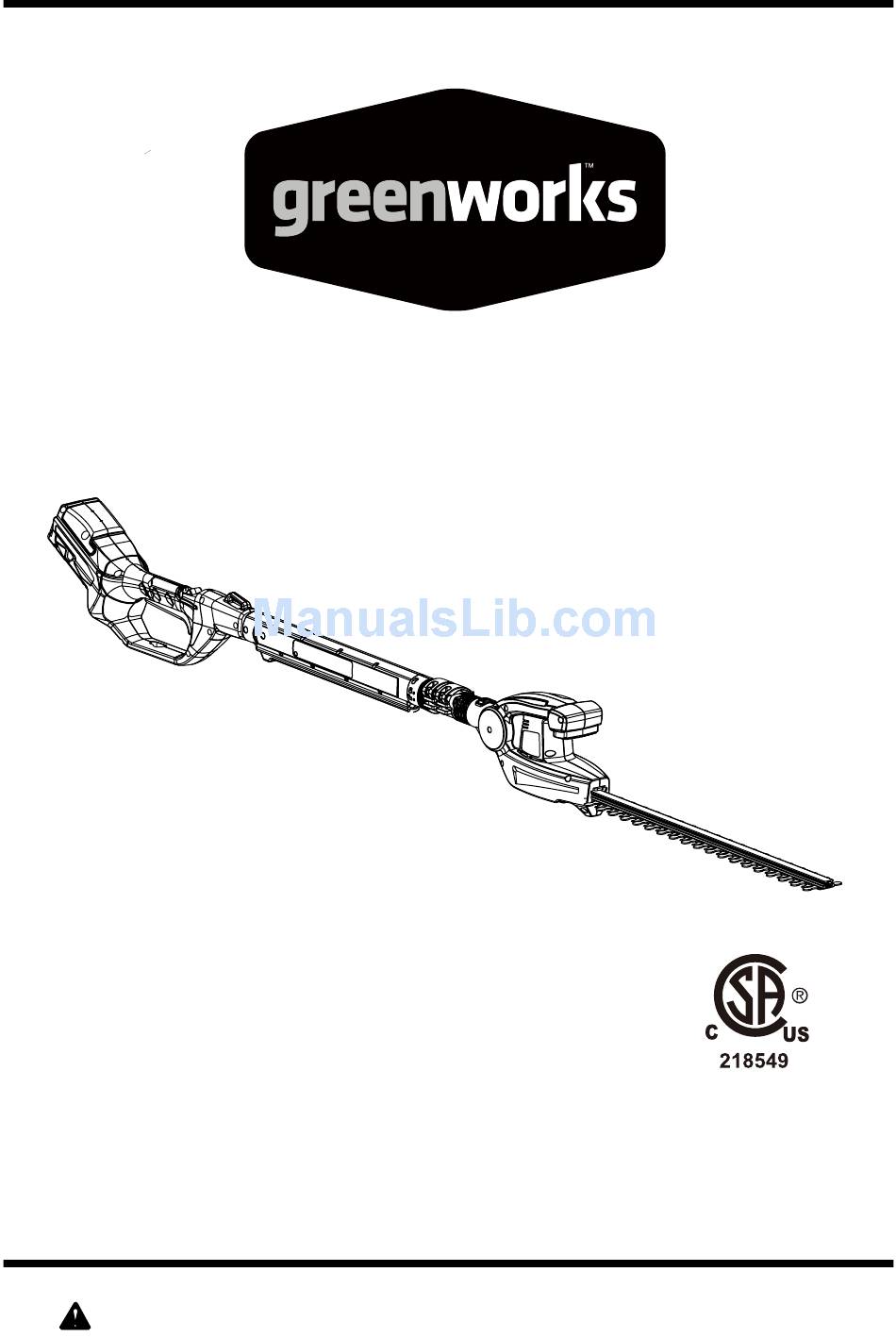

- Page 1 24V LITHIUM-ION POLE HEDGE TRIMMER 2300002 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Specifications ........................2 General safety rules ......................3-5 Symbols ..........................6-7 Know your hedge trimmer ....................8 Assembly instruction ....................... 9-10 Operation ........................11-16 Maintenance........................17-18 Environmentally safe battery disposal..................19 Troubleshooting........................20 Warranty ..........................21 Exploded View ........................22 Parts List.......................... -
Page 3: General Safety Rules
GENERAL SAfETy RULES W A R N I N g Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injurys. Save all warnings and instructions for future reference. The term “power tool”... - Page 4 GENERAL SAfETy RULES E. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts.
- Page 5 GENERAL SAfETy RULES HEdgE TRIMMER SAFETY WARNINgS • Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal injury. • Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving.
-
Page 6: Symbols
SyMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz frequency (cycles per second) -
Page 7: Symbols
SyMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIgNAL MEANINg dANgER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNINg Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. -
Page 8: Know Your Hedge Trimmer
KNOW yOUR HEDGE TRIMMER Fig. 1 Battery pack latch Lock button Battery pack Switch trigger Pivoting button. front trigger Blade support Blade Blade cover KNOW YOUR POLE HEdgE TRIMMER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. -
Page 9: Assembly Instruction
ASSEMBLy INSTRUCTION UNPACKINg This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. W A R N I N g Do not use this product if any parts on the Packing List are already assembled to your product when you unpack it. - Page 10 ASSEMBLy INSTRUCTION ASSEMBLINg THE TOOL (See Figure 2.) : • Align the arrow on the end of main handle with the arrow on the trimmer head. • Push the trimmer head onto the handle till the red line. • fasten the trimmer head cam lock. Once assembled correctly, the upper and lower tubes should not separate when pulled.
-
Page 11: Operation
Please call 1-888-909-6757 or contact an autho- rized service center for assistance. This product will accept Greenworks 24v lithium-ion battery packs. for complete charging instructions, refer to the Operator’s Manuals for your Greenworks battery pack and charger models. TO INSTALL/REMOVE BATTERY PACK (See Figure 3.) - Page 12 OPERATION Fig. 3 To remove: • Locate the latch on the back side of the battery pack and depress to release the battery pack from the power head. W A R N I N g Battery tools are always in operating condition. Therefore, hands should be free of the switch trigger and lock-out button when not in use.
- Page 13 OPERATION STARTINg ANd STOPPINg THE HEdgE TRIMMER (See Figure 4.) To start: • Remove the blade cover. • Push the front trigger. • Press and hold the lock-out button. • Depress the switch trigger. • Release the lock-out button. Continue to depress the switch trigger for extended operation.
- Page 14 OPERATION AdJUSTINg PIVOTINg HEAd (See Figure 5.) • Release the switch trigger and allow blades to come to a complete stop. • Remove the battery pack from the hedge trimmer. • Place the hedge trimmer on a sturdy flat surface. •...
- Page 15 OPERATION FASTEN ANd LOOSEN THE HANdEL CAM LOCK (See Figure 6.) • fasten and loosen the handle cam lock as the arrow show. Loosen Loosen fasten fasten Fig. 6 AdJUSTINg POLE LENgTH (See Figure 6.) • Rest the handle on the ground. •...
-
Page 16: Operation
OPERATION W A R N I N g Always keep both hands on the hedge trimmer handles. Never hold shrubs with one hand and operate the hedge trimmer with the other. Improper operation of the hedge trimmer could result in serious injury. CUTTINg TIPS d A N g E R Never cut near electric cords or lines. -
Page 17: Maintenance
MAINTENANCE W A R N I N g When servicing, use only identical replacement parts. Use of any other parts may create a haz- ard or cause product damage. W A R N I N g To avoid serious personal injury, always remove the battery pack from the product before in- specting, cleaning or performing any maintenance. -
Page 18: Maintenance
MAINTENANCE CLEANINg THE HEdgE TRIMMER • Remove the battery pack. • Slide the blade cover over the blade. • Clean dirt and debris from the body of the hedge trimmer, using a damp cloth with a mild detergent. NOTE: Do not use any strong detergents on the plastic housing or the handle. They can be damaged by certain aromatic oils such as pine and lemon, and by solvents such as kerosene. -
Page 19: Environmentally Safe Battery Disposal
ENVIRONMENTALLy SAfE BATTERy DISPOSAL The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N g All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 20: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure. To secure the battery pack, make sure when switch trigger the latches on the top of the battery pack is depressed. snap into place. Battery is not charged. Charge the battery pack according to the instructions included with your model. -
Page 21: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 22: Exploded View
EXPLODED VIEW... -
Page 23: Parts List
PARTS LIST ITEM NO. PART NO. dESCRIPTION 34108648 blade cover 33101652-1 blade assy. 33901648 spring 34105648 rotating handle 31101648 motor housing assy. 36101459-1 motor 34111459-1 gear box 33200451 gear 33307453 pressing board 33202453 shaft cover2 33902459 shaft cover3 33302453 small washer 33301453 big washer 33203161... - Page 24 NOTES...
- Page 25 NOTES...
- Page 26 NOTES...
- Page 27 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (01-17-14) Printed in China on 100% Recycled Paper...
