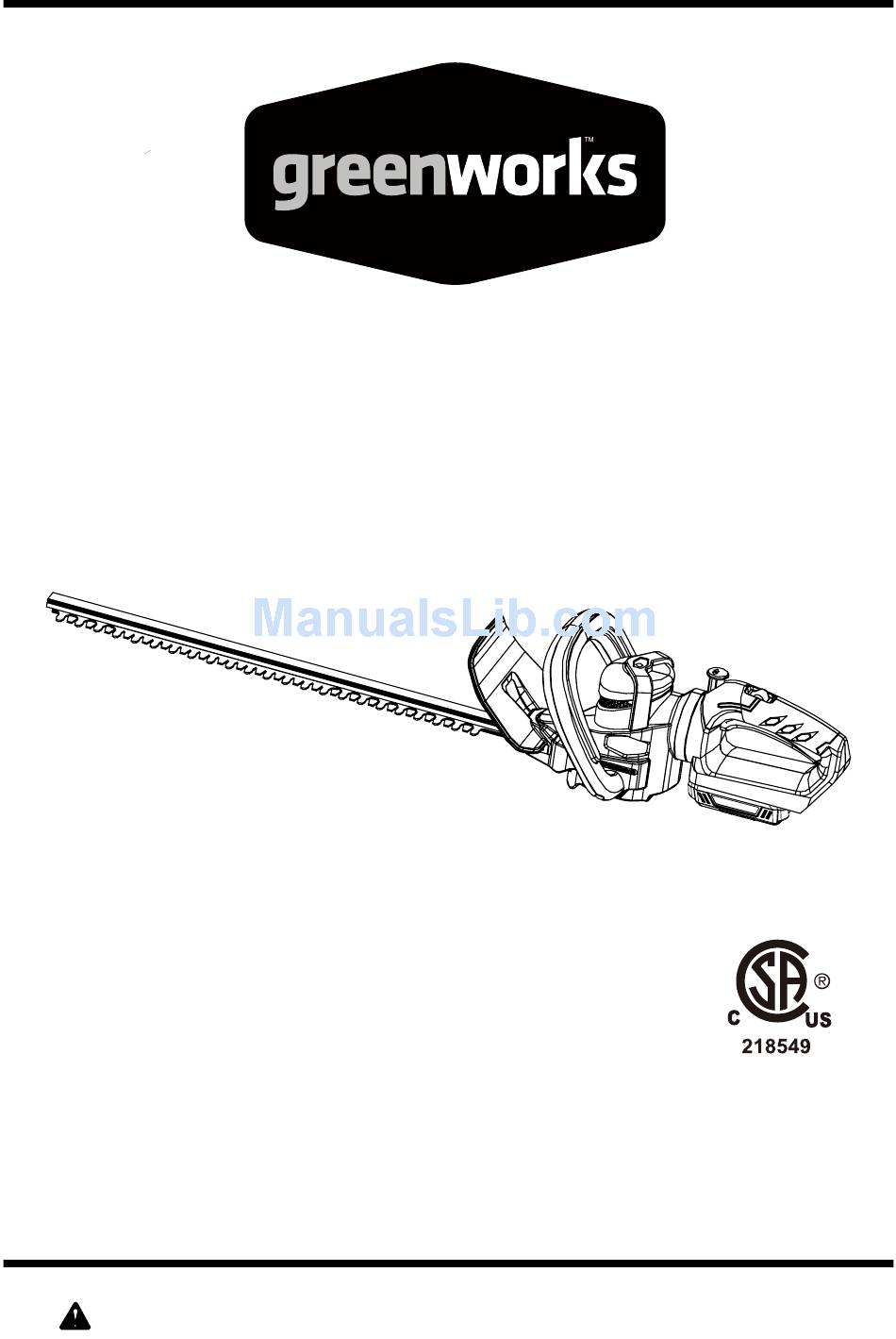

- Page 1 24V LITHIUM-ION CORDLESS HEDGE TRIMMER 22232 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 ........................2 Safety information ......................3-5 Symbols ..........................6-7 Know your 24v cordless hedge trimmer ................8 Assembly instruction ......................9-10 Operating instructions ....................11-12 Battery charger ........................13-14 Maintenance..........................15 Environmentally safe battery disposal..................16 Troubleshooting.........................17 Warranty ..........................18 Exploded View ........................19 Parts List.......................... -
Page 3: Safety Information
SAFETY INFORMATION W A R N I N G Read all safety warnings and all instructions. Failure to follow the warnings and instructions Save all warnings and instructions for future reference. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 SAFETY INFORMATION F. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. G. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 5: Safety Information
SAFETY INFORMATION HEDGE TRIMMER SAFETY WARNINGS • Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal injury. • Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. -
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) -
Page 7: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. -
Page 8: Know Your 24V Cordless Hedge Trimmer
KNOW YOUR 24V CORDLESS HEDGE TRIMMER Auxiliary Lock button handle for rotating Guard handle Lock out button Trigger Blade switch Battery pack Battery pack Lock button for latch rotating handle Fig. 1 KNOW YOUR HEDGE TRIMMER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. -
Page 9: Assembly Instruction
ASSEMBLY INSTRUCTION BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the hedger safety precautions, and follow the instructions in the Battery Charger section. To remove the battery (See Figure 2.) : 1. Slide the latch button on the battery pack down (1) and hold. The batte NOTE: a strong pull to remove. -
Page 10: Assembly Instruction
ASSEMBLY INSTRUCTION UNPACKING • This product requires no assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS ON/OFF SWITCHES (See Figure 3.) The hedge trimmer has one switch control and a lock-OFF button used together to prevent ac- cidental start-ups or injury. 1. Place one hand on the trigger handle (1). Place the other hand on the Auxiliary handle (4). 2. - Page 12 OPERATING INSTRUCTIONS USING THE ROTATING REAR HANDLE (See Figure 4.) 2. Make sure that you have released the trigger switch. 3. Press the lock button and begin turning the rear handle. Release the lock button and turn the handle 90 degrees to either side until it clicks into place and the button pops out. 4.
-
Page 13: Battery Charger
BATTERY CHARGER CHECKING BATTERY CAPACITY Press the battery capacity indicator (BCI) button. The lights will illuminate according to the batteries capacity level. See chart below: LIGHT METRE BCI BUTTON BATTERY METRE Lights Capacity 3 Green Lights The battery is at 80-100% capacity 2 Green Lights The battery is at 50-80% capacity 1 Green Light... - Page 14 BATTERY CHARGER When the red indictor flickers, pull out the battery from the charger and insert again within 2 NOTE: hours. If the indictor shows charging, that means the battery is good. After 2 hours, please pull out the battery and also pull out the AC power plug of the charger for 1 miniute, and then insert the AC power plug and the battery again.
-
Page 15: Maintenance
MA NTENAN E W A R N I N G • Do not use a damp cloth or detergent on the battery or battery charger. • Always remove the battery pack before cleaning, inspecting, or performing any maintenance on the hedge trimmer. Cleaning 1. -
Page 16: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N G environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency, or the local Environmental Protection Agency for information and lithium disposal. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure. To secure the battery pack, make sure when switch trigger the latches on the top of the battery pack is depressed. snap into place. Battery is not charged. Charge the battery pack according to the instructions included with your model. -
Page 18: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 19: Exploded View
EXPLODED VIEW... -
Page 20: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 34113453A Blade cover 311021647 Bare tool assembly 34101647 Guard 31103453-1 Auxiliary handle assembly 31108828 Battery 311011252 Charger... - Page 21 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (01-17-14) Printed in China on 100% Recycled Paper...
