1.3 Illustration



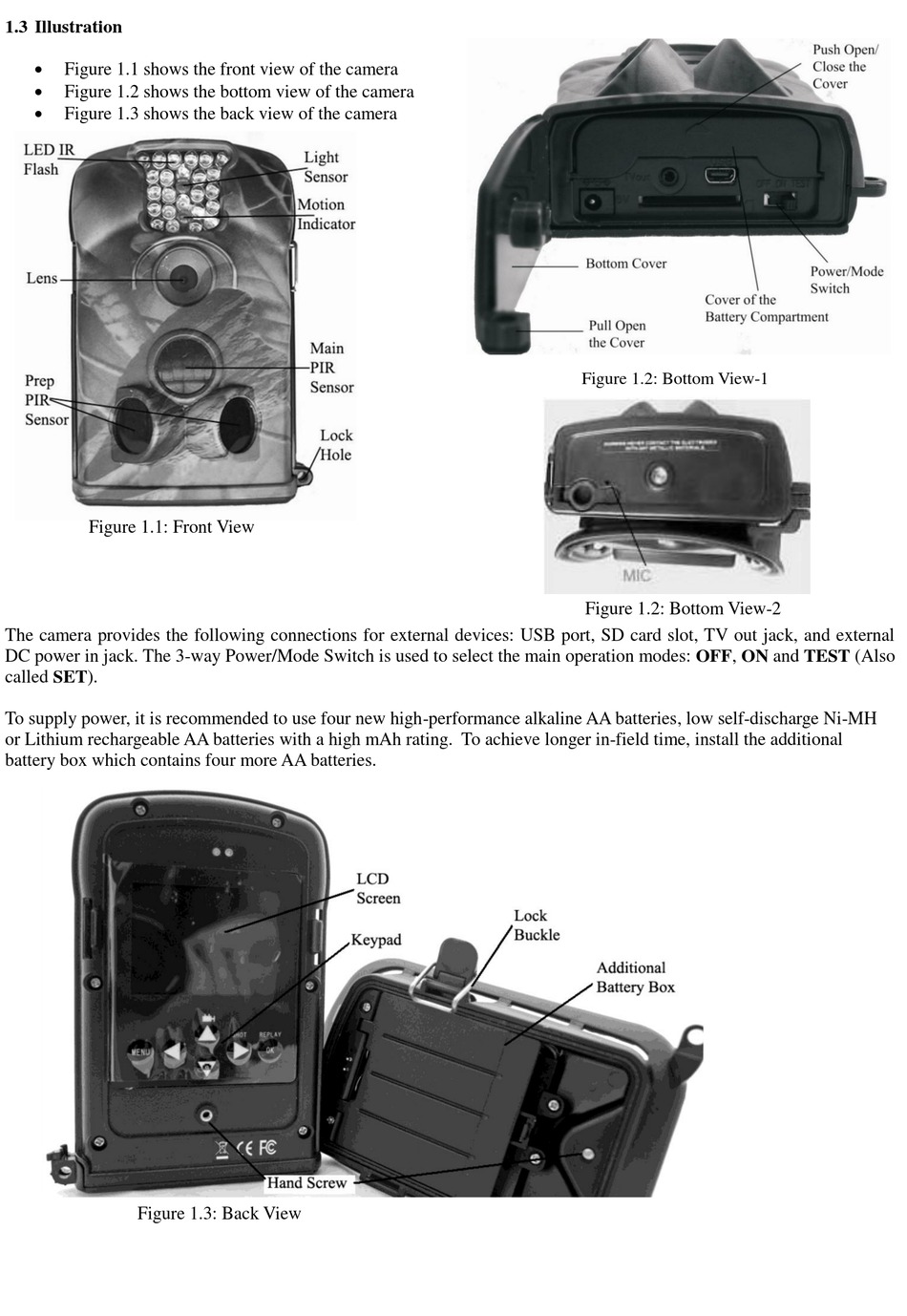

Figure 1.1 shows the front view of the camera

Figure 1.2 shows the bottom view of the camera

Figure 1.3 shows the back view of the camera
Figure 1.1: Front View
The camera provides the following connections for external devices: USB port, SD card slot, TV out jack, and external
DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST (Also
called SET).
To supply power, it is recommended to use four new high-performance alkaline AA batteries, low self-discharge Ni-MH
or Lithium rechargeable AA batteries with a high mAh rating. To achieve longer in-field time, install the additional
battery box which contains four more AA batteries.
Figure 1.3: Back View
Figure 1.2: Bottom View-1
Figure 1.2: Bottom View-2
