Instruction Manual
MANSECURE01 REV-A 23/07/13
VICTORIA (HEAD OFFICE)
244- 264 Greens Rd,
Dandenong South, 3175 Australia
Telephone: +61 (03) 9215 2700
Facsimile: +61 (03) 9215 2701
www.silvan.com.au
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144

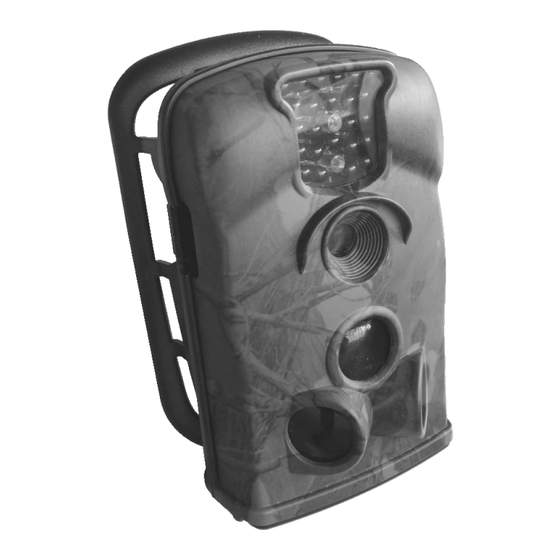

Motion Activated Security Camera
NEW ZEALAND
22 Sunshine Avenue
Te Rapa, Hamilton, 2001 New
Zealand
Telephone: +64 (07) 8496030
Fax: +64 (07) 8496070
www.silvannz.co.nz
Advertisement
Table of Contents
Related Manuals for Silvan Selecta Selecta MANSECURE01
Summary of Contents for Silvan Selecta Selecta MANSECURE01
-

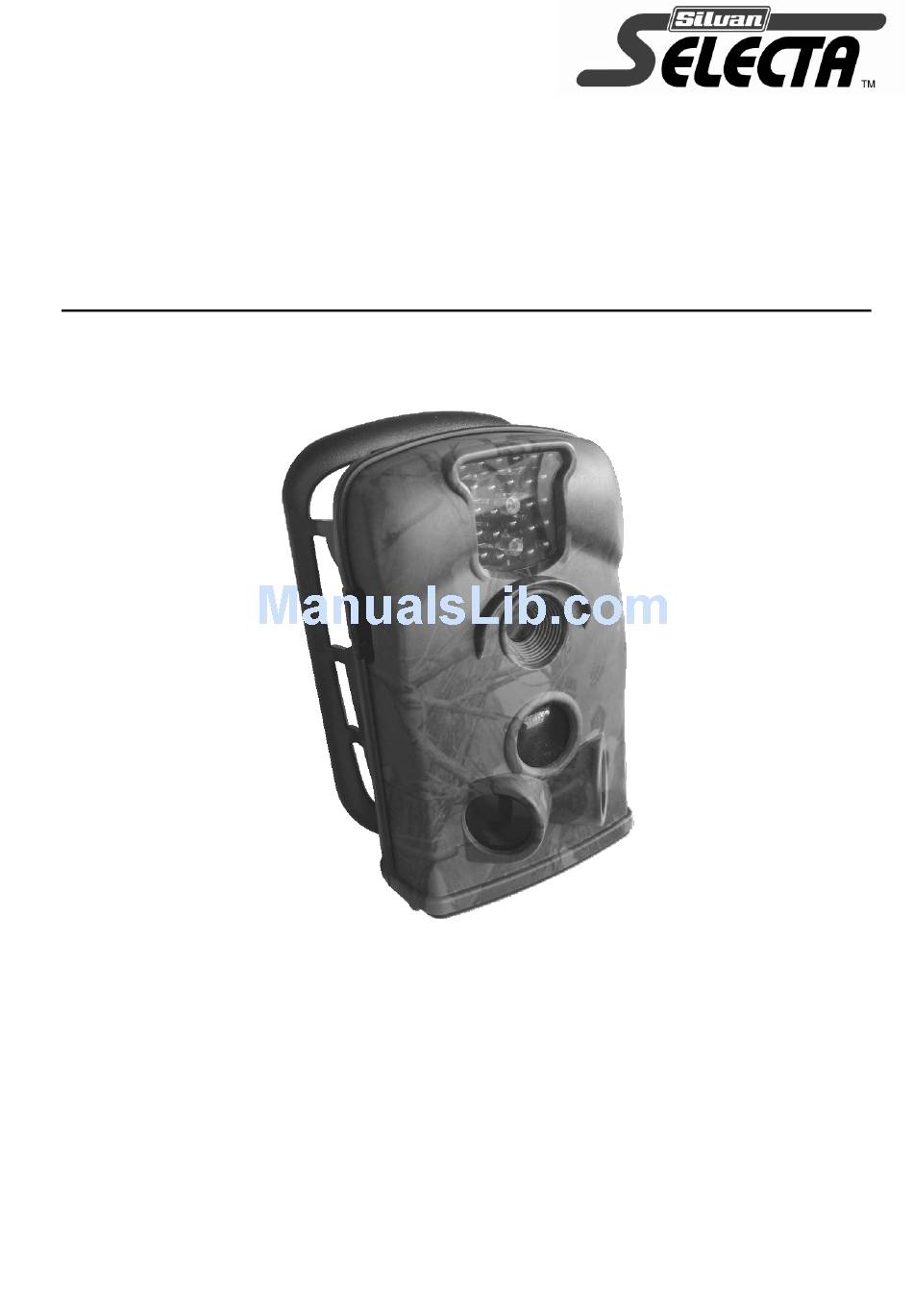

Page 1: Instruction Manual
Instruction Manual MANSECURE01 REV-A 23/07/13 Motion Activated Security Camera SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 VICTORIA (HEAD OFFICE) NEW ZEALAND 244- 264 Greens Rd, 22 Sunshine Avenue Dandenong South, 3175 Australia Te Rapa, Hamilton, 2001 New Telephone: +61 (03) 9215 2700... - Page 2 New Product Warranty Silvan Warranty Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
-
Page 3: Table Of Contents
Table of Contents General Information 1.1 Introduction 1.2 Application 1.3 Illustration Quick Start 2.1 Load Batteries 2.2 Insert SD Card 2.3 Enter Test Mode 2.4 Enter Live Mode Advanced Settings 3.1 Parameter Settings 3.2 File Format 3.3 Review Pictures or Video Appendix Technical Specifications Appendix Instruction on Installing Additional Battery Box General Information... -
Page 4: Illustration
1.3 Illustration Figure 1.1 shows the front view of the camera Figure 1.2 shows the bottom view of the camera Figure 1.3 shows the back view of the camera Figure 1.2: Bottom View-1 Figure 1.1: Front View Figure 1.2: Bottom View-2 The camera provides the following connections for external devices: USB port, SD card slot, TV out jack, and external DC power in jack. -
Page 5: Quick Start
Quick Start 2.1 Load Batteries Begin by loading the batteries. Please follow the instructions below. Open the bottom cover by pulling down the lock hole. Push the cover of the battery compartment and release. It will pop out. ... -
Page 6: Enter Test Mode
2.3 Enter Test mode Switch to the TEST position to enter the Test mode. In this mode you can take pictures or video clips like a regular digital camera, or enter the Menu to set up parameters. On the keypad there are four “shortcut” functional keys (see Figure 2-1) working as below: Figure 2.1 ... -
Page 7: Advanced Settings
If the moving object continually enters into the area of the main sensor, the camera takes pictures immediately, therefore catching the whole body of the game. This split-second process could be as short as 0.2 second. In the case set up situations where the object moves within the area of the prep (side) sensors, to avoid the camera being powered on constantly, the system is designed to work in the following way: If the game does not enter the area of the main sensor and therefore not trigger the main sensor, the camera will power off after 3 seconds. -
Page 8: File Format
Parameter Settings Description (Bold = default) Date Stamp On, Off Select On if you want the date & time imprinted in every photo. (affects still Note: When Date/Time is additional details are recorded photos only) including Serial No. and temperature. Timer Switch Off, On Select On if you only want the camera to work within a... - Page 9 Appendix: TECHNICAL SPECIFICATION Model Parameters 12 Mega Pixels Colour CMOS Image Sensor F=3.1; FOV=52°; Auto IR-Cut Lens 20 Meters / 65 Feet (Non-Visible Flash, no glow LEDs) IR Flash 48x35.69mm(2.36"); 16.7M Colour LCD Screen 6 Keys Operation Keypad SD Card (8MB ~16GB) Memory Compatibility 12MP=4000x3000;...
