Instruction Manual
MANSECURE120 REV A 23/07/13
WIDE ANGLE MOTION ACTIVATED SECURITY CAMERA
SECURE120
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144
VICTORIA (HEAD OFFICE)
NEW ZEALAND
Telephone: +61 (03) 9215 2700
Hamilton, New Zealand
Fax: +61 (03) 9215 2701
Telephone: +64 (07) 8496 033
www.silvan.com.au
Fax: +64 (07) 8496070
www.silvannz.co.nz
Advertisement
Table of Contents
Related Manuals for Silvan Selecta SECURE120
Summary of Contents for Silvan Selecta SECURE120
- Page 1 Instruction Manual MANSECURE120 REV A 23/07/13 WIDE ANGLE MOTION ACTIVATED SECURITY CAMERA SECURE120 SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 VICTORIA (HEAD OFFICE) NEW ZEALAND Telephone: +61 (03) 9215 2700 Hamilton, New Zealand Fax: +61 (03) 9215 2701 Telephone: +64 (07) 8496 033 www.silvan.com.au...
- Page 2 Warranty Silvan Warranty Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
-
Page 3: Table Of Contents
Note the SECURE120 doesn’t not feature MMS functionality (other premium models of this camera are made to feature MMS function and those cameras which have a SIM card slot in the camera). Some menu option refers to MMS however they will not affect the operation of the SECURE120. 1.2 Application: •... -
Page 4: General Information

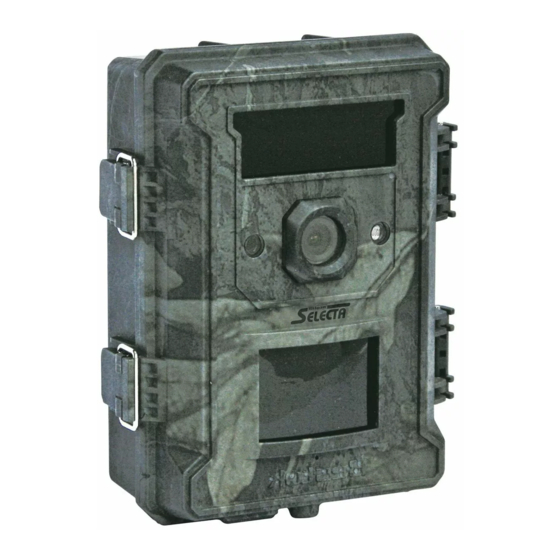

General Information (cont.) 1.3 Illustration: Figure 1: Front View Figure 2: Internal View... -
Page 5: Quick Start
General Information (cont.) The camera provides the following connections for external devices: USB port, SD card slot, TV out jack, and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST (Also called SET). Quick Start If you are not familiar with the operation of this camera, the following instructions will help you get a quick overview. -
Page 6: Enter Test Mode
Quick Start (cont.) 2.3 Enter Test Mode: Switch to the TEST position to enter the Test mode. In this mode you can take pictures or video clips like a regular digital camera or enter the Menu to set up parameters. On the keypad there are four “shortcut”... -
Page 7: Enter Live Mode
Quick Start (cont.) 2.4 Enter Live Mode: Switch to the ON position to enter the Live mode. The indicator LED will blink for several seconds. This period is for you to make the camera ready for the working condition: close the camera and battery box and lock it, mount the camera on a tree and walk away. - Page 8 Advance Setting (cont.) Photo Size 1MP, 3MP, Select desired resolution for still photos in mega pixels. Note: Lower (affects 5MP, 8MP, resolution setting allows for smaller file size and faster camera still 12MP reaction speed. High resolution photos require more time to record to photos available memory hence slower camera reaction speed...
-
Page 9: File Format
Advance Setting (cont.) Password Off, Set up a password to protect your camera from unauthorized users utilizing the camera Select On to assign a name to each camera you have. You can use the combination of 4 digits and/or letters. This helps multi-camera users identify the location when reviewing the photos. -
Page 10: Appendix Technical Specifications
Appendix: Technical Specifications MODEL PARAMETERS Image Sensor 12 Mega Pixels Colour CMOS Lens FOV=120°; Auto IR-Cut IR Flash 20 Meters / 65 Feet (Non-Visible Flash, no glow LEDs) LCD Screen 48x35.69mm (2.36"); 16.7M Colour Operation Keypad 6 Keys Memory SD Card (8MB ~32GB) Compatibility 12MP=4000x3000.
