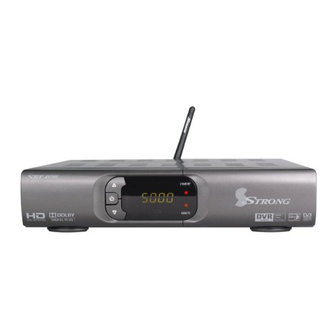

Strong SRT 4930L User Manual

High definition digital satellite televison receiver and recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
USER'S MANUAL
STRONG Australia PTY LTD.
60 WEDGEWOOD ROAD, HALLAM, VICTORIA 3803
PH: +61 3 8795 7990
FAX: +61 3 8795 7991
TECHNICAL SUPPORT: 1 800 820 030
STRONG & CO. ( FAR EAST ) , LTD.
High Definition Digital Satellite
P. O. BOX 85, YOKOHAMA, KANAGAWA-KEN
Televison Receiver
JAPAN 231-91
FAX : +81 45 651 1842
and Recorder
www.strong.com.au
tech@strong.com.au
Strong Technologies Pty Ltd., 2012

Advertisement

Table of Contents
loading

Related Manuals for Strong SRT 4930L

Summary of Contents for Strong SRT 4930L

  • Page 1 60 WEDGEWOOD ROAD, HALLAM, VICTORIA 3803 PH: +61 3 8795 7990 FAX: +61 3 8795 7991 TECHNICAL SUPPORT: 1 800 820 030 STRONG & CO. ( FAR EAST ) , LTD. High Definition Digital Satellite P. O. BOX 85, YOKOHAMA, KANAGAWA-KEN Televison Receiver...

  • Page 2: Table Of Contents

    Contents 1. Introduction ......................1 1.1 Overview 1.2 Main Features 2. Safety/Precautions ....................2 2.1 Safety 2.2 Precautions 2.3 Positioning 3. Points to Check before Use ................. 4 3.1 Accessories 4. Controls/Functions ....................5 4.1 Front Panel 4.2 Rear Panel 4.3 Remote controller 4.4 Front Display 5.

  • Page 3: Introduction

    Introduction Safety/Precautions 1.1 Overview 2.1 Safety This satellite receiver is designed for the reception of free-to-air and encrypted channels. Depending on your location, enjoy the rich choice of up to 10,000 different channels broadcasting a large range of programs: culture, sports, cinema, news, Be sure to read this user's manual before Do not touch the power cord with wet events, etc.

  • Page 4: Precautions

    2.2 Precautions Points to Check before Use When installing the unit 3.1 Accessories Install the unit horizontally. An uneven Do not put heavy items such as a TV installation may cause the unit to be set on the unit. That may damage The accessories below are included with this receiver: damaged.

  • Page 5: Controls/Functions

    4.2 Rear Panel Controls/Functions 4.1 Front Panel No. Name Connector Function LNB INPUT IEC 169-24 FEMALE IF input from LNB to digital tuner LOOP OUT IEC 169-24 FEMALE IF loop-through output from digital tuner VIDEO RCA cinch Composite video output Power : Switches the receiver between ‘Standby’...

  • Page 6: Remote Controller

    4.3 Remote controller 4.3 Remote controller POWER : To turn the receiver On/Off. Vol Up & Down : To change the volume level in non-menu mode. STAND BY : Just turn the receiver off. OK : To show the Channel List in non- TEXT : To show the teletext contents if menu mode and select an item or teletext is transmitted.

  • Page 7: How To Connect

    How to Connect Operation When Connecting the Receiver to a TV 6.1 Getting Started Connect the TV antenna to TV ANT IN After your receiver is powered on, proceed with installation as follows : Connect the Video and Audio of the TV to Video and Audio: connect the red 1) Menu Language Setting and white connectors to Audio R and Audio L, and the yellow connector to Turn on your TV and receiver.
  • Page 8 6.1 Getting Started 6.1 Getting Started Select the item that you want to edit and set its parameters as desired. <Dish Setting> - LNB Power : Select among ON/OFF/13V/18V. - LNB Type : Select among Single/Universal/OCS. - LNB Freq : Set the frequency of the LNB oscillator. - 22KHz : When not AUTO, set the signal path from LNB or switch by selecting a control signal among 0/22KHz.
  • Page 9 6.1 Getting Started 6.1 Getting Started 3) Satellite Scan Blind Scan <Figure 6.1.10> Select the satellites you want to search by pressing the button on the remote. Through this function, the receiver searches for all the available channels and saves them in memory.
  • Page 10 6.1 Getting Started 6.1 Getting Started 3) Channel Selection Package Identifier (PID) Scan <Figure 6.1.12> Select a transponder. You can use the keys to navigate between channels to select desired channels. To change a transponder’s information (Frequency, Symbol Rate), use the NUMERIC buttons.
  • Page 11 6.1 Getting Started 6.1 Getting Started 5) Other Functions of the Remote Control ZOOM By pressing the button you can zoom in video. Volume Control By pressing the button and you can zoom in on sections of video on FREEZE Press to adjust the volume while watching a program Freeze <Figure 6.1.14>...

  • Page 12: System Setting

    5, 10 or 15 minutes. Note : Lead In and Lead Out Times can be set on your SRT 4930L to apply to all Timer recordings. Lead In and Lead Out Times add specified amounts of time to the beginning and the end of Timer recordings so you don't miss the beginning or end of recorded programs.
  • Page 13 6.2 System Setting 6.2 System Setting 2) A/V Output Settings 3) On Screen Display Settings This menu lets you specify the audio and video output settings of your receiver <Figure Using this menu, you can select the menu language, use recall list and the duration 6.2.2>...
  • Page 14 6.2 System Setting 6.2 System Setting 5) Database Reset <Figure 6.2.5> 4) Security Settings This section allows you to reset the receiver to the factory settings. To prevent unauthorized access to classified programming, you can set a personal PIN - Delete Radio Channels : Erase all radio channels in the database. number for your receiver.
  • Page 15 2. Connect an Ethernet cable or wireless USB dongle from your SRT 4930L to your network port. - WiFi Setting : Once you have selected the wireless network you wish to connect to in the WiFi Wizard press the button to access the WiFi Setting menu.

  • Page 16: Channels

    6.2 System Setting 6.3 Channels c) If your Network does not support DHCP, the IP Address must be entered manually 1) Setting Favorite Channels (Static IP). EG. If your computers IP is 192.168.168.114, you can allocate the unit an IP This section allows you to select up to 16 groups of favorite channels in either TV or of 192.168.168 any other number not used on your network.
  • Page 17 6.3 Channels 6.3 Channels 3) Move Channels 5) Skip Channels By navigating through this section you can change the channel sequence. This feature skips a set channel when using the buttons to navigate channels. Choose the channel list by pressing the button, use the cursor keys to select the desired options.

  • Page 18: Electronic Program Guide

    To Record a selected program press the button (Refer to the ‘How To Record on your STRONG SRT 4930L Digital Video Recorder section for recording instructions via the EPG To Reserve a program for viewing, select the program by pressing the button.

  • Page 19: Entertainment

    6.5 Entertainment 6.5 Entertainment 1) YOUTUBE Recorded radio programs can be accessed via the Media Manager menu under : To select Youtube feature. file manager and selecting Music. : To play desired clip. Search Radio channel by Key word or Genre. Allows you to set search parameters by Category.
  • Page 20 6.5 Entertainment 6.5 Entertainment 4) MAP Press the button on the remote control to display the virtual keyboard on the screen. Using the arrow buttons you can navigate around the screen and Searching the MAP for City. around the virtual keyboard. Press button to begin search.
  • Page 21 6.5 Entertainment 6.5 Entertainment 7) Twitter The SRT4930L has an inbuilt Twitter app. As in the web browser you can navigate your Twitter page by either connecting and external USB wireless keyboard and mouse or via your iPhone/iPad or Android device. For instructions on how to turn your handheld device into a remote control and keyboard please refer to the separate instructions supplied titiled, Remote Apps for SRT4930L.

  • Page 22: Media Manager

    - EXT3 : EXT3 is a format used with the Linux operating system which the SRT 4930L runs on. We do not recommend that you format storage devices in this format type if you wish to connect the storage device to a PC.
  • Page 23 6.6 Media Manager 6.6 Media Manager The File Manager menu gives you access to all Media files you have stored on any external storage devices you have connected to your SRT4930L. To select the storage device you wish to access press the button.
  • Page 24 Using the GROUP button select MOVIE. Select the video file you want to play using the in the file list. The iShare feature of the SRT 4930L allows you to stream, view and access content from Apple and Android mobile devices. Press the button to begin playback of the selected video file.

  • Page 25: System Information

    23. There are 4 ways to record TV programs on your STRONG SRT 4930L: You can expand the storage capacity of your STRONG SRT 4930L by connecting an external HDD via the front or rear USB ports Before connecting the external HDD you will need to format the drive.
  • Page 26 Press Lead In and Lead Out Times can be set on your SRT 4930L to apply to all Timer recordings. Use the button to highlight the program name section of the EPG menu.
  • Page 27 6.8 DVR 6.8 DVR 3) Playing Recorded TV programs: Skip FWD & BCK You can skip forwards or backwards through a file by pressing the SKIP FWD & SKIP To access any programs you have recorded press the button on your remote BCK buttons.
  • Page 28 - File Cut Feature The file name will be highlighted. Now press the button to bring up a virtual key The SRT 4930L allows you to cut sections out of recorded programs. board. While playing back a recorded program press the button twice.

  • Page 29: Media

    Your SRT 4930L will record the program to a buffer for the default time you have set in the Please note as there are many variations of file types and various audio codecs menu...

  • Page 30: Pip Function(Picture In Picture)

    6.10 PIP Function(Picture in Picture) Troubleshooting PIP is the feature where one program (channel) is displayed on the main screen at the same time as another program (channel) is displayed in a smaller inset window To activate the PIP function press the PIP button There may be various reasons for the abnormal operation of the unit.

  • Page 31: Specifications

    Specifications Smart Card Reader 2 Slot Conditional Access System capabilities Fully DVB compliant Interface Connector IEC 169-24, female satellite Power consumption max 30W Power supply LNB/Tuner input Frequency range 950MHz ~ 2150MHz Supply voltage AC 90V ~ 250V Signal level -65dBm ~ -25dBm Supply frequency 50Hz ~ 60Hz...
  • Page 32 60 WEDGEWOOD ROAD, HALLAM, VICTORIA 3803 PH: +61 3 8795 7990 FAX: +61 3 8795 7991 TECHNICAL SUPPORT: 1 800 820 030 STRONG & CO. ( FAR EAST ) , LTD. P. O. BOX 85, YOKOHAMA, KANAGAWA-KEN JAPAN 231-91 FAX : +81 45 651 1842 www.strong.com.au...
