Whirlpool 4PLGC8647JQ0 Parts List

Whirlpool 29" gas dryer top and console parts
Hide thumbs

Advertisement

Quick Links

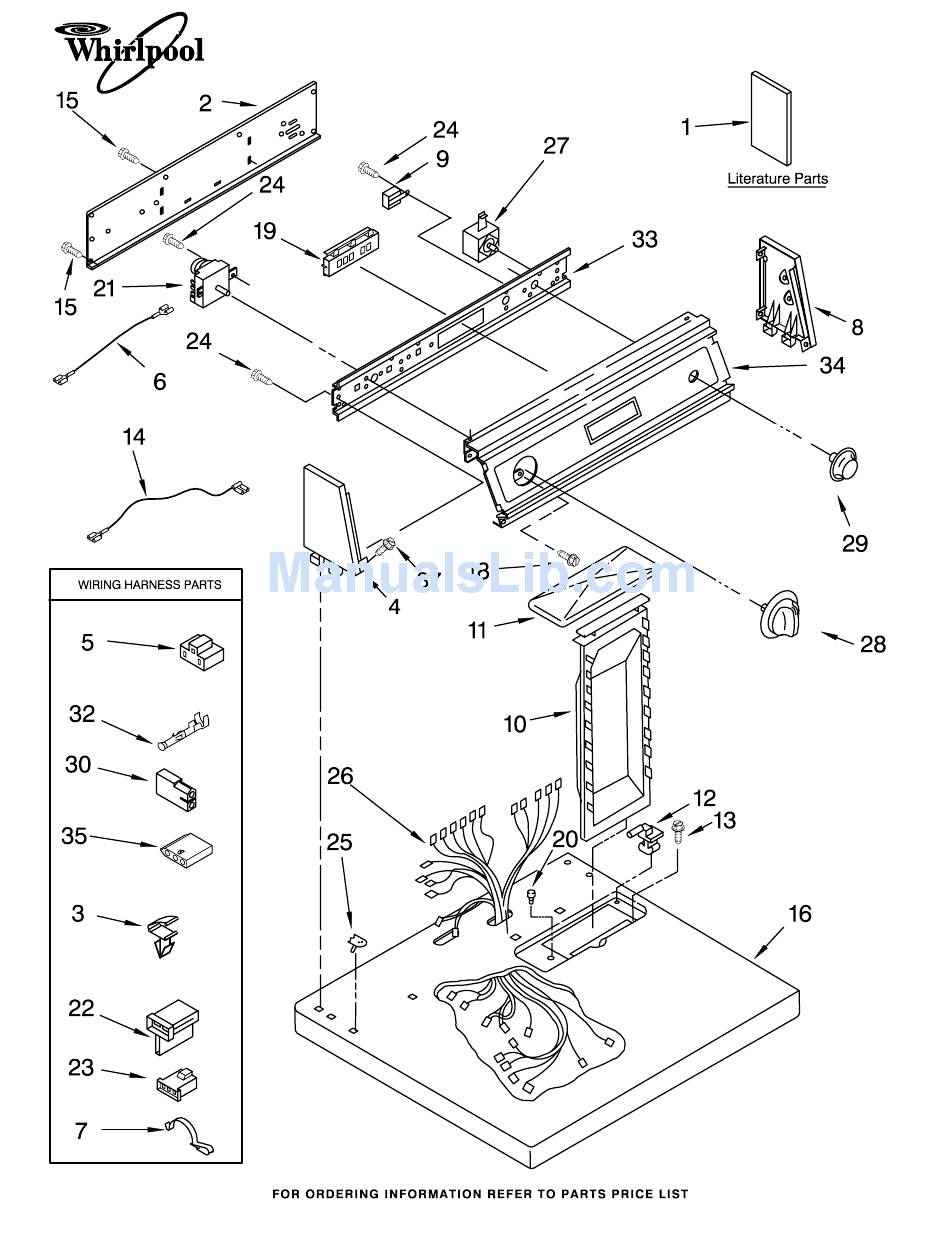

TOP AND CONSOLE PARTS
29"GAS DRYER
For Models: 4PLGC8647JQ0, 4PLGC8647JT0
(Designer White)
(Biscuit)
Part No. 4377948 Rev. B
10−02 Litho in U.S.A. (djc)
1

Advertisement

loading

  Summary of Contents for Whirlpool 4PLGC8647JQ0

  • Page 1 TOP AND CONSOLE PARTS 29"GAS DRYER For Models: 4PLGC8647JQ0, 4PLGC8647JT0 (Designer White) (Biscuit) Part No. 4377948 Rev. B 10−02 Litho in U.S.A. (djc)
  • Page 2 TOP AND CONSOLE PARTS For Models: 4PLGC8647JQ0, 4PLGC8647JT0 (Designer White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Cap, End (R.H.) 3403499 Connector, Literature Parts 8271359 White 2−Position LIT8318359 Guide, Use & Care 8271362 Biscuit (Gas Valve) LIT8533211 Wiring Diagram...
  • Page 3: Cabinet Parts

    CABINET PARTS For Models: 4PLGC8647JQ0, 4PLGC8647JT0 (Designer White) (Biscuit) 4377948...
  • Page 4 CABINET PARTS For Models: 4PLGC8647JQ0, 4PLGC8647JT0 (Designer White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3400500 Bolt, 5/16−18 x 3/4 98234 Clip, Ground (2) 697776 Screw, 10−32 x 5/8 690363 Lock, Front Top (2) 685011 Pulley, 60 Hz.
  • Page 5 BULKHEAD PARTS For Models: 4PLGC8647JQ0, 4PLGC8647JT0 (Designer White) (Biscuit) 4377948...
  • Page 6 BULKHEAD PARTS For Models: 4PLGC8647JQ0, 4PLGC8647JT0 (Designer White) (Biscuit) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 280010 Kit, Thermal Cut−Off (Includes Illus. 15) 3392519 Fuse, Thermal...
  • Page 7: Burner Assembly

    3402844 BURNER ASSEMBLY For Models: 4PLGC8647JQ0, 4PLGC8647JT0 (Designer White) (Biscuit) USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES BA−141 4377948...
  • Page 8 3402844 BURNER ASSEMBLY For Models: 4PLGC8647JQ0, 4PLGC8647JT0 (Designer White) (Biscuit) USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES Illus. Part DESCRIPTION 3402844 Burner Assembly 60 Hz.
