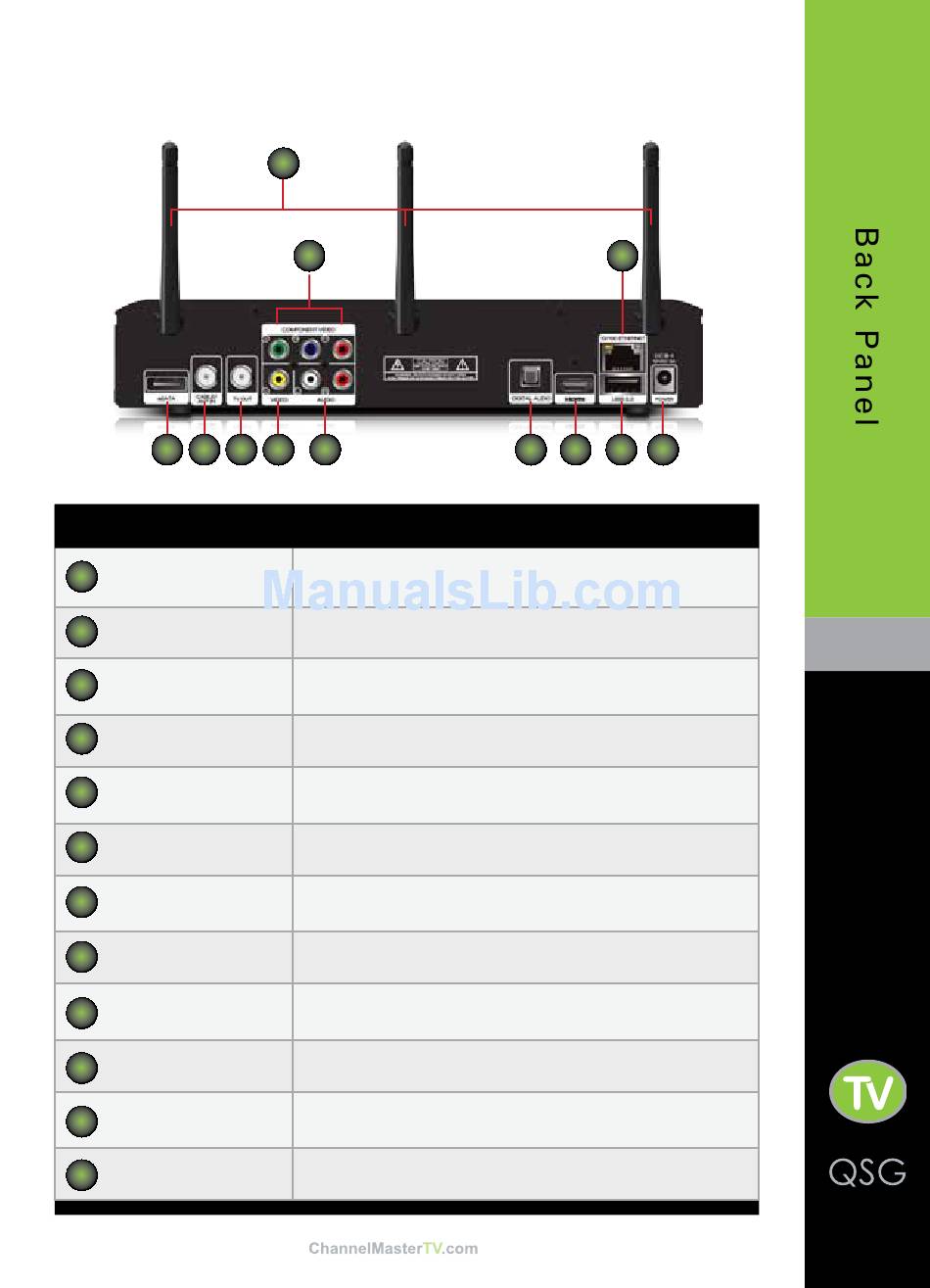

Back Panel - Channel Master CM-7400 Quick Start Manual

1 2 3
Name
1
eSATA
2
CABLE/ANT IN
3
TV OUT
4
WI-FI
5
VIDEO
6
COMPONENT VIDEO
7
AUDIO
8
DIGITAL AUDIO
9
HDMI
10
10/100 ETHERNET
11
USB 2.0
12
POWER IN

Back Panel

4
6
5 7
Description
External Serial ATA Connector (May support future
upgrades).
For Clear QAM Cable TV Source and ATSC Antenna.
Connection to RF TV Output.
Wi-Fi antennas for extended range and coverage.
Composite Video (Supports SD Video).
Component Video Output (y, Pb, Pr) (Supports HD
Video).
Stereo Audio Output (Left / Right).
Digital Audio Output - Optical Connection (Supports 5.1
Surround Sound).
HDMI Output (Supports HD Video and Multi-Channel
Audio).
Ethernet Port.
USB Connector.
Power connection to AC adapter.
10
8 9 11 12
7
