Front Panel - Channel Master CM-7400 Quick Start Manual

Name
1
2
3
4
5
6
7
6

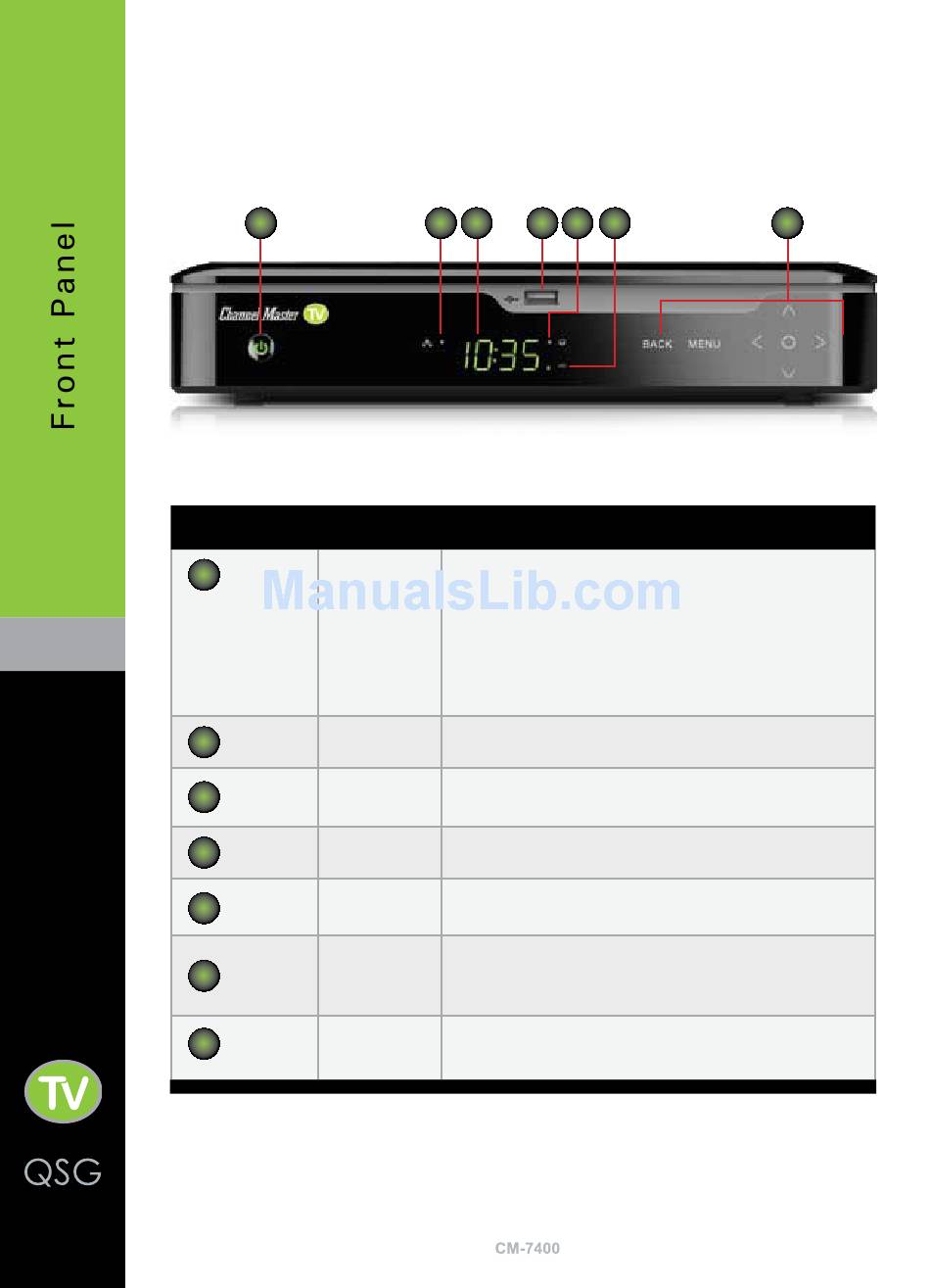

Front Panel

1
Function
POWER Button
LINK Status LED
CLOCK 4-Digit Clock
RECORD Status LED
HD Status LED
7-WAy
Capacitive
NAVIGATION
Touch Panel
MENU
USB 2.0
USB 2.0
Connector
2 3 7 4 5
Description
Solid Green indicates the unit is on.
Solid Red indicates the unit is in standby mode.
Flashing Green light indicates the unit is starting up.
Press button once to put unit in standby mode,
press again to resume.
To restart the device, press and hold for at least 5
seconds or longer.
Green dot indicates that Ethernet or Wi-Fi network
connection is active.
Clock displays current time, may not display time
during restart process.
Green dot indicates a TV program is currently
recording.
Green dot indicates current program is playing in
HD (720p or higher) resolution.
Use Back, Menu, OK and Directional buttons to
help with navigating the user interface without a
remote control.
To connect USB devices such as USB Flash Drive,
External USB Hard Drive.
6
