Network And Configuration Section; The Dip Switch Features - Lab.gruppen FP+ Series Operation Manual

6 QUICK GUIDE OVERVIEW

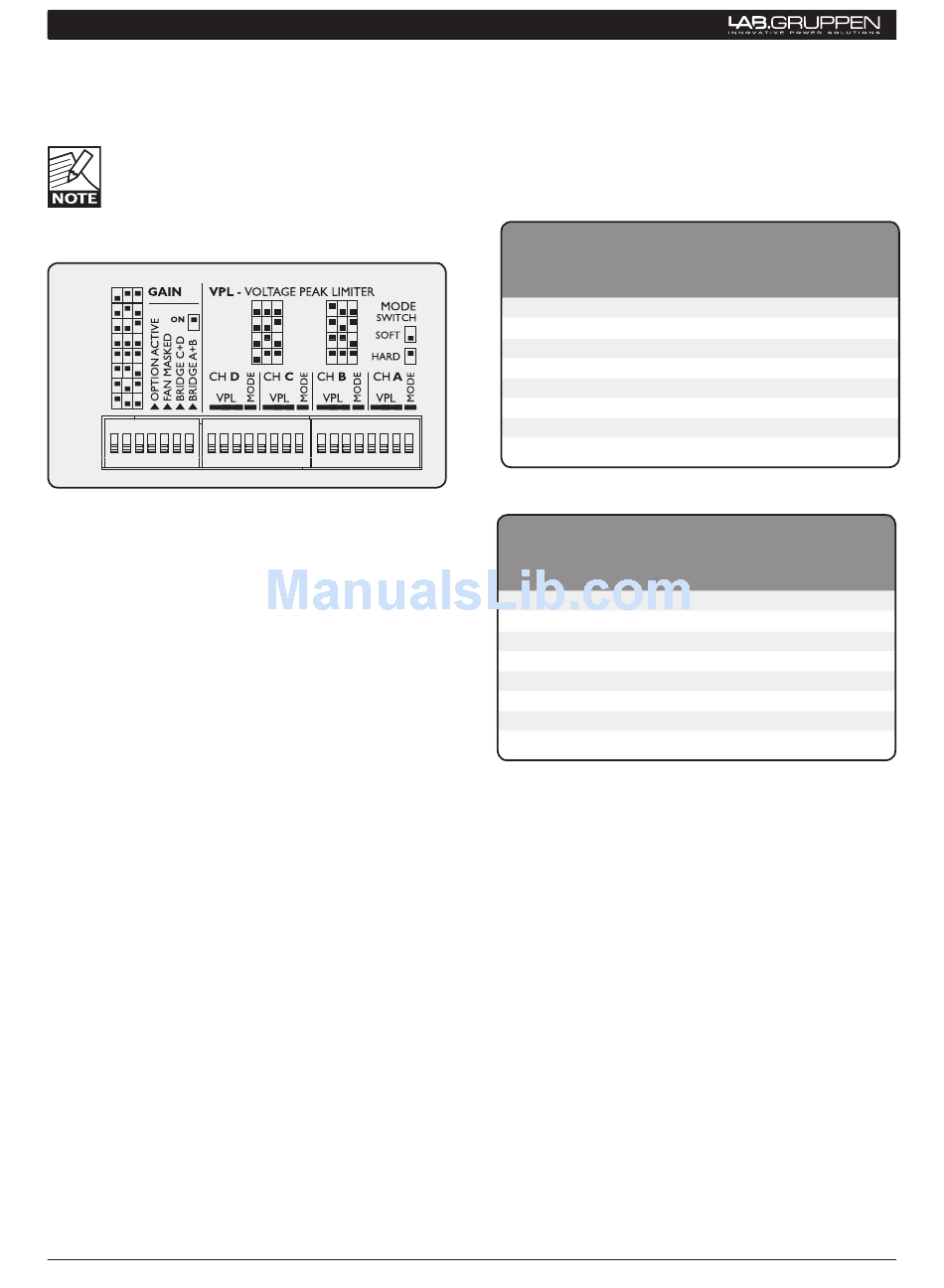

6.2.1 Network and Configuration section

Four-channel model shown. Two-channel versions
have VPL and Bridge Mode switches for channels
A and B only. All models have different VPL values.
Functions are otherwise identical.
44dB
150V
41dB
121V
38dB
101V
35dB
32dB 83V
29dB
26dB
23dB

6.2.2 The dIP switch features

The following features may be adjusted using the
DIP switches on the rear-panel of the amplifier.
Gain - Globally set for all channels, from +23 dB to +44
dB in 3 dB steps.
Option active - Not currently implemented.
fan Masked - When on, engages the intelligent
fan feature; fan speed is lowered when no signal is
present.
Bridge A+B and C+d- Switches the channel pairs
into bridge mode operation An automatic -6 dB gain
compensation is applied.
12 FP+ Series Operation Manual
70V
56V
47V
38V
VPL - Voltage Peak Limiter adjustment is provided
for eight discrete levels for each channel except FP
6000Q which has 6 discrete levels for each channel.
Select the setting most appropriate for connected
speakers.
fP 6000q fP 7000
101 V 155 V
83 V 121 V
70 V 101 V
56 V 83 V
47 V 70 V
38 V 56 V
47 V
38 V
VPL in Bridge Mode
fP 6000q fP 7000
202 V 310 V
166 V 242 V
140 V 202 V
112 V 166 V
94 V 140 V
76 V 112 V
94 V
76 V
Mode - Select VPL mode to either Hard or Soft
operation. For channels driving sub-woofers and
low-frequency drivers, it is recommended to use
the Hard setting for optimal operation. For mid- and
high- frequency drivers, always select Soft.
VPL
fP 10000q fP 13000
150 V 195 V
121 V 170 V
101 V 140 V
83 V 116 V
70 V 100 V
56 V 80 V
47 V 66 V
38 V 54 V
fP 10000q fP 13000
300 V 390 V
242 V 340 V
202 V 280 V
166 V 232 V
140 V 200 V
112 V 160 V
94 V 132 V
76 V 108 V
