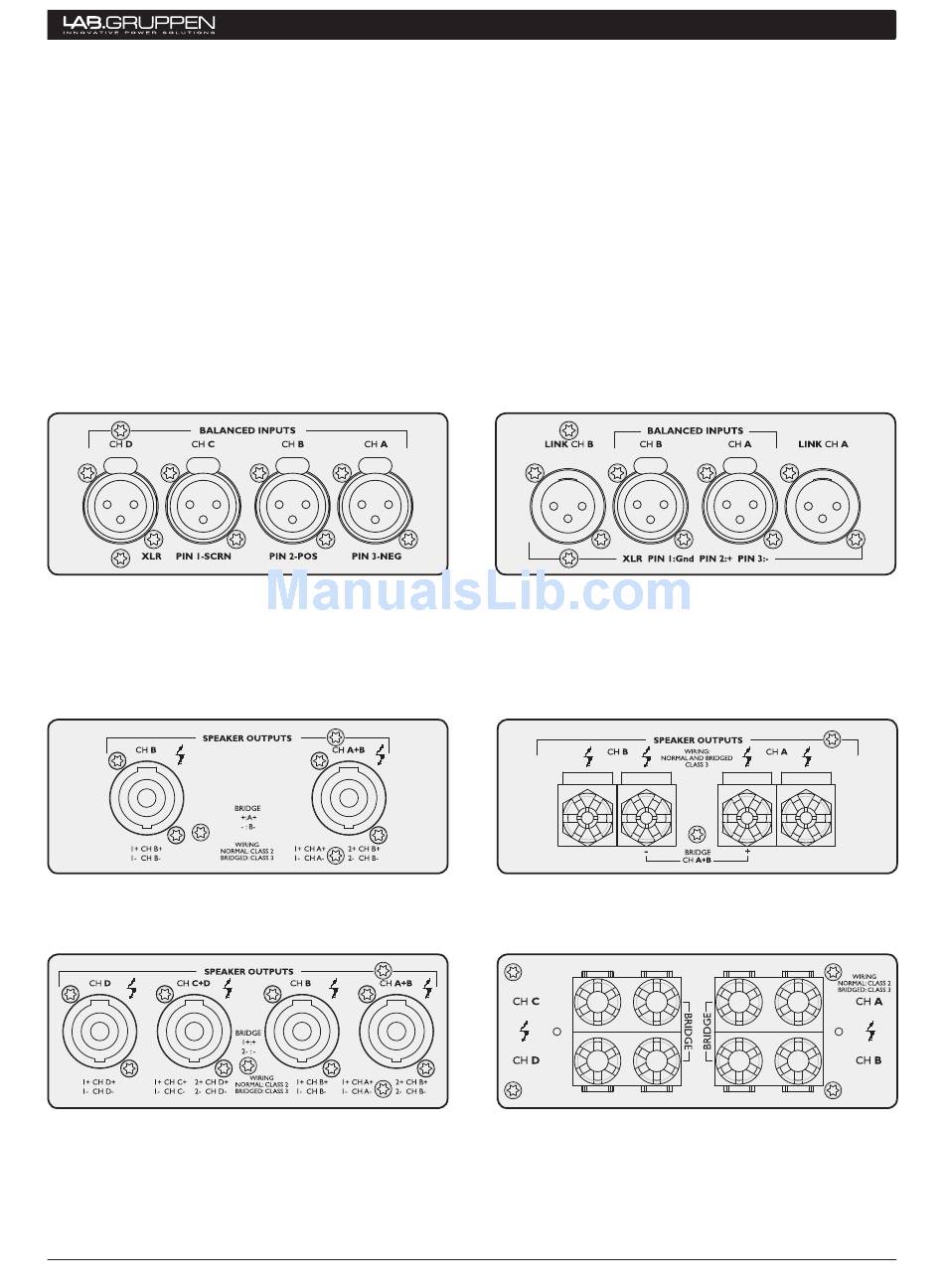

6.2.3 Input and Output connectors

All FP+ Series amplifiers are equipped with balanced XLR-F input connectors. 2-channel models also offer
parallel ("loop-thru") XLR-M output connectors for daisy-chaining multiple amplifiers from the same signal
source.
All FP+ Series amplifiers except the FP 13000 offer a choice of either binding post (BP) or Neutrik© NL4FC
Speakon output connectors (SP). The FP 13000 is offered with BP connectors only as the potential maximum
output current exceeds the recommended limits for the Speakon connectors.
For specific configuration and wiring information, see section 7.4.
Audio inputs - 4-channel models
Speakon outputs - 2-channel models
Speakon outputs - 4-channel models
Input connectors
Audio inputs and loop-thru connectors - 2-channel
Output connectors
Binding Posts - 2-channel models
Binding Post outputs - 4-channel models
QUICK GUIDE OVERVIEW 6
models
FP+ Series Operation Manual 13
