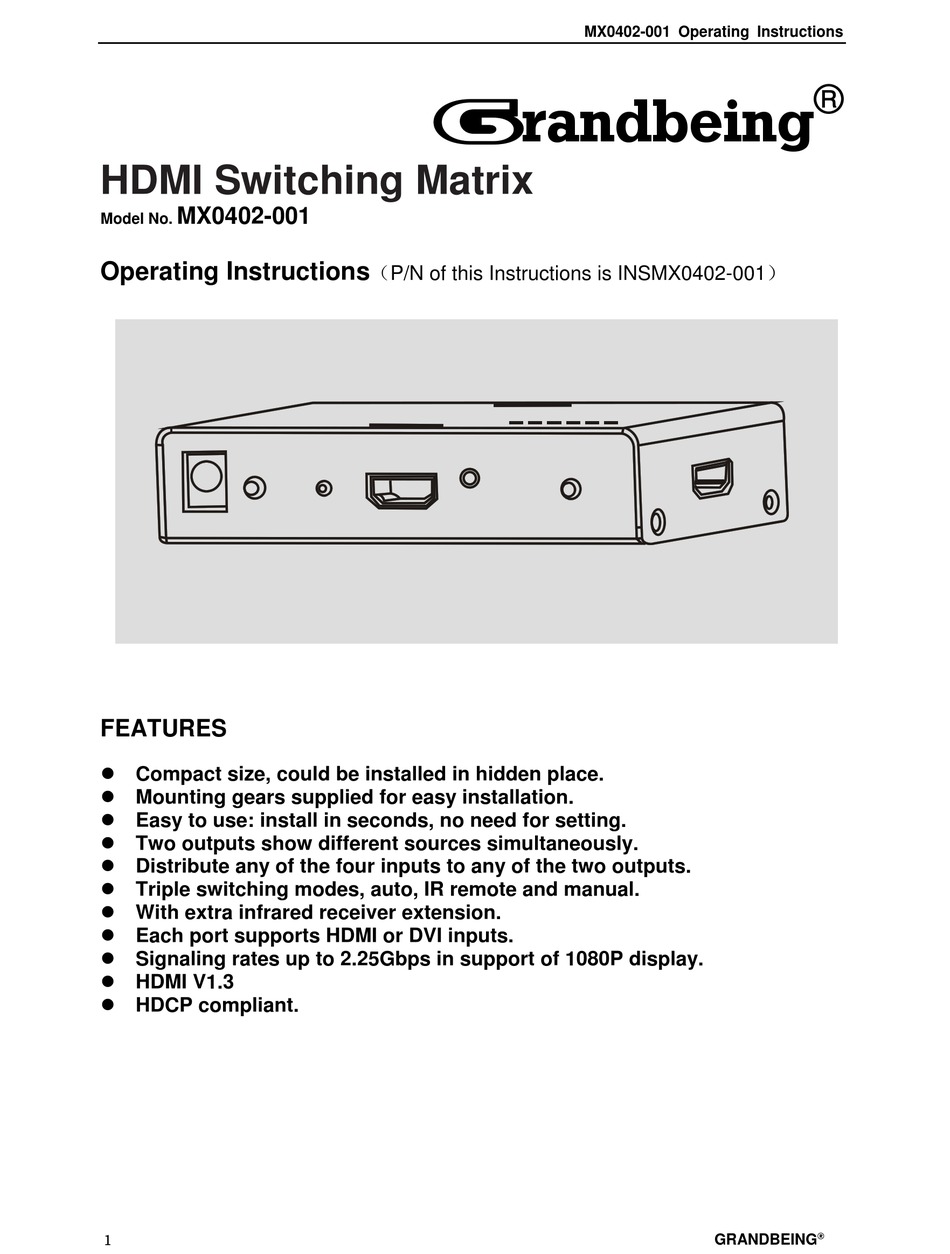

HDMI Switching Matrix
MX0402-001
Model No.
Operating Instructions
FEATURES
Compact size, could be installed in hidden place.
Mounting gears supplied for easy installation.
Easy to use: install in seconds, no need for setting.
Two outputs show different sources simultaneously.
Distribute any of the four inputs to any of the two outputs.
Triple switching modes, auto, IR remote and manual.
With extra infrared receiver extension.
Each port supports HDMI or DVI inputs.
Signaling rates up to 2.25Gbps in support of 1080P display.
HDMI V1.3
HDCP compliant.
１
Grandbeing
（P/N of this Instructions is INSMX0402-001）
MX0402-001 Operating Instructions
GRANDBEING
®
®
Advertisement
Table of Contents
Related Manuals for Grandbeing MX0402-001
Summary of Contents for Grandbeing MX0402-001
- Page 1 MX0402-001 Operating Instructions ® Grandbeing HDMI Switching Matrix MX0402-001 Model No. Operating Instructions （P/N of this Instructions is INSMX0402-001） FEATURES Compact size, could be installed in hidden place. Mounting gears supplied for easy installation. Easy to use: install in seconds, no need for setting.
- Page 2 Please keep this manual for future reference. NOTICE Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
-
Page 3: Table Of Contents
MX0402-001 Operating Instructions TABLE OF CONTENTS Introduction ····························································································4 Package Contents··················································································4 Panel Descriptions ·················································································4 Connect and Operation··········································································6 Specification···························································································9 Typical Application ·················································································9 Maintenance ························································································10 Product Service····················································································10 Warranty ······························································································10 Contact Information···········································································１０ ® ３ GRANDBEING... -
Page 4: Introduction
MX0402-001 Operating Instructions INTRODUCTION Grandbeing’s MX0402-001 is a 4-by-2 DVI/HDMI switching matrix. It allows up to 4 digital DVI or HDMI ports to be switched to two independent displays. The two outputs can display different sources from different inputs simultaneously. - Page 5 MX0402-001 Operating Instructions ® ５ GRANDBEING...
-
Page 6: Connect And Operation
1) Connect the HDMI input sources (such as HD-DVD, PS3, STB etc) into MX0402-001. 2) Connect the HDMI outputs (such as HD-LCD, HD-DLP) into MX0402-001. 3) Power on the input source you want to show. (Keep the unused input power off,otherwise it may interfere the normal display.) - Page 7 MX0402-001 Operating Instructions When the power is on , all the LEDs flash once. 1.LED indicator ： Output indicator When a HDMI equipment is connected, the corresponding LED lights on. LED is red when Output 1 works, blue when Output 2 works.
- Page 8 MX0402-001 Operating Instructions 2.Manual button control on panel Output 1 button controls Output 1, Output 2 button controls Output 2. Manual button control is used when there are more than one input sources, when there is only one input source, the two output ports will both switch to this input.
-
Page 9: Specification
MX0402-001 Operating Instructions SPECIFICATIONS Operating temperature range -5 to +35°C(-41 to +95 °F) Operating humidity range 5 to 90 % RH (no condensation) Input video signal 0.5-1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) Signaling rate 2.25Gbit/s Video format supported... -
Page 10: Maintenance
MX0402-001 Operating Instructions MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged;... - Page 11 MX0402-001 Operating Instructions Mail-In Service When shipping the unit, carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached.
-
Page 12: Thank You For Your Purchase
MX0402-001 Operating Instructions Customer Services Directory Thank you for your purchase. We appreciate your business. Please contact us with your question and comments. Grandbeing Technology Co., Ltd 6C, Jialitai Building, No. 6 Yanshan Road, Nanshan District Shenzhen , P.R. China...
