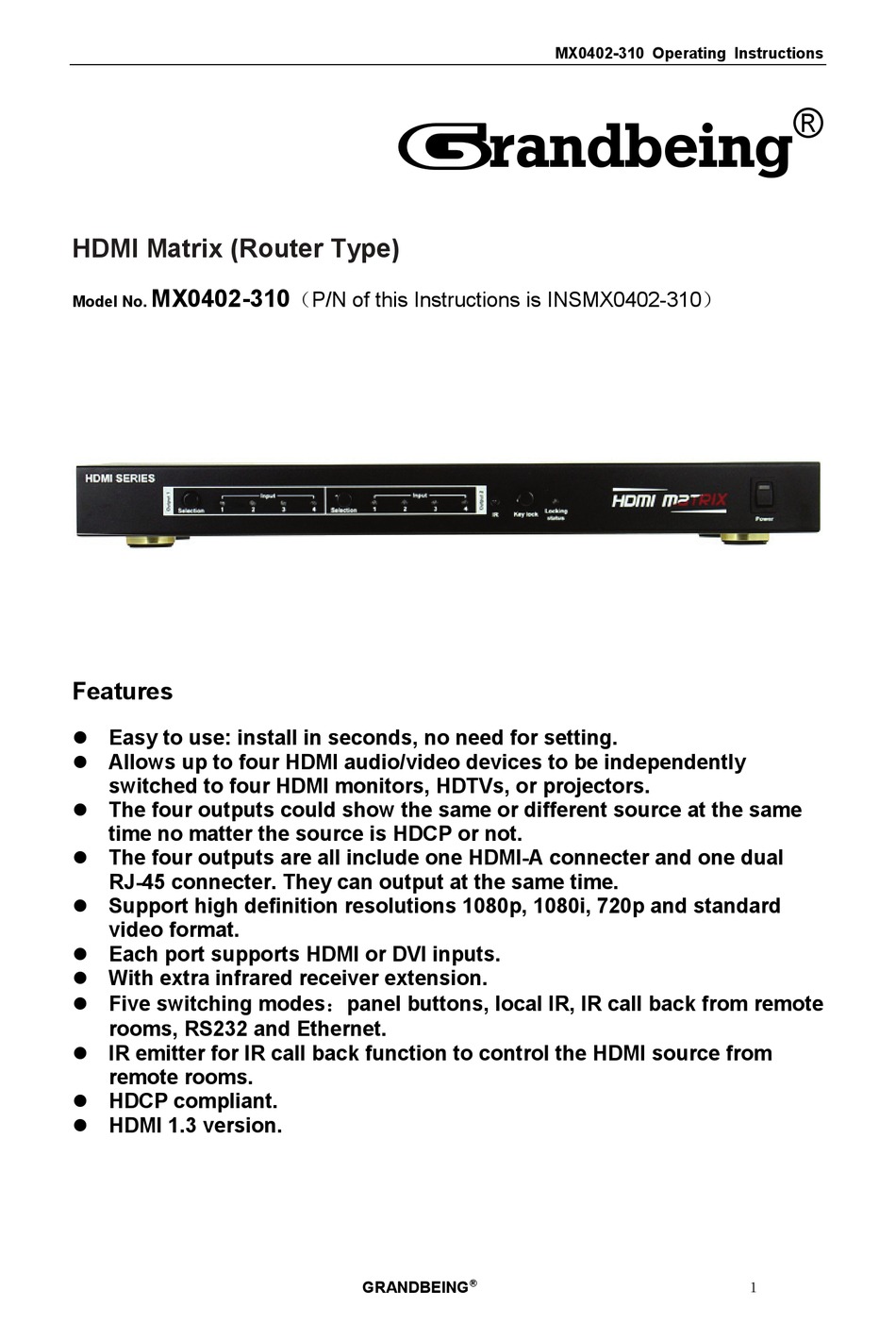

HDMI Matrix (Router Type)
MX0402-310
Model No.
Features
Easy to use: install in seconds, no need for setting.
Allows up to four HDMI audio/video devices to be independently
switched to four HDMI monitors, HDTVs, or projectors.
The four outputs could show the same or different source at the same
time no matter the source is HDCP or not.
The four outputs are all include one HDMI-A connecter and one dual
RJ-45 connecter. They can output at the same time.
Support high definition resolutions 1080p, 1080i, 720p and standard
video format.
Each port supports HDMI or DVI inputs.
With extra infrared receiver extension.
Five switching modes：panel buttons, local IR, IR call back from remote
rooms, RS232 and Ethernet.
IR emitter for IR call back function to control the HDMI source from
remote rooms.
HDCP compliant.
HDMI 1.3 version.
Grandbeing
（P/N of this Instructions is INSMX0402-310）
GRANDBEING
MX0402-310 Operating Instructions
®
®
１
Advertisement
Table of Contents
Related Manuals for Grandbeing MX0402-310
Summary of Contents for Grandbeing MX0402-310
- Page 1 MX0402-310 Operating Instructions ® Grandbeing HDMI Matrix (Router Type) MX0402-310 （P/N of this Instructions is INSMX0402-310） Model No. Features Easy to use: install in seconds, no need for setting. Allows up to four HDMI audio/video devices to be independently switched to four HDMI monitors, HDTVs, or projectors.
- Page 2 Please keep this manual for future reference. Notice Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
-
Page 3: Table Of Contents
Contact Information ··············································································· 9 INTRODUCTION Grandbeing’s MX0402-310 is a 4-by-2 DVI/HDMI true matrix. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, no matter the source is HDCP or not. -
Page 4: Panel Descriptions
MX0402-310 Operating Instructions PANEL DESCRIPTIONS Front panel 1. Output selection and indicator of input for output port 1 to 4. 2. IR window. 3. Key lock button. 4. Indicator of locking status, when the output selection buttons are locked, LED inside lit. -
Page 5: Connect And Operation
3) Power on the input source you want to show. (Keep the unused input power off, otherwise it may interfere the normal display.) 4) Connect the power supply into MX0402-310 and turn on the display you want to watch. 5) Use remote or push the button to choose input source. -
Page 6: Specification
Video Format Supported DTV/HDTV:1080P/1080i/720P/576P/480P/576i/480i Output Video HDMI1.2 and HDMI 1.3 Maximum Transmission Distance <15m (If needed, HDMI extender is optional) <30m(use Grandbeing UTP receiver,if need longer UTP cable Transmission Distance distance,Grandbeing UTP repeater should be used) Power Consumption 10wtts (Max) 440mmL×202mmW×42mmH... -
Page 7: Typical Application
MX0402-310 Operating Instructions TYPICAL APPLICATION MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged;... -
Page 8: Warranty
MX0402-310 Operating Instructions fire, electric shock, or other hazards. 4) Safety check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition. WARRANTY If your product does not work properly because of a defect in materials or... -
Page 9: Contact Information
MX0402-310 Operating Instructions FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer, loss of or damage to media or images, data or other recorded content.
