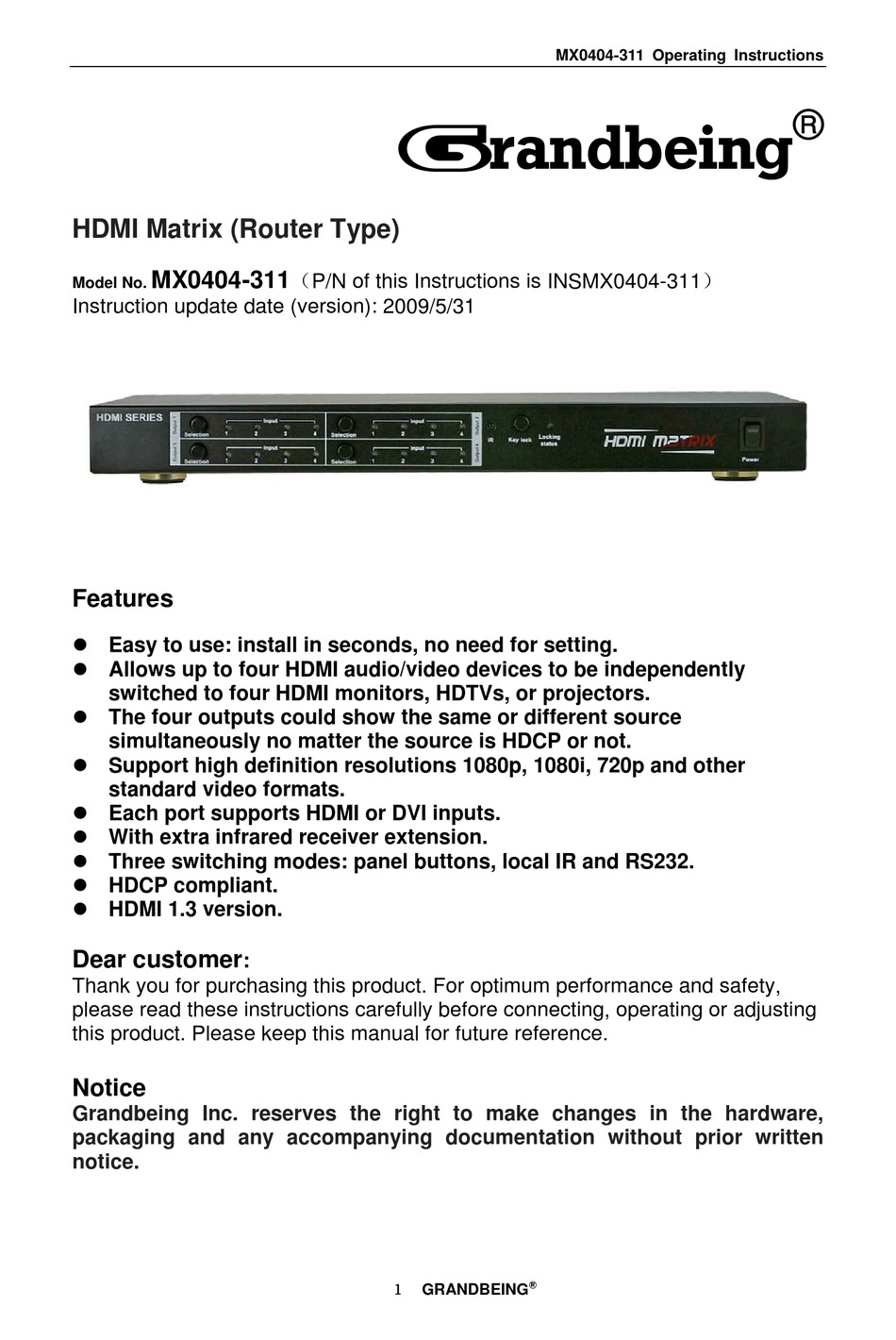

HDMI Matrix (Router Type)
MX0404-311
Model No.
Instruction update date (version): 2009/5/31
Features
Easy to use: install in seconds, no need for setting.
Allows up to four HDMI audio/video devices to be independently
switched to four HDMI monitors, HDTVs, or projectors.
The four outputs could show the same or different source
simultaneously no matter the source is HDCP or not.
Support high definition resolutions 1080p, 1080i, 720p and other
standard video formats.
Each port supports HDMI or DVI inputs.
With extra infrared receiver extension.
Three switching modes: panel buttons, local IR and RS232.
HDCP compliant.
HDMI 1.3 version.
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
Notice
Grandbeing Inc. reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior written
notice.
Grandbeing
（P/N of this Instructions is INSMX0404-311）
:
１ GRANDBEING
MX0404-311 Operating Instructions
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX0404-311 and is the answer not in the manual?

Questions and answers

Related Manuals for Grandbeing MX0404-311

Summary of Contents for Grandbeing MX0404-311

  • Page 1 Please keep this manual for future reference. Notice Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
  • Page 2 MX0404-311 Operating Instructions WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE: 1) DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

  • Page 3: Table Of Contents

    Contact Information ··································································9 INTRODUCTION Grandbeing’s MX0404-311 is a 4-by-4 DVI/HDMI true matrix. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, no matter the source is HDCP or not.

  • Page 4: Panel Descriptions

    MX0404-311 Operating Instructions PANEL DESCRIPTIONS Front panel 1. Output selection and indicator of input for output port 1 to 4. 2. IR window. 3. Key lock button. 4. Indicator of locking status, when the output selection buttons are locked, LED inside lit.

  • Page 5: Connect And Operation

    3) Power on the input source you want to show. (Keep the unused input power off, otherwise it may interfere the normal display.) 4) Connect the power supply into MX0404-311 and turn on the display you want to watch. 5) Use remote or push the button to choose input source.

  • Page 6: Specification

    MX0404-311 Operating Instructions SPECIFICATIONS Operating Temperature Range -5 to +35°C (-41 to +95 °F) 5 to 90 % RH (no condensation) Operating Humidity Range Input Video Signal 0.5-1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) Signaling Rate 2.25Gbit/s...

  • Page 7: Maintenance

    MX0404-311 Operating Instructions MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged;...
  • Page 8 MX0404-311 Operating Instructions If your product does not work properly because of a defect in materials or workmanship, Grandbeing Company (referred to as “the warrantor”) will, for the （Parts (1) Year， Labor(90) Days） length of the period indicated as below, which starts with the date of original purchase (“Limited Warranty period”), at its option...

  • Page 9: Contact Information

    MX0404-311 Operating Instructions THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer, loss of or damage to media or images, data or other recorded content.
