RF-30-EDP
Deluxe OEM Upgrade & Range Extender
October 25, 2012
Operation Guide

Advertisement

Table of Contents
loading

Related Manuals for Excalibur RF-30-EDP

Summary of Contents for Excalibur RF-30-EDP

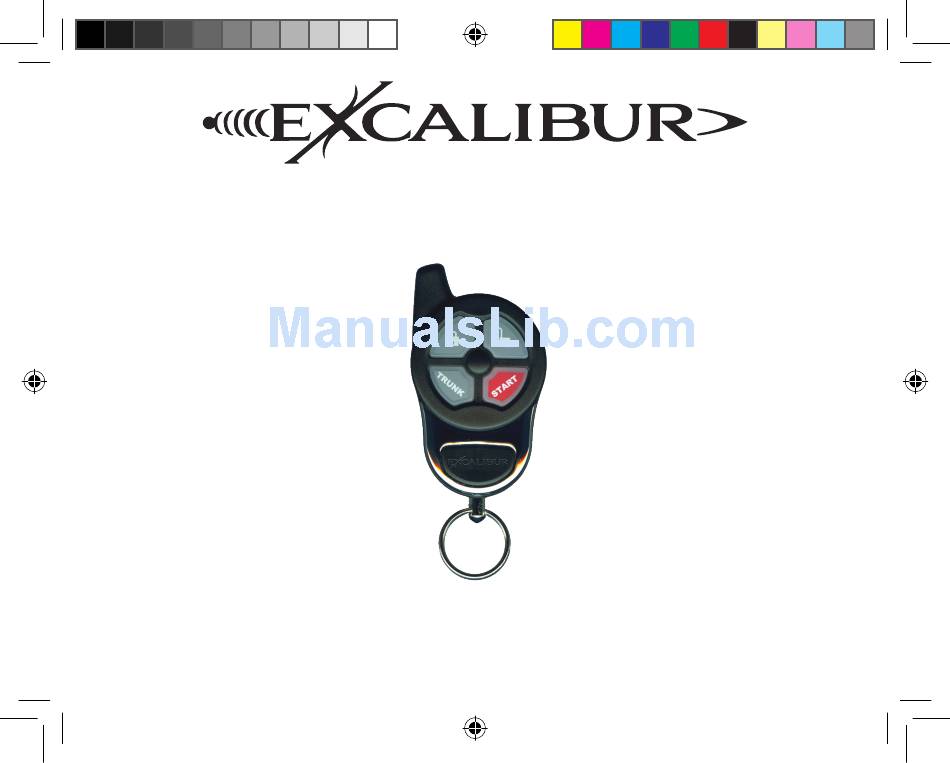

  • Page 1 RF-30-EDP Deluxe OEM Upgrade & Range Extender October 25, 2012 Operation Guide...

  • Page 2: Table Of Contents

    Table Of Contents Transmitter Overview ................3 The Transmitter .................3 Transmitter Functions ................4 Other Remote Start Features ..............8 Low Battery/Low Temp Automatic Starting ........8 Pit-Stop Feature ................8 Security System Features ..............9 Last Door Locking/Arming ..............9 Automatic Re-locking ................9 Using The Valet Switch ................10 Emergency Override ...............10 The Status Light ..................10 Programming Transmitters ..............12...

  • Page 3: Transmitter Overview

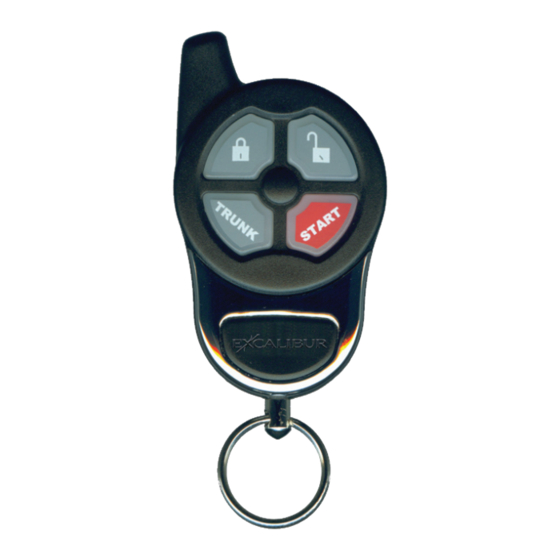

    Transmitter Overview ThE TRansMiTTER part number: 147-03 Call your dealer or visit www.caralarm.com to order replacement transmitters. 1) antenna 2) Lock Button 3) Unlock Button 4) Trunk Button 5) start Button Transmitter battery replacement: Remove the small screw from the lower back case, and separate the transmitter halves.

  • Page 4: Transmitter Functions

    Transmitter Functions LOCK / aRM: Press and release the “LOCK” button. • ThE VEhiCLE DOORS wiLL LOCK AND ThE STATUS LighTS wiLL FLASh SLOw RED • ThE SySTEM iS NOw MONiTORiNg ENTRy POiNTS UnLOCK / DisaRM: Press and release the “UNLOCK” button. •...
  • Page 5 Transmitter Functions (cont’d) TRUnK RELEasE: Press & hold the “TRUNK” button for 3 seconds. • ThE TRUNK wiLL OPEN & ThE DOORS wiLL UNLOCK REMOTE sTaRT: Press and release the “START” button twice within 5 sec- onds. (see programmable feature #5 for additional options) •...
  • Page 6 Transmitter Functions (cont’d) PaniC: Press & hold the “LOCK” or “UNLOCK” button for 3 seconds. • ThE hORN wiLL SOUND AND ThE DOORS wiLL LOCK OR UNLOCK DEPENDiNg whiCh BUTTON iS PRESSED. NOTE: PaNic may NOT bE availablE ON all vEhiclEs •...
  • Page 7 Transmitter Functions (cont’d) aUXiLiaRY FUnCTiOns 1-4: The actual operation of these functions will vary from car to car. They are designed to operate extra vehicle functions like automatic sliding doors or motorized hatches. Aux 1-4 are virtual outputs only available on certain vehicles when this system is integrated with the vehicle’s data network. Consult with your installer to find out if any of these functions are available for your vehicle. If so, confirm each operation with the controller and write each function in the blank spaces provided below.

  • Page 8: Other Remote Start Features

    Other Remote start Features LOW BaTTERY/LOW TEMP aUTOMaTiC sTaRTinG This feature will automatically start the engine if the vehicle battery drops below 11 volts or the interior temperature drop to 15 (or 32) degrees fahrenheit. you must activate these features each time you park your car to use them.

  • Page 9: Security System Features

    security system Features LasT DOOR LOCKinG/aRMinG This system can be configured to arm automatically when all the vehicle’s doors are closed (see programmable feature #2). when all of the doors are closed after driving the vehicle, it will start a 30 second countdown (indicated by a fast flashing status light). After 30 seconds, the system will arm (and lock the doors if configured to do so). During the 30 second arming delay, if a point of entry is opened, the countdown will pause until all entry points are closed again. Turning ON the ignition key will cancel the last door arming sequence until the key is turned off and the doors are all closed once again.

  • Page 10: Using The Valet Switch

    Using The Valet switch The valet switch is a push button built into the window mount antenna. it is used to perform emer- gency override and system programming (see inside of back cover for programming). EMERGEnCY OVERRiDE if you were to lose or break your controller, you’d need to perform an emergency override to disarm the system.
  • Page 11 The status Light (cont’d) ZOnE ViOLaTiOn RECaLL (RED LiGhT): If a zone is violated while the system is locked/armed, the RED status lights will flash a number of times to indicate exactly which zone(s), has been violated. it will store the last 2 violated circuits and continually repeat the flash pattern until the system is disarmed & the ignition key is turned ON. 2 FLashEs: hood trigger 3 FLashEs: Door trigger REMOTE sTaRT sTaTUs (GREEn LiGhT): OFF: The remote start is off and in standby mode.

  • Page 12: Programming Transmitters

    Programming Transmitters standard Programming: Before you begin, have all transmitters which are to operate the system at hand and make sure the correct vehicle profile (see page 11) is selected on the controller(s). step 1 Then, turn the ignition “on”. step 2 Within 5 seconds of Step 1, press the Valet Switch 5 times. The antenna will beep, confirming that the system is ready to learn a transmitter code. step 3 Press the “lock” button on each transmitter one at a time. The antenna will beep once to confirm that each controller was learned. If a code is not received within 10 seconds of Step 2, the learning process will automatically exit.

  • Page 13: Programming Features

    Programming Features step 1 Turn the ignition key “ON”, then “OFF” step 2 within 5 seconds of step 1, press the valet switch 5 times to access user features (10 times to access installer features). ~ The antenna will beep and the status light will turn on. step 3 within 10 seconds of step 2, press the valet switch the number of times corresponding with the desired feature’s number.
  • Page 14 User Programmable Features (cont’d) Feature #3 - automatic Re-locking (press “lock” button to program) (press “unlock” button to program) - DEFaULT Enhanced (press “trunk” button to program) “Automatic Re-locking”, described on page 9, re-locks the alarm if accidentally unlocked. Enhanced auto re-lock allows you to cancel the rearming sequence by pressing unlock a 2nd time within 5 seconds.

  • Page 15: Programmable Features Matrix

    Programmable Features Matrix Feature Programming: Ignition on, off, press valet 5 times # Feature Lock Button Unlock button Trunk button ”START” button 1 Ignition Lock/Unlock Lock only Unlock only 2 Last Door Locking 3 Automatic Relocking Enhanced 4 Unlock w/ Trunk Release On 5 Remote Start Activation 1 press 2 presses...
  • Page 16 This device complies with FCC Rules part 15. Operation is subject to the following two conditions, (1) This device may not cause harmful interference and, (2) This device must accept any interference that may be received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
