General Information
1.1

GENERATOR IDENTIFICATION

Please record the following information from the generator DATA DECAL or information decal.
1. Model Number _____________________
3. kW Rating _________________________
5. Phase _____________________________
8
14
1. Generator Air Intake Screen
2. Data Plate
3. Engine Start/Stop Switch
4. 7.5 amp Fuse
5. Circuit Breaker
6. Optional Remote Panel Receptacle
7. Generator AC Output Leads
8. Starter Contactor
9. Fuel Inlet
10. Fuel Primer Switch
4
16
13
17
7
6
9, 18 20

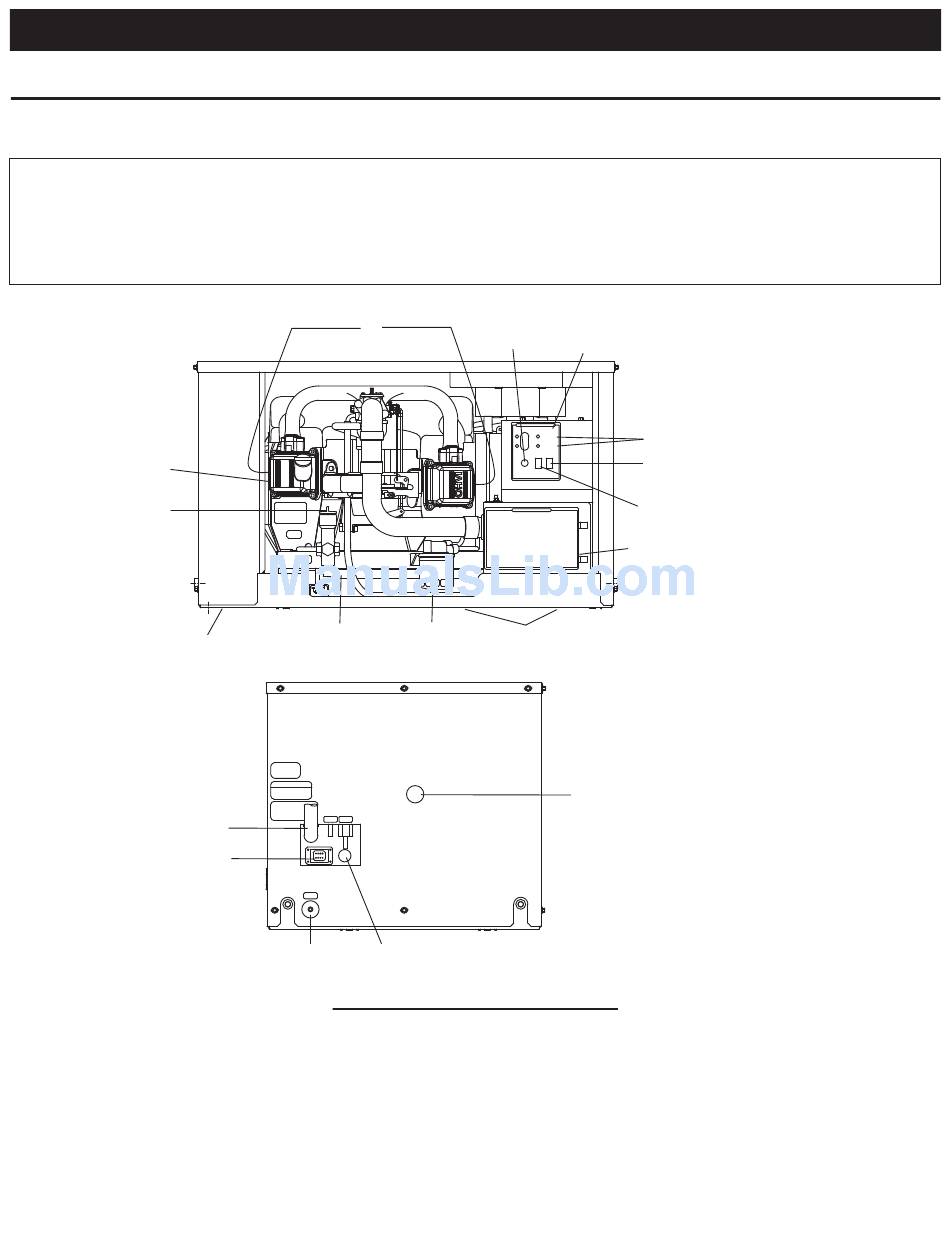

REFERENCE NUMBER IDENTIFICATION
2. Serial Number __________________
4. Rated Voltage __________________
6. Hertz __________________________
4
2
CONTROL CENTER
C IR C U IT
B R E A K E R
C IR C U IT
B R E A K E R
F U S E S T A R T F U E L
7 .5 A
IF GENERATOR DOES NOT START, REMOVE
AND INSPECT FUSE. S T O P P R IM E
(SEE OWNER'S MANUAL TROUBLE SHOOTING
GUIDE.)
PRESS PRIME SWITCH FOR 10 SECONDS BEFORE STARTING. WHEN STARTING, DO
NOT PRESS START BUTTON LONGER THEN 15 SECONDS PER ATTEMPT.
S E R V IC E A C C E S S P A N E L
AIR FILTER LOCATED BEHIND PANEL.
MAINTENANCE SCHEDULE
AIR FILTER: CLEAN PREFILTER SPARK PLUGS: INSPECT & CLEAN
EVERY 100 HOURS. * PLUGS EVERY 100 HOURS.
REPLACE ELEMENT
REPLACE PLUGS EVERY
EVERY 250 HOURS. *
500 HOURS. (IF NECESSARY)
OIL & OIL FILTER: CHANGE EVERY 100 FUEL FILTER: CHANGE EVERY 400 HOURS.
HOURS. (OR ANNUALLY) * (OR ANNUALLY)
* PERFORM MORE OFTEN IN DUSTY CONDITIONS
OIL CAPACITY OIL LEVEL: CHECK DAILY
WITH FILTER: 1.8L/1.9QT
TEMPERATURE: (SAE VISCOSITY) REPLACEMENT PREFILTER P/N: 0D4511
INFORMATION: AIR FILTER P/N: 0D9723
40°F AND HIGHER SAE 30 OR 10W-30
OIL FILTER P/N: 070185
-20°F TO 40°F 5W-30 OR 5W-20
SPARK PLUG P/N: 072347
FUEL FILTER P/N: 087769
WHEN SERVICE OR PARTS ARE NEEDED IN THE USA OR CANADA,
CONTACT THE GUARDIAN SERVICE LOCATOR AT 1-800-333-1322.
12
1
19
11. Fuel Pump (Behind access panel.)
12. Oil Filter
13. Oil Drain Plug
14. Oil Dipstick and Filler Tube
15. Air Filter (Behind access panel.)
16. Spark Plugs
17. Exhaust Outlet
18. Fuel Filter
19. LP Fuel Inlet
20. Evaporative Port
5
10
3
11, 15
(Behind Access Panel)
