VADDIO WALLVIEW CCU H700 Installation And User Manual

Camera and Electronic Products for Integrators
W VIEW™ CCU H700
ALL
Vaddio™ Quick-Connect™ CCU for the Sony®
BRC-H700 PTZ Camera
OVERVIEW
The Vaddio WallVIEW CCU H700 is built around the Sony
BRC-H700 high definition PTZ Camera. The WallVIEW CCU
H700 allows the user to control the color output of the
camera's image sensor, through both Red and Blue Gain
knobs, Detail, as well as Iris and Gain levels, to provide a
higher quality image. In addition, there are also Color Hue,
Color Gain and White Balance Shift adjustments for added
fine-tuning of the cameras image.
speed differential signaling (HSDS), an active transmission
system that delivers low-loss, high-quality video over Cat. 5
cabling distances up to 500 feet.
The WallVIEW CCU H700 system is capable of high definition (HD) 1080i resolution component video in
either NTSC or PAL formats. There are also has many new features, including Tally illumination on the
camera which allows the presenter to know which camera is live, as well as Genlock delivered to the camera
over CAT-5. Other new features include the ability to store settings on two discrete Scene buttons, and
buttons for Auto White Balance, One Push White Balance and Auto Iris. Like all Vaddio WallVIEW systems,
the Thin Profile Wall Mount and mounting hardware is included.
INTENDED USE
Before installing the Vaddio WallVIEW CCU Camera System, please read the entire manual thoroughly. All
Vaddio camera systems are designed for use indoors. Outdoor operation is not recommended, has not been
tested, and could damage the camera and/or create a potentially unsafe operating condition. Use only the
Vaddio PowerRite power supply provided.
SAVE THESE INSTRUCTIONS
The information contained in this manual will help you install the Vaddio WallVIEW CCU system. For
reference, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product
drawings for the Vaddio product line on the website.
www.vaddio.com free of charge.
IMPORTANT SAFEGUARDS
Read and understand all instructions before using. Do not operate any electrical device if it has been
dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To
reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid
conditions.
Use only the power supply provided with the Vaddio WallVIEW products.
Use of any unauthorized power supply will void any and all warranties.
Do not use RJ-45 "pass-thru" connectors during installation. Use only
standard RJ-45 connectors and test all terminated cables.
©2009 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and
pricing subject to change. Vaddio, WallVIEW, HSDS, Quick-Connect, EZIM, ProductionVIEW, PreVIEW, EZCamera and PowerRite are
registered trademarks of Vaddio. All other trademarks are property of their respective owners. Document Number 341-717 Rev C
HSDS™
WITH
The system uses high
These documents can be downloaded from
Installation and User Guide

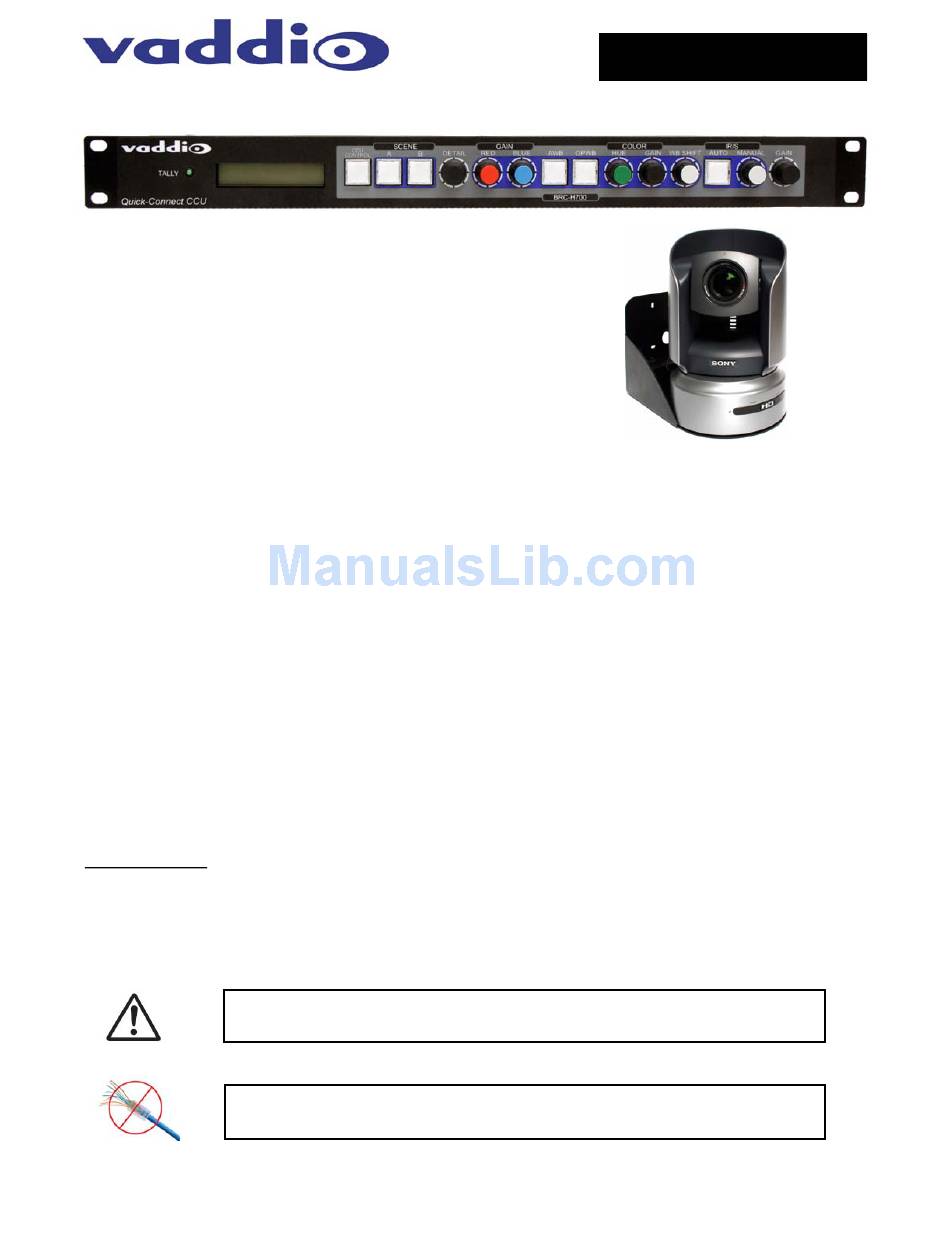

Figure 1:
WallVIEW CCU H700 System with Camera,
Wall Mount and EZIM CCU (behind camera)
