- Page 1 Installation Guide for EasyIP Systems Featuring the EasyIP Decoder, EasyIP Mixer, and EasyIP Cameras Document 411-0041-39 Rev D July 2020...
-
Page 2: Table Of Contents
Contents Overview What's in this Guide The EasyIP Ecosystem EasyIP Decoder EasyIP Mixer EasyIP Cameras EasyIP Switch EasyIP Decoder Features EasyIP Mixer Features EasyIP 10 Camera Features EasyIP 20 Camera Features Unpacking the EasyIP System Components EasyIP Decoder AV-over-IP Switching USB Endpoint EasyIP Mixer AV Switcher EasyIP 10 AV-over-IP PTZ Camera EasyIP 20 AV-over-IP PTZ Camera... - Page 3 Installation Guide for EasyIP Systems Installing the Wall Mount for the Camera About Ceiling-Mounted Cameras Installing the Camera Powering Up the EasyIP System Next Steps Operation, Storage, and Care Compliance and Conformity Statements FCC Part 15 Compliance ICES-003 Compliance European Compliance Photo Credits Index...
-
Page 4: Overview
Overview This guide discusses the following products: EasyIP Decoder AV-over-IP switching USB endpoint, 999-60210-000 (worldwide) EasyIP Mixer AV switcher, 999-60320-000 (worldwide) EasyIP 10 AV-over-IP PTZ camera, 999-30200-000 (black, worldwide) EasyIP 10 AV-over-IP PTZ camera, 999-30200-000W (white, worldwide) EasyIP 20 AV-over-IP PTZ camera, 999-30230-000 (black, worldwide) EasyIP 20 AV-over-IP PTZ camera, 999-30230-000W (white, worldwide) -
Page 5: What's In This Guide
EasyIP products are designed to be used together, and have limited or no compatibility with other types of products. EasyIP cameras deliver video in Vaddio's proprietary EasyIP format. An EasyIP host device (EasyIP Decoder or EasyIP Mixer) is required to convert the cameras' output signal to an IP and/or USB stream. -
Page 6: Easyip Switch
Uncompressed USB 3.0 streaming Streaming video resolutions up to 1080p/60 Full-duplex audio streaming Audio inputs for two Vaddio EasyMic microphones HDMI video output for local display ® Universal Video Class (UVC) and Universal Audio Class (UAC) drivers supported in Windows ®... -
Page 7: Easyip 20 Camera Features
Installation Guide for EasyIP Systems EasyIP 20 Camera Features 8.5 Megapixel effective, native 1080p/60 full HD image sensor 20x optical zoom, horizontal field of view of 70.2° Resolutions up to 1080p/60 Precise pan and tilt movements at up to 120° per second Integration-ready Telnet control Pairs with an EasyIP Decoder or EasyIP Mixer, which provides video and audio connectivity and manages streaming;... -
Page 8: Unpacking The Easyip System Components
Installation Guide for EasyIP Systems Unpacking the EasyIP System Components Make sure you received all the items you expected. EasyIP Decoder AV-over-IP Switching USB Endpoint Worldwide: 999-60210-000 The box should contain these items: EasyIP Decoder USB 3.0 cable, type A to type B, 6 ft (1.8 m) Cat-5e cable, 3 ft. -
Page 9: Easyip 10 Av-Over-Ip Ptz Camera
EasyIP 10 AV-over-IP PTZ Camera Worldwide: 999-30200-000 (black), 999-30200-000W (white) The box should contain these items: Camera (black or white) Vaddio IR Remote Commander Thin Profile Wall Mount with mounting hardware Cat-5e cable, 10 ft. (3 m) Quick-Start Guide Caution When lifting or moving a camera, always support the camera's base. -
Page 10: Easyip 20 Av-Over-Ip Ptz Camera
EasyIP 20 AV-over-IP PTZ Camera Worldwide: 999-30230-000 (black), 999-30230-000W (white) The box should contain these items: Camera (black or white) Vaddio IR Remote Commander Thin Profile Wall Mount with mounting hardware Cat-5e cable, 10 ft. (3 m) Quick-Start Guide Caution When lifting or moving a camera, always support the camera's base. -
Page 11: A Quick Look At The Easyip Family
Installation Guide for EasyIP Systems A Quick Look at the EasyIP Family EasyIP Decoder – Decodes the AV-over-IP signal from the camera(s) and originates a USB stream. EasyIP Mixer – Pro A/V capabilities for the EasyIP environment. EasyIP 10 camera – Great video, 10x zoom, simple installation, minimal set-up. EasyIP 20 camera –... -
Page 12: Easyip Mixer
EasyIP Mixer Ideal for large classrooms and multi-camera applications, the EasyIP Mixer pairs to Dante audio inputs and outputs, and manages up to four Vaddio EasyIP cameras. It's the Art of Easy in a production switcher. Front View Swap button – Changes the selected input. If the PIP is turned on, this also exchanges the PIP and main image on the HDMI output. -

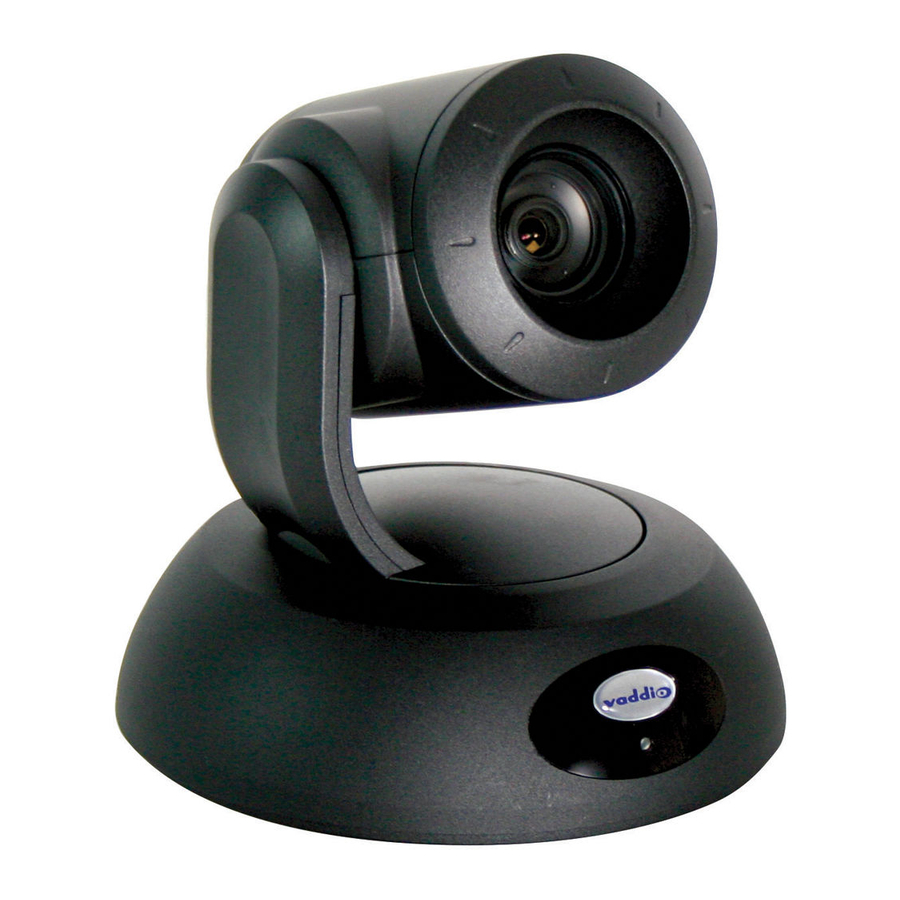

Page 13: Easyip 10 Camera
Installation Guide for EasyIP Systems EasyIP 10 Camera The EasyIP 10 camera delivers great video with simple installation and minimal set-up. Use it with an EasyIP Decoder or EasyIP Mixer. Front View Camera and zoom lens – 10X zoom lens. IR sensor –... -
Page 14: Easyip 20 Camera
Installation Guide for EasyIP Systems EasyIP 20 Camera The EasyIP 20 camera provides greater zoom and more sophisticated capabilities than the EasyIP 10 camera. Use it with an EasyIP Decoder or EasyIP Mixer. Front View Camera and zoom lens – 20X zoom lens. IR sensor –... -
Page 15: Installation
Cameras and network-connected audio peripherals must be paired to the host device after the installation is complete. Contact Vaddio Technical Support if you have questions or encounter any problems. Phone 800.572.2011 / +1.763.971.4400, email av.vaddio.support@legrand.com. Don’t Void Your Warranty! Caution When handling cameras, always support the camera's body when lifting or moving it. -
Page 16: Before Installing Cameras
The CeilingMIC is shipped with one Cat-5e cable to connect it to the interface box. Caution When building cables for Vaddio products, do not use pass-through RJ-45 connectors. Incorrectly crimped pass-through connectors can damage the connectors on the product, which will void your warranty. -
Page 17: Rs-232 Serial Communication Settings And Port Pin-Outs
Installation Guide for EasyIP Systems RS-232 Serial Communication Settings and Port Pin-outs The EasyIP Mixer and EasyIP 20 camera have RS-232 serial ports (color-coded blue) to connect to a third- party controller. Depending on the equipment connected to the RS-232 port, you may need a null-modem (crossover) cable. Caution Check your cables. -
Page 18: Easyip 20 Camera
Installation Guide for EasyIP Systems EasyIP 20 Camera RS-232 connector pin-out: Pin 1: Not used Pin 2: Not used Pin 3: Not used Pin 4: Not used Pin 5: Not used Pin 6: GND Pin 7: RXD (to TXD of host device) Pin 8: TXD (from RXD of host device) Communication parameters: Parameter... -
Page 19: Basic Connections - Easyip Decoder
EasyIP products. The EasyIP Decoder connects directly to a computer as a USB conferencing device. Vaddio recommends making all connections while the PoE+ switch is turned off. If no PoE+ switch is used, a mid-span PoE+ power injector (sold separately) is required for each EasyIP device. -
Page 20: Basic Connections - Easyip Mixer
A PoE+ switch provides power and network connectivity to the EasyIP products. If no PoE+ switch is used, a mid-span PoE+ power injector (sold separately) is required for each EasyIP device. Vaddio recommends making all connections while the PoE+ switch is turned off. Caution Do not connect the PoE+ switch to the network without guidance from an on-site network specialist. -
Page 21: Basic Connections - Easyip Mixer With Hdmi Input From Easyip 20 Camera
Installation Guide for EasyIP Systems Basic Connections – EasyIP Mixer with HDMI Input from EasyIP 20 Camera The EasyIP Mixer can only decode one EasyIP stream at a time. To allow the EasyIP Mixer to use an EasyIP 20 camera as the PIP source while another EasyIP camera provides the main video, connect the EasyIP 20 camera's HDMI output to the EasyIP Mixer's HDMI In port. -
Page 22: Installing The Wall Mount For The Camera
Installation Guide for EasyIP Systems Installing the Wall Mount for the Camera EasyIP cameras are shipped with wall mounts. Other mounting options are available as well. Contact us if you don’t have the camera mount you need. You can install the camera wall mount to a 2-gang wall box or directly to the drywall. If you mount it to drywall, use the wall anchors provided with the wall mount. -
Page 23: Installing The Camera
Installation Guide for EasyIP Systems Installing the Camera 1. Route the cable through the opening in the mounting shelf and connect it to the camera. 2. Place the camera on the mount. Image for illustration only; not to scale. Camera and mount details may differ. 3. -
Page 24: Powering Up The Easyip System
Installation Guide for EasyIP Systems Powering Up the EasyIP System Vaddio recommends making all connections while the PoE+ switch is turned off. To power the system, turn on the PoE+ switch. The EasyIP Decoder's status light turns blue when the device is ready. The connected computer recognizes it as a USB peripheral. -
Page 25: Compliance And Conformity Statements
(2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 26: European Compliance
Installation Guide for EasyIP Systems European Compliance This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Standard(s) To Which Conformity Is Declared: EMC Directive 2014/30/EU EN 55032: 2015 –... -
Page 27: Photo Credits
Installation Guide for EasyIP Systems Photo Credits This guide may include some or all of these photos. European Space Agency (ESA) astronaut Samantha Cristoforetti, a Flight Engineer with Expedition 42, photographs the Earth through a window in the Cupola on the International Space Station By NASA - https://blogs.nasa.gov/ISS_Science_Blog/2015/03/06/women-in-space-part-two-whats- gender-got-to-do-with-it/, Public Domain, https://commons.wikimedia.org/w/index.php?curid=38834990 Carl Sagan, Bruce Murray, Louis Friedman (founders) and Harry Ashmore (advisor), on the occasion of... -
Page 28: Index
IP address 8-9 decoder, discovering 8 Index EasyIP Mixer, discovering 9 location of the camera 13 anatomy of the camera 10-11 locations of connectors 8-11 anatomy of the decoder 8 anatomy of the mixer 9 audio 8-9 minimum requirements, EasyIP system 16- ports 8-9 mount 19-20 installing 19... - Page 29 Installation Guide for EasyIP Systems status light 8-11 behavior 8, 10-11 storage environment 21 switch settings 19 temperature, operating and storage 21 trigger ports 9 USB port 8-9 visual packing list 5-7 visual parts identification 8-11 wall mount 19 installing 19 warranty 12...
- Page 30 ©2020 Legrand AV Inc. Vaddio is a registered trademark of Legrand AV Inc. Audinate®, the Audinate logo and Dante® are registered trademarks of Audinate Pty Ltd. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations.
