Pelican 1920 Instruction Manual

GENERAL CARE AND MAINTENANCE
1. Clean o-rings with a soft clean cloth to insure that
sealing area is free of dirt that could destroy the o-ring
seal.
2. Apply a light coat of clear silicone grease on the o-rings
occasionally if turning action becomes too difficult.
3. Remove the tail cap and wipe the rear threads of the
1920 flashlight body and inside of the tail cap with a
soft clean cloth occasionally to avoid intermittent
flashlight operation.
CAUTION
To prevent the 1920 flashlight coming on
accidentally when the flashlight is stored, remove the
batteries. If the 1920 flashlight is turned on while it is in
a container, the flashlight can overheat and damage the
flashlight or the material of the surrounding area.
SPECIFICATIONS
BULB: LED
Batteries: (2) Two AAA alkaline or other
equivalent alkaline batteries

O-RING MAINTENANCE

Check closely for cuts, scratches, or otherwise damaged
o-ring or mating lens lip surface. Remove any dirt or foreign
matter from o-ring sealing surfaces. Keep threads, o-ring
groove and inside lip of lens lubricated with silicone grease.
See Warranty information for replacement of o-ring.
Battery Safety Information
WARNING: HANDLE AND STORE BATTERIES
PROPERLY TO AVOID INJURY OR DAMAGE
BATTERIES CAN BE DANGEROUS!
Most battery issues arise from improper handling of
batteries, and particularly from the use of damaged
or counterfeit batteries. Please review the informa-
tion below to avoid serious injury and/or damage to
your property.
Alkaline Batteries
1. For those lights with hazardous location safety
approvals for explosive environments please
be advised that the safety approval is only valid
for the specified battery type manufacturer and,
where applicable, brand names that are displayed
on the flashlight and/or instructions sheets that
are supplied with the light. The use of other battery
technologies may reduce the performance of the
flashlight and will invalidate the safety approval.
2. Always read the battery manufacturers recom-
mendations for the appropriate use of the battery
technology/brand prior to using the flashlight.
3. When replacing the batteries:
a. Replace all the batteries at the same time.
b. Do not mix battery brands and old and new
batteries.
c. Always insert batteries correctly with regard
to polarity (+ and -) marked on the battery
and equipment.
4. Do not change batteries in a hazardous location.
5. Remove batteries from equipment if it is not to be
used for an extended period of time.
Always dispose of all batteries properly
at an approved battery recycling center.
PELICAN LIMITED LIFETIME GUARANTEE OF
EXCELLENCE
Pelican Products, Inc. guarantees its lights for a lifetime against
breakage or defects in workmanship. This guarantee does not
cover the lamp or batteries.
Pelican will either repair or replace any defective product, at
our sole option. TO THE EXTENT PERMITTED BY LAW, THE
REMEDIES HEREBY PROVIDED SHALL BE THE EXCLUSIVE
AND SOLE REMEDY OF THE PURCHASER.
TO THE EXTENT PERMITTED BY LAW: (A) THIS WAR-
RANTY IS IN LIEU OF ALL WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE; AND (B) ALL OTHER IMPLIED
WARRANTIES AND ANY LIABILITY NOT BASED UPON
CONTRACT ARE HERBY DISCLAIMED AND EXCLUDED.
TO THE EXTENT PERMITTED BY LAW, IN NO EVENT
SHALL PELICAN BE LIABLE FOR ANY INDIRECT, PUNITIVE,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR SPECIAL
DAMAGES, REGARDLESS OF WHETHER A CLAIM FOR
SUCH DAMAGES IS BASED ON WARRANTY, CONTRACT,
NEGLIGENCE OR OTHERWISE. To the extent permitted by
law, in no event shall Pelican's liability to the purchaser for dam-
ages hereunder exceed the purchase price of the product in
respect of which damages are claimed.
To make a warranty claim, the purchaser must contact Pelican
Products, Inc. at 23215 Early Avenue, Torrance, CA 90505 or
csrwarranty@pelican.com, or by calling 1-800-473-5422, exten-
sion 5. Any warranty claims shall be made by the purchaser as
soon as practicable. The purchaser must obtain a return authori-
zation number from Pelican Customer Service prior to returning
any product, and is responsible for paying for all warranty freight
costs. If Pelican determines that any returned product is not
defective, within the terms of this warranty, the purchaser shall
pay Pelican all costs of handling, return freight and repairs at
Pelican's prevailing rates.
All warranty claims of any nature are barred if the flashlight has
been altered, damaged or in any way physically changed, or
subjected to abuse, misuse, negligence or accident.
Some states and countries do not allow limitations on how
long an implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above limitation or
exclusion may not apply to you. This warranty gives you specific
legal rights, and you may have other rights which vary from state
to state and country to country.
In Australia: The benefits provided to you under this warranty are
in addition to your rights and remedies as a consumer under the
Competition and Consumer Act 2010 (Cth). Nothing in this war-
ranty limits the rights or obligations of a party under provisions of
the Competition and Consumer Act 2010 (Cth) in relation to the
supply to consumers of goods which cannot be limited, modi-
fied or excluded. If applicable, our goods come with guarantees
that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure
and compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. If you are not a
consumer under the Competition and Consumer Act 2010 (Cth),
then your rights may be limited.
To make a warranty claim, the purchaser must contact Pelican
Products Australia, Suite 2.33, West Wing, Platinum Bldg.,
Erina NSW 2250, Tel: +612 4367 7022. Any warranty claims
shall be made by the purchaser as soon as practicable. The
purchaser must obtain a return authorization number from
Pelican Customer Service prior to returning any product, and is
responsible for paying for all warranty freight costs. If Pelican
determines that any returned product is not defective, within the
terms of this warranty, the purchaser shall pay Pelican all costs
of handling, return freight and repairs at Pelican's prevailing
rates. In the event that Pelican determines that any returned
product is defective, within the terms of this warranty, Pelican
shall pay the purchaser all reasonable costs of the purchaser in
making claim under this warranty.
Lifetime Guarantee does not cover Roto Molded cases, AALG
products or fabric portion of backpacks. Refer to www.pelican.
com/warranty for full details.
PELICAN PRODUCTS
TM
23215 Early Avenue • Torrance, California 90505 USA
Tel 310.326.4700 • FAX 310.326.3311 • www.pelican.com
PELICAN CANADA
TM
10221-184 St. • Edmonton, Alberta T5S 2J4
Tel 780.481.6076 • FAX 780.481.9586
PELI PRODUCTS, S.L.U.
TM
c/ Provença, 388, Planta 7 • 08025 • Barcelona, Spain
Tel: +34 934 674 999 • Fax: +34 934 877 393
1923-311-001 5-9158 Rev A
© 2013 Pelican Products NO/13
All trademarks are registered and/or unregistered trademarks
of Pelican Products, Inc., its subsidiaries and/or affiliates.
PELICAN
Cat. #1920
1920
LED
INSTRUCTION MANUAL

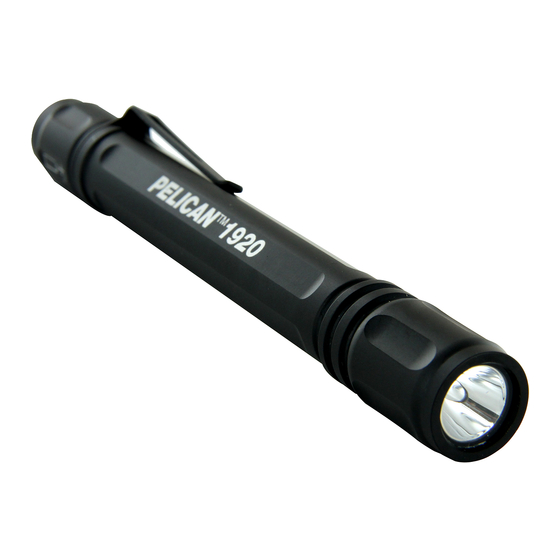

This compact flashlight produces an ultra bright
light beam by using a LED powered by (2) two
AAA 1.5V alkaline batteries. The 1920 flashlight is
designed for easy use with one hand operation
and has a dual-switch mode for constant-on and
momentary-on. The 1920 flashlight body is made
by high precision CNC machines from
aircraft-grade aluminum alloy for the most durable
construction. The 1920 flashlight is water resistant.

TO INSERT BATTERIES

1. Remove the tail cap by turning counter-clockwise.
2. Install (2) two AAA alkaline batteries with
+ terminal facing to the head assembly.
3. Replace the tail cap onto the flashlight
by turning clockwise until sealed.

OPERATION

High > Low > Off
1. MOMENTARY -
Gently depress the tail button for momentary
operation.
Press once for high, press again (within a half
second) to change from high to low.
2. CONSTANT ON -
• Single click for High
• Three clicks (no more than a half
second between clicks) for low
3. LIGHT-OFF -
Press the tail button to turn OFF.

TO CHANGE BATTERIES

1. Remove the tail cap by turning
counter-clockwise until it comes off the
rear of the 1920 flashlight.
2. Remove the (2) two used batteries
from the 1920 flashlight.
3. Install the (2) two new AAA alkaline batteries
with + terminal facing to the head assembly.
4. Replace the tail cap by turning clockwise
until sealed.
TM
