Pelican 7060 LED Owner's Manual

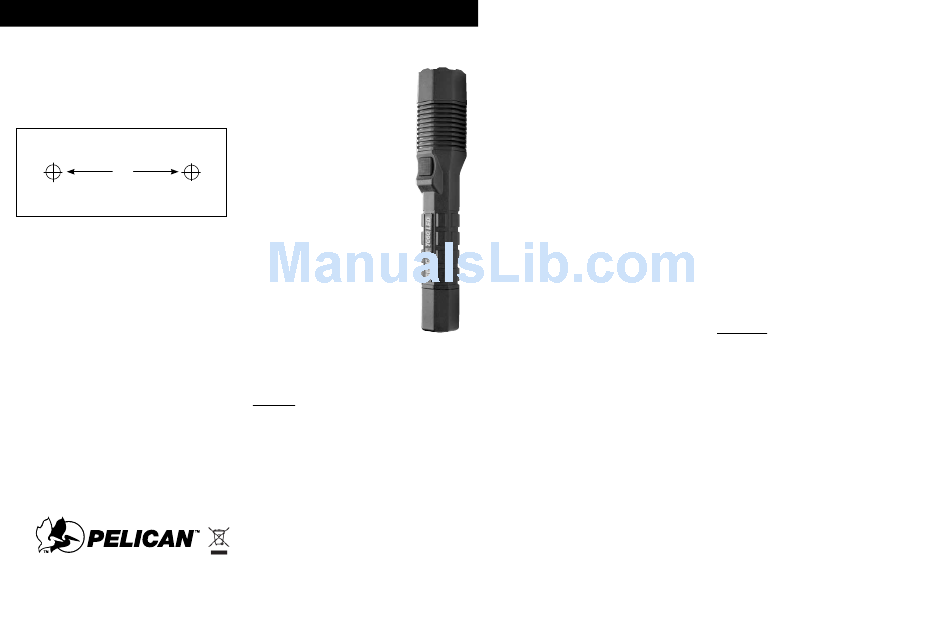

Mounting Template
Use template below to mount to wall or any flat surface, using #10
screws.
Plantilla de montaje
Utiliza la plantilla de más abajo para montar el producto en una
pared u otra superficie plana, con tornillos del nº 10.
Gabarit de montage
Utiliser le gabarit fourni ci-contre pour monter le produit sur un mur
ou sur une surface plane quelconque en utilisant les vis nº 10.
1.74"
Pelican Products, Inc. guarantees its products for a lifetime against
breakage or defects in workmanship. This guarantee does not cover the
lamp or batteries (rechargeable or alkaline). All warranty claims of any
nature are barred if the flashlight has been altered, damaged or in any
way physically changed, or subjected to abuse, misuse, negligence or
accident. Refer to www.pelican.com/warranty for full details.
Pelican Products, Inc., garantiza sus productos de por vida contra
roturasodefectosdefabricación.Estagarantíanocubrelalámparanilaspilas
(recargables o alcalinas). Las reclamaciones de garantía de cualquier
clase se considerarán nulas en caso de que la linterna haya sufrido
alteraciones, daños o modificaciones físicas de cualquier tipo, o bien se
haya hecho un mal uso, un uso abusivo, o haya sufrido negligencias o
accidentes. Encontrará más información en www.pelican.com/warranty.
Les produits de Pelican Products, Inc., sont garantis à vie contre
la casse et les défauts de fabrication.Cette garantie ne couvre pas les
ampoules ni les batteries (alcalines ou rechargeables). Toute demande
de prise en charge sous garantie, de quelque nature que ce soit, sera
refusée si la torche a été modifiée, endommagée ou physiquement
changée d'une façon ou d'une autre ou encore sujette à un traite-
ment abusif, une mauvaise utilisation, une négligence ou un accident.
Pour obtenir des informations complètes, visitez le site www.pelican.com/
warranty.
23215 Early Ave. • Torrance, CA 90505
(310) 326-4700 • FAX (310) 326-3311 • www.pelican.com
7063-311-000 5-1907 Rev B © 2011 PELICAN PRODUCTS JL/11
All trademarks are registered and/or unregistered trademarks
of Pelican Products, Inc., its subsidiaries and/or affiliates.
PELICAN
CAT. #7060
Owner's Manual
7060 LED
WARNING: Before disassembling any
part of the 7060 LED flashlight, ensure
that the flashlight has not been
operating for five (5) minutes.
During operation, the LED module
can become extremely hot and
may cause injury if touched.
Flashlight Operation
The 7060 LED is a high performance flashlight
for use by professionals. This flashlight comes
equipped with a high output LED pre-focused
lamp that emits a strong tight beam of white
light. There is no need to focus the 7060 LED.
DO NOT SHINE THIS FLASHLIGHT
DIRECTLY INTO ANY PERSON'S EYES:
THIS MAY RESULT IN INJURY.
Your 7060 LED battery pack comes to you partially
charged and needs to be fully charged prior to use.
To Attach the Power Cord to
the Charger Base
1. Rotate the charger so that the base is facing
towards you.
2. Take the right angled plug from the power
transformer and push the metal end into the
socket (the transformer socket is located in a pocket in the base).
3. Feed the cord into the channel leading from the pocket.
4. Attach the Power Cord to the electrical supply.
NOTE: The Charger LED will turn red when the power is supplied.
Charging To charge the 7060 LED:
CHARGER
The charger is capable of charging the battery pack in under 5 hours.
The LED Charge Lights will indicate where the battery is in the charge cycle
as follows:
Solid Red = 7060 Not Connected
Flashing Red Light = 7060 Charging
Solid Green Light = 7060 Fully Charged
There is no need to fully discharge the 7060 LED before charging
the battery. Charging can occur whenever required and the 7060
LED can be left indefinitely in the charger housing without fear of
over-charging.
To Charge:
1. Turn off the 7060 LED.
2. Snap the 7060 LED into the arms of the charger with the switch
facing towards you and the round charger contacts engage with
the 7060 LED contacts. The LED will turn from a
SOLID RED to a FLASHING RED to indicate the charging cycle.
3. When the LED turns SOLID GREEN the battery pack is fully
charged.
NOTE: A flashing green LED indicates a charging problem. Remove the
flashlight from the charger and clean the charging contacts. If the problem
persists, please return the flashlight for warranty related repair.
TM
Battery Replacement
After approximately 500 full charge/discharge cycles, the LI-ION
battery stick will no longer hold a charge and must be replaced.
The battery stick is available wherever Pelican flashlights are sold
or directly from Pelican Products Customer Service.
To replace the battery stick:
1. Unscrew the tail switch located at the rear of the 7060 LED.
2. Remove the battery stick.
3. Insert the new battery stick following the direction
on the battery decal.
4. Replace the tail switch & tighten it all the way down.
NOTE: Please act responsibly when disposing of the LI-ION Battery Stick. This part is
recyclable and should not be disposed of in the municipal waste system. Please check
with your local waste disposal authority for information.
Battery Care
• Do not over discharge your flashlight in an attempt to reduce a
"memory" condition. This practice is unnecessary as modern
LI-ION batteries, when used in flashlights such as the 7060
LED are highly unlikely to develop this condition. In addition,
deep discharging of the batteries may cause the batteries to
vent potentially dangerous gases and electrolytes.
O-ring Maintenance
Check closely for cuts, scratches, or otherwise damaged O-ring or
mating lens lip surface. Remove any dirt or foreign matter from
O-ring sealing surfaces. Keep threads, O-ring groove and inside
lip of lens lubricated with silicone grease. See Warranty information
for replacement of O-ring.
To turn on the light momentarily:
Gently press down on the switch cover and the 7060 LED will
operate until pressure is released.
To turn on the 7060 LED for continual use:
Firmly press down on the switch cover until a "click" is heard and
the 7060 LED will operate. Press down on the switch again to turn
off the 7060 LED.
Charger Mounting
The 7060 LED Charger Base can be permanently mounted in
most positions (except upside-down) in vehicles. Two mounting
holes are provided to enable attachment using #10 screws.
The right angle plug must be connected before the
charger can be mounted (see above).
Vehicle Installation
The 7060 LED charger can be permanently installed in most
vehicles and this operation should be performed by a professional
auto technician. The charger should not be installed upside-down
since certain conditions may cause the 7060 LED to be ejected
from the charger. When installing the charger, ensure that the
Direct Wiring Rig is connected to an ignition key-switched line.
The high amperage draw of this charger may drain the vehicle's
battery if connected directly to the battery.
REPLACEMENT PARTS
CAT. # DESCRIPTION
6057F 110V TRANSFORMER FOR CHARGER
6061F DIRECT WIRING RIG FOR CHARGER
7070 DESK/DASH SMART CHARGER BASE UNIT
8056F 12V PLUG-IN CHARGER CORD FOR CHARGER
7069 REPLACEMENT LI-ION BATTERY PACK
7052 YW TRAFFIC WAND (Yellow)
7052 OR TRAFFIC WAND (Orange)
PELICAN 7060 LED
MANUAL DE INSTRUCCIONES
ADVERTENCIA: Antes de desmontar cualquier
pieza de la linterna 7060 LED, asegúrese de que
ésta no se haya usado durante por lo menos cinco
(5) minutos. Durante su uso, el módulo LED puede
calentarse mucho y causar lesiones por contacto.
Uso de la linterna
El modelo 7060 LED es una linterna de alto rendimiento para
uso profesional. Viene equipada con una lámpara preenfocada
LED de gran potencia que emite un intenso haz de luz blanca.
No es necesario enfocar la linterna 7060 LED.
NO APUNTE LA LINTERNA DIRECTAMENTE A
LOS OJOS DE OTRA PERSONA, YA QUE PODRÍA
PROVOCARLE LESIONES.
La batería de la linterna 7060 LED se entrega parcialmente
cargada y debe cargarse por completo antes de su uso.
Para conectar el cable de alimentación
a la base de cargador:
1. Haga girar el cargador de modo que la base apunte hacia usted.
2. Tome el conector en ángulo recto del transformador de
corriente y conecte el extremo metálico en el enchufe situado
en un pequeño compartimento de la base.
3. Haga pasar el cable por el canal que llega hasta el compartimento.
4. Enchufe el cable de alimentación a una toma de corriente.
NOTA: El LED rojo del cargador se encenderá al recibir corriente.
Carga: Para cargar la linterna 7060 LED:
CARGADOR
El cargador puede cargar la batería en menos de 5 horas.
Las luces de carga indican en qué ciclo de carga se encuentra la
batería:
Luz roja fija = la linterna 7060 no está
conectada
Luz roja parpadeante = la linterna 7060 está en
proceso de carga
Luz verde fija = la linterna 7060 está
completamente cargada
No es necesario que la batería de la linterna 7060 LED se haya
descargado por completo antes de volver a cargarla. El proceso
de carga puede realizarse siempre que sea necesario y la linterna
7060 LED puede dejarse de forma indefinida en el cargador sin
miedo a que se sobrecargue.
Para cargar la linterna:
1. Apague la linterna 7060 LED.
2. Coloque la linterna 7060 LED en el soporte del cargador con el
interruptor mirando hacia usted, de modo que los contactos del
cargador encajen con los contactos de la linterna 7060 LED.
El indicador LED pasará de ROJO FIJO a ROJO
PARPADEANTE, lo cual indica que el proceso de carga ha
comenzado.
3. Cuando el indicador LED se ilumine de color VERDE FIJO, la
batería ya estará cargada.
NOTA: Si el indicador LED emite una luz verde parpadeante, quiere decir que se ha
producido un error de carga. Retire la linterna del cargador y limpie los contactos de
carga. Si el problema persiste, envíe a reparar la linterna de acuerdo con la garantía.
