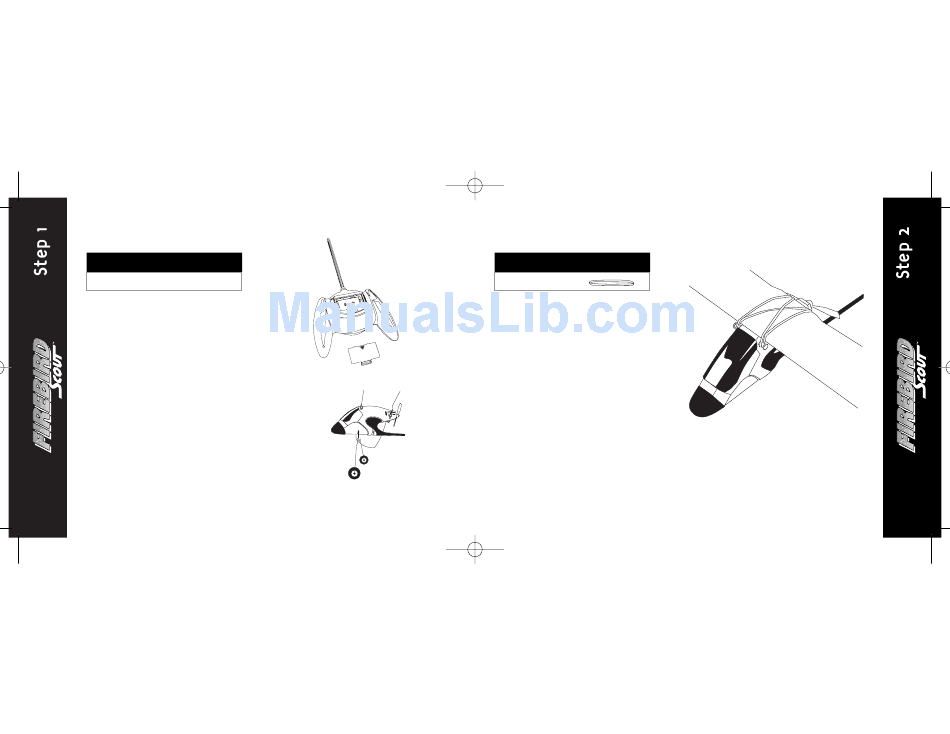

Wing Attachment; Landing Gear Installation - HobbyZone Firebird Scout Instruction Manual

7047_HBZ(FBS.manual).qxd 10/5/04 9:30 AM Page 4
Transmitter
Needed for Step 1
9V (1 pre-installed)
1. Your transmitter comes with the 9V battery
pre-installed.
2. To test, switch on the transmitter. The LED
should glow brightly.

Landing Gear Installation

Your Firebird Scout ™ includes landing gear. Simply slide
the landing gear into the allotted slot in the fuselage.
Once this is done, you are ready to attach the wing.
4

Wing Attachment

Needed for Step 2
Rubber Bands (x4)
Attaching the Wing
1. Center the wing on the fuselage by aligning the
center dot on the wing with the fuselage top
seam and by centering the half circle on the
wing's trailing edge over the fuselage center.
2. Secure the wing in place by attaching two rubber
bands across the middle and one on each side as
shown. Locate the rubber bands on the peg hooks
as close as possible to the fuselage sides.
3. Before each flight, make sure the front and
trailing edges of the wing are exactly centered
on the fuselage.
5
