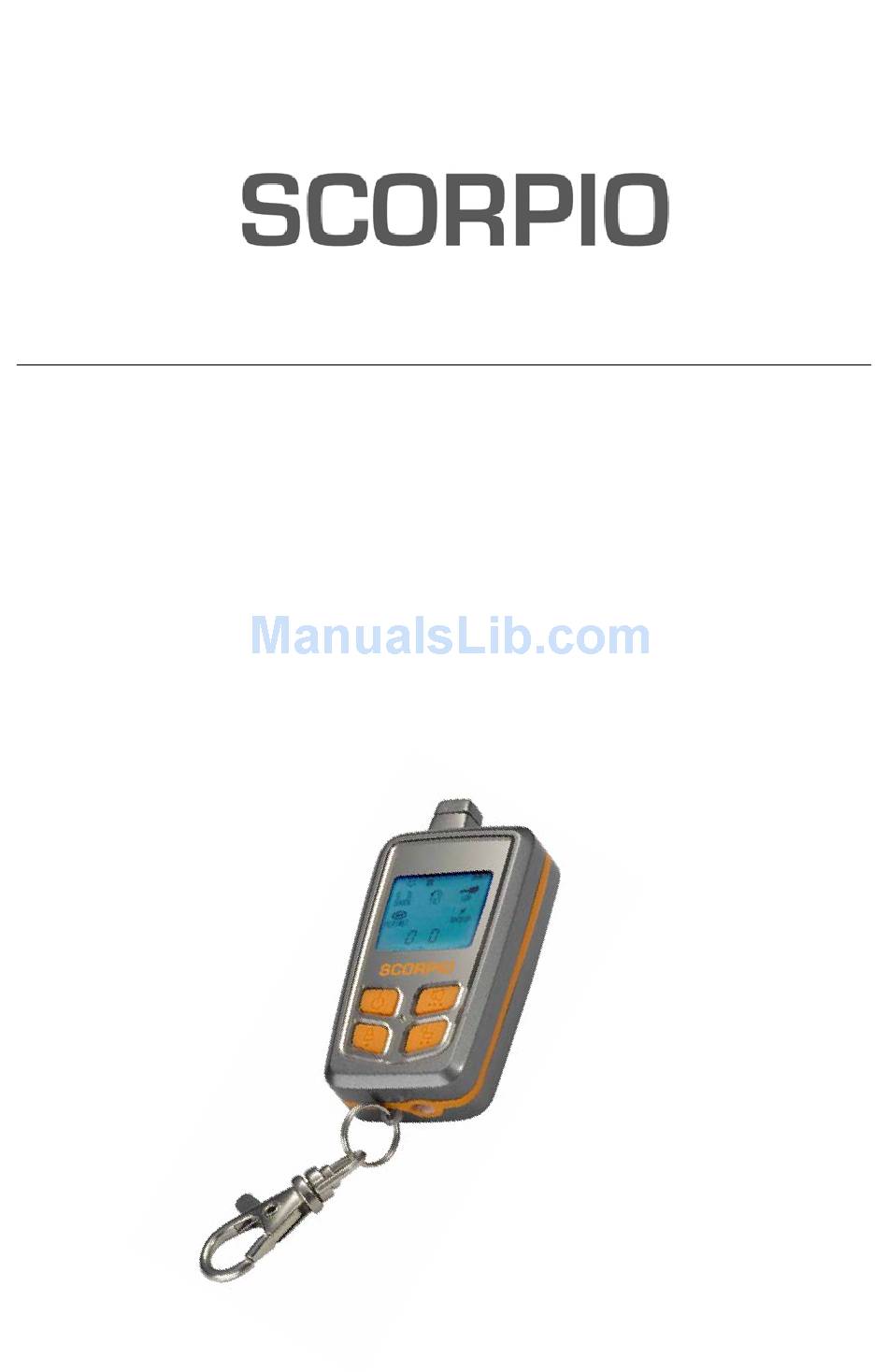

SR-i500SW / SR-i600
FM 2-Way Security System
INSTALLATION MANUAL
AND USER'S GUIDE

Advertisement

Table of Contents
loading

Summary of Contents for Scorpio SR-i500SW

  • Page 1 SR-i500SW / SR-i600 FM 2-Way Security System INSTALLATION MANUAL AND USER’S GUIDE...
  • Page 2: Table Of Contents

    Standard Features • Remote sensor control • ½ mile 2-Way FM Transceiver • Battery safeguard with “sleep • LCD Water proof / impact mode” resistant remote • Violation display with time stamp • Ultra low power drain MCM • Passive arming •...
  • Page 3: Installation

    Installation Components List MCM (Main Control Module) Remote Transceiver Accessory Harness Generic Installation Kit (GEN-1) Main Harness (HAR-1) Planning the Installation It is very important that before starting the installation of the security system, you carefully read the installation instructions and spend time planning the installation. By planning ahead you will be able to select the best approach in placing, securing and wiring the system to your specific motorcycle.
  • Page 4: Mounting The Components

    Mounting the Components Select a suitable location under the seat or in a side cover. Mount the MCM using Velcro or cable ties. Make sure that it is not exposed or easily reached. Routing the Antenna Wire The MCM includes an 18” antenna wire. The first 12” is a coaxial wire; the remaining 6” is the reception antenna wire.
  • Page 5: Connections

    Connections Fuse To Battery (+) Accessory HAR-1 Connector GEN-1 Black – To Ground (-) Grey – To Turn Signal Grey – To Turn Signal Orange – To Tail Light Note: Connect the (HAR-1) harness to the MCM only after installation is completed. If the battery is to be removed, disconnect this connector first.
  • Page 6: User's Guide

    User’s Guide Remote Transceiver Icons and Message Displays Alert Type Aud/Vibr System Status Signal Indicator Audible/ Silent Alert Indicator Perimeter Trigger Tilt Trigger Ignition Trigger Shock Trigger Battery Level Indicator Back up Power Clock Activated Button #2 Button # 1 Button #4 Button #3 Charger Input...
  • Page 7: Turning Transceiver On / Off

    Turning the Transceiver On/Off Note: Out of the box the transceiver is turned “off” by default and should be turned “on” to operate the alarm • To turn “on” , press and hold button #4 until the transceiver chips two times. The power is now “on”.
  • Page 8: Alarm Triggers

    Alarm Triggers When the system is triggered, the siren will sound and the turn signal lights will flash. The Transceiver’s LCD will display the following messages: If bike is bumped, the LCD displays icon. The siren on the bike will sound for 5 seconds and the lights will flash.
  • Page 9: Motorcycle Battery Status

    Motorcycle Battery Status When the voltage on the motorcycle battery drops below 11.2 volts The LCD displays icon. Locking the Transceiver’s buttons To “lock”, press button #4 for 2 sec. The Transceiver will beep and buttons will lock. To “unlock”, press button #4 for 2 sec. The Transceiver will beep and buttons will unlock. Checking Motorcycle Status and Violation Display with Time Stamp Press button #4.
  • Page 10: Programming And Customizing Instructions

    Programming and Customizing Instructions There are two types of programming mode: 1) Programming the Transceiver- To program the transceiver the MCM does not have to be installed or be within range. The programmable modes for the Transceiver are: • Transceiver Alert Type (Audible/Silent Vibrate). •...
  • Page 11: Selecting Auto/Manual Arming

    Selecting Auto/Manual Arming Enter the programming mode. Scroll to the icon and Press Button #1 to enter the arming selection screen. The LCD will display the current setting ([Act] or [PAS]) and the siren will chirp two or three times. To program follow these steps: 1.
  • Page 12: Setting Clock Time

    Setting Clock Time Enter the programming mode. Press button #4 repeatedly until the icon begins to flash. Press button #1 to select and enter clock setting mode. Press button #1 to scroll through ‘hour’, ‘minute’ settings. The selected item will be flashing.
  • Page 13: Optional Accessories Instructions

    Optional Accessories Perimeter Sensor (SN-5) Mounting the SN-5 The Perimeter sensor uses high frequency microwave technology to detect mass density movement around the motorcycle. The signal can transmit through the seat, fiberglass, leather and plastic, but not metal. It is recommended to place this sensor under the seat as close as possible to the center of the motorcycle.
  • Page 14 Ignition Disable / Anti-hijack Module (RID-5) Installation Cut the Ignition / Engine control wire (refer to options below) Attempt to start bike to test if correct wire is selected. If bike starts the wrong wire is selected. (contact Aritronix for assistance) If bike does not start, correct wire was selected continue to step 3.
  • Page 15: Back-Up Battery

    Back-up Battery (BAT-5) The back-up battery provides the system the ability to transmit information and activate the siren when power is interrupted. If power is ever interrupted while the system is activated the back-up battery will be engaged, the transceiver will receive a full alarm and the siren will sound in 25 second increments.
  • Page 16: Limited Warranty

    If after assistance from our trained staff it is determined that the Scorpio product may be faulty then you will provide with detailed information on processing a warranty claim. All warranty claims must contain a return authorization number (RA#).
