Pro-Form PFEL09911.0 User Manual page 13

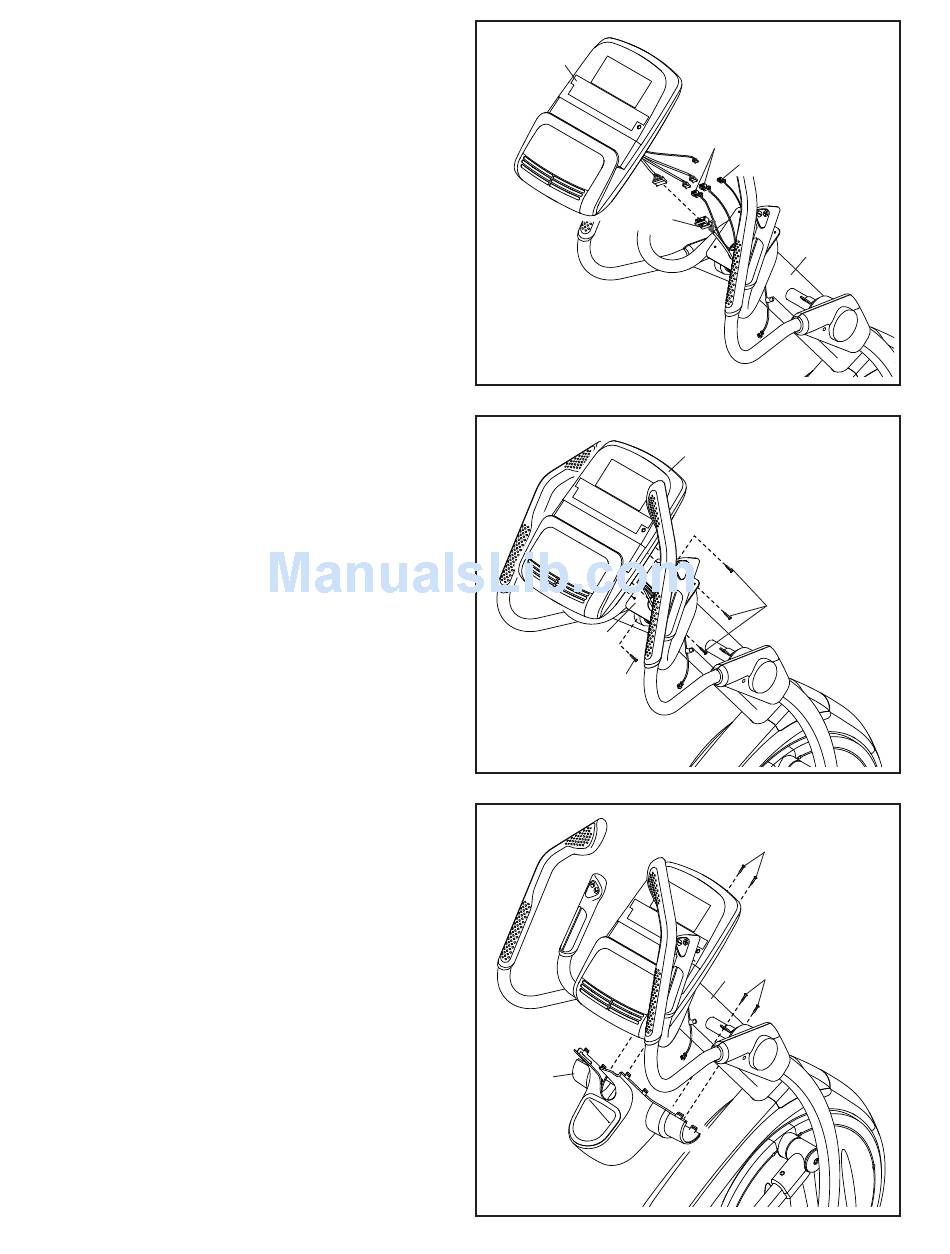

16. Untie and discard the wire tie on the Main
Wire (110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Main Wire (110), to the Right and
Left Sensor Wires (63, 69), and to the Extension
Wire (150).
Insert the excess wire into the Upright (4) or into
the Console (7).
17. Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four #8 x 1/2"
Screws (124).
18. Note: If you purchase the optional chest
heart rate monitor (see page 23), see
step 21 on page 14 to install the receiver
included with the heart rate monitor.
Orient the Rear Upright Cover (80) as shown.
Attach the Rear Upright Cover (80) to the Upright
(4) with four #8 x 3/4" Screws (123).
