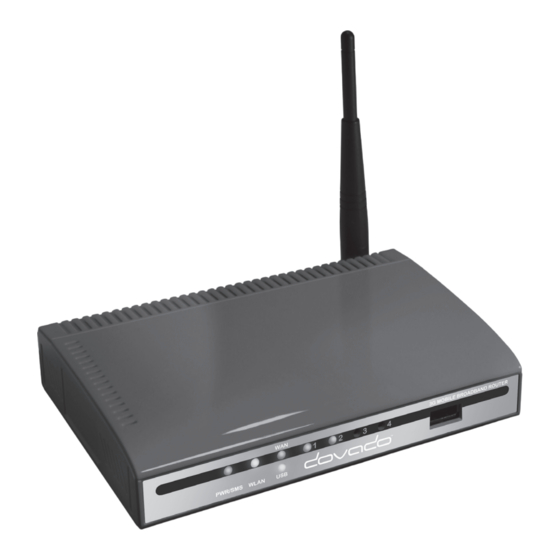

3GN USB Mobile Broadband Router
Quick Wizard Guide
& Reference Manual
The Mobile Choice for your Broadband Internet

Advertisement

Table of Contents
loading

Related Manuals for Dovado 3GN

Summary of Contents for Dovado 3GN

  • Page 1 3GN USB Mobile Broadband Router Quick Wizard Guide & Reference Manual The Mobile Choice for your Broadband Internet...
  • Page 2 3GN Quick Installation Guide With the Dovado 3GN you can access the Internet wirelessly. In addition to the 3GN you need a computer. The product can be set up using a common web browser. Hardware installation Before continuing, you will need to install the necessary hardware;...
  • Page 3 3. Anslut strömförsörjnings-aggregatet till ett vägguttag och till anslutningen märkt PWR på baksidan av din 3GN. 4. Observera att du aldrig skall ta bort USB-modemet från din 3GN när den är påslagen. Koppla alltid ur strömmen ur din 3GN innan du tar bort USB-modemet.
  • Page 4 After clicking on Login, you will be taken to the Home page, which will display all the information about your 3GN. Konfiguration von 3GN Ist Ihr Computer über Ethernet- Kabel oder Wireless LAN mit dem 3GN verbunden, öffnen Sie Ihren Internet-Browser, und rufen Sie folgende Adresse auf: Adresse: http://192.168.0.1/...
  • Page 5 Når du har klikket på ”Login” vil du komme til en webside som gir deg all informasjon om din router. Konfigurera din 3GN När du anslutit datorn till din 3GN med en nätverkskabel eller via det trådlösa nätverket så startar du din webb-läsare och skriver in följande adress: http://192.168.0.1/ Nu kommer du till 3GN’s inloggningssida och där skriver du in följande:...
  • Page 6 Wizard Configuration Go to Home and then click on Start Wizard link to start the setup wizard. It will be opened in a new window. Follow the steps below to finish the installation. The welcome screen presents the steps that you will be guided through. Click on Next to continue.
  • Page 7 Gå till Home och klicka sedan på Start Wizard-länken för att starta den förenklade konfigureringen. Ett nytt fönster öppnas, följ därefter stegen enligt nedan för att slutföra installationen. Välkommen-sidan visar vilka steg som du skall utföra för att konfigurera din 3GN. Klicka på Next för att fortsätta. Quick Wizard Guide...

  • Page 8: Set Password

    Set Password It is recommended that you now change the default password for the 3GN configuration pages. Type in the new password and confirm it, then click on Next to continue. Passwort ändern Wir empfehlen Ihnen, dass Sie das von uns vorgegebene Passwort in Ihr eigenes Passwort ändern.
  • Page 9 Aseta salasana Suosittelemme, että muutat reititinasetusten esiasetetun salasanan. Syötä uusi salasana ja vahvista se. Jatka asennusta napsauttamalla ”Next”. Skriv inn passord Vi anbefaler at du endrer det forhåndsinstilte passordet før konfigurering av router. Skriv inn et nytt passord og bekreft det. Klikk på ”Next” for å fortsette.
  • Page 10 Wireless LAN If you do not have any devices using Wireless LAN, choose disable for the Wireless LAN option, and then click on Next to continue (this will skip the encryption page). If you have a device using wireless LAN, enable Wireless LAN.
  • Page 11 Langaton LAN Jos sinulla ei ole laitteita, jotka käyttävät langatonta LAN:ia (”Wireless LAN”), sammuta se ja napsauta sitten ”Next” jatkaaksesi (näin voit jättää väliin salaussivun). Jos sinulla on laite, joka käyttää langatonta LAN:ia (”Wireless LAN”), aktivoi se siinä tapauksessa. Voit myös muuttaa työasemalla näkyvän SSID:n, kun verkkohakua suoritetaan.
  • Page 12 Encryption Here you can activate encryption if you would like to restrict access of wireless users onto your private network. Choose Enable to enable encryption, it is recommended that you select 128 bits as Encryption Strength and then type in a key. The key is needed by all Wireless LAN clients to access your private network.
  • Page 13 Salaus Voit aktivoida salauksen täällä, jos haluat estää muita langattoman LAN:in käyttäjiä pääsemästä yksityiseen verkkoosi. Valitse ”Enable”, jos haluat aktivoida salauksen. Suosittelemme, että valitset WEP-salauksen ja syötät salasanan. Suosittelemme, että valitset ”Encryption Strength” –arvoksi 128 bittiä, mikä vastaa 13 kirjaimen/numeron yhdistelmää. Kirjoita sen jälkeen salausavaimesi.
  • Page 14 This section configures the mobile USB modem you are to use with the 3GN. If the SIM-card which you are using from your mobile operator came with a PIN code, then enter it into the Pin Code (if any) field.
  • Page 15 Konfigurera Internet Här konfigureras USB-modemet som du skall använda med din 3GN. Om SIM-kortet som du fått från din mobil-operatör har en PIN-kod så skriv in koden i fältet Pin Code. Om du inte har någon PIN-kod så lämna fältet blankt.
  • Page 16 Restart You have now finished the installation. Click on Close to save the changes and the 3GN will restart in order for the changes to take effect. Neustart (Restart) Nachdem Sie die Installation abgeschlossen haben, klicken Sie auf Close, um die Änderungen zu speichern.
  • Page 17 Du er nå ferdig med installasjonen. Klikk på ”Close” for å lagre endringene. Routeren må restartes for at endringene skal fungere. Återstart Du har nu konfigurerat din 3GN. Klicka på Close för att spara din konfigu- ration, din 3GN kommer nu också automatiskt att göra en återstart med den nya konfigurationen.
  • Page 18 SMS Configuration The 3GN supports SMS on a selected range of USB-modems, please verify if your modem is supported on www.dovado.com/modems You will also need to verify that your mobile broadband subscription supports SMS. To activate, go to SMS and click on Settings, then select Activate the SMS handler.
  • Page 19 Et blinkende grønt lys på PWR/sms-lysdioden indikerer at enheten har mottat en sms. Lysdioden slukker når du åpner innboksen for sms. SMS Configuration Din 3GN stödjer SMS för vissa USB-modem, kontrollera om ditt modem har SMS-stöd på www.dovado.com/modems Du måste även kontrollera att ditt mobila bredbands-abonnemang stödjer SMS.

  • Page 20: Table Of Contents

    Reference Manual Table of Contents Introduction Package contents Additional required items Reference Manual Hardware installation Reset button Modem switch Modem Connecting Status Overview Bar Data Traffi c Usage Report SMS Notifi cation of Data Traffi c Usage SMS Remote Control Remote Commands Notifi cation SMS Home Automation...

  • Page 21: Introduction

    Introduction Thank you for choosing the Dovado USB Mobile Broadband Router (3GN). This quick user guide will help you set up your 3GN to access the Internet. Package contents Before continuing to the next section, make sure all of the listed items below are included in your package.

  • Page 22: Hardware Installation

    DC Power Input The reset button The location of the reset button is at the back of the 3GN. If you need to erase all the inserted parameters and password, along with restoring the factory defaults settings, then hold down the reset button for approximately 8 seconds.

  • Page 23: Modem

    Modem On the page, you will be able to insert all Modem->Modem Settings the valid inputs in order to access the internet via your mobile operator. There are several relevant bits of information which are necessary in order to complete this task successfully: •...
  • Page 24 Modem On/Switch disconnect the Internet connection by toggling the On/Off switch, located at the back of your 3GN. Note: This switch only works for the inserted USB modem, and not the Ethernet WAN port.“ The following scenarios should assist you in enabling your 3GN for Internet access, depending on which type of USB modem you have inserted into the 3GN.

  • Page 25: Connecting Status Overview Bar

    Atop of the user interface, a bar displays an overview of your Internet connection. This information sits outside the security zone of your 3GN, and does not need to be accessed via an authorized login, thus saving time on checking the connection status.

  • Page 26: Data Traffi C Usage Report

    Data Traffi c Usage Report It is possible to keep track of how much Internet traffi c is consumed each new calendar month. A log is also held for the previous month. The chart displays how much data has been downloaded as well as uploaded per Internet interface, be it a USB modem or Ethernet WAN port.

  • Page 27: Sms Notifi Cation Of Data Traffi C Usage

    Note: By using your USB modem directly in the computer, the 3GN will only be able to display the amount of data the router itself has consumed when the USB modem is inserted into it. It will not display what the USB modem has consumed;...

  • Page 28: Sms Remote Control

    SMS Remote Control If your SIM card and 3G USB modem support SMS (see www.dovado.com) in the 3GN, then you’ll be able to employ this feature to remotely control the 3GN from your mobile phone. A short text command can be sent from your phone to administer any of these tasks instantly.

  • Page 29: Remote Commands

    For each number that is entered, and tagged with a “Notifi cation” tick mark, an individual SMS will be sent by the 3GN in case of any notifi cation. By doing so, this will generate a larger load of SMS traffi...

  • Page 30: Notifi Cation Sms

    Notifi cation SMS Unexpected events which occur in regards to the Internet connection along with the overall status of the 3GN can be reported by SMS to all numbers listed for “Notifi cation”. Notifi cation messages can be sent to recipients for the following events:...

  • Page 31: Home Automation

    Advanced Settings The Dovado 3GN has a built-in fi rewall. In this section you will learn more about this and other security features. Besides password protecting the 3GN confi guration pages it is possible to restrict the Wireless LAN devices that may access your private network and the public Internet through the 3GN.

  • Page 32: Wlan Settings

    Wireless Band. If you experience problems at high data rates, then we recommend that you select a lower data rate.. (Service Set Identifi er) is the name of the 3GN that will appear SSID in other Wireless LAN clients when they perform a network search.
  • Page 33 This means it is still possible for all clients in range to log onto the 3GN, but without the correct key they will not be able to communicate with it. To activate this setting,...
  • Page 34 is identical to WEP Open System except that this mode WEP Shared Key also uses authentication. This is less suitable from a security perspective since it is possible to retrieve the key from the authentication process. is the third and strongest security option. Choose it from WPA-PSK drop-down menu and then enter a pass phrase Authentication Type...
  • Page 35 MAC Address control is a security function that limits which clients can access your private network and the public Internet through your 3GN. Enter the MAC address of the client that you want to grant access to your network (the MAC address of a client running Microsoft...

  • Page 36: Lan Settings

    Network Settings 3GN. However, in most cases you do not need to change this setting. Note that the IP address for the 3GN is used on your private network only. It is not possible to change the subnet mask. Click on...
  • Page 37 Restart LAN->UPnP: The settings for Universal Plug and Play. The 3GN supports Universal Plug and Play. UPnP is a feature that enables client application on devices behind the 3GN to automatically trigger the opening of TCP/UDP ports through the fi rewall in the 3GN.

  • Page 38: System Settings

    : If you have misplaced or forgotten your password, you can reset Note it to “password” by pushing the Reset button on the back of the 3GN. : By pushing the Reset button, you will also be clearing out Warning all the parameters and restoring everything back to the original factory default settings.
  • Page 39 In most cases, the operator which provides the internet System->DNS: service towards your 3GN is handing out a constantly-shifting (dynamic) IP address. The Dynamic DNS feature allows you to contact your 3GN via an easily accessible hostname, such as ”3gn.mydyndns.com”. Advanced settings...

  • Page 40: Internet

    For Internet Connections, WAN Port Settings and Connection Tracker push and make your settings. Internet Internet Connections The 3GN can also be used with a regular fi xed broadband connection from an ADSL- or Cable-modem. To select your primary broadband connection, push and then select . Make...
  • Page 41 WAN Port Settings The default setting is that your operator automatically will give you an IP address, should your operator have given you a static (specifi c) IP address than select and fi ll in the given information in Manual settings the relevant fi...
  • Page 42 Connection Tracker In order to ensure maximum internet availability you can use the Connection Tracker feature. When inserting a minimum of 2 IP addresses, these addresses will be ”pinged” with an interval that you specify in minutes in the fi eld. Interval After entering the selected IP addresses, you can test the ping function to these addresses by pushing the...
  • Page 43 3GN. • Auto fail-over to secondary interface. (WAN-to-USB or USB-to-WAN). 3GN is connected to both a USB modem and a fi xed broadband connection. Both of these interfaces must be properly confi gured in the event of a fail-over between each other.

  • Page 44: Upgrading The Fi Rmware

    FTP Method: If you have an FTP server you have the choice to upgrade the 3GN via FTP. Once the upgrade fi le is on the FTP server in the root directory, log in to the confi guration pages as described in section Confi guring the 3GN.

  • Page 45: Confi Gurations

    In order to use the FTP upgrade option, the FTP server which contains Note: the fi rmware image must be accessible via an anonymous FTP account. Close the web browser and wait until the 3GN has restarted. The 3GN is now ready to use. Confi gurations This function allows you to create, as well as restore, the working confi...

  • Page 46: Troubleshooting

    Q1: My 3GN is not connecting to the Internet! Do all of the following: First check if the USB LED on the 3GN is OFF. If so, continue with • the following steps. If not, then see the answers to Question 2.
  • Page 47 Q2: The USB LED on the front of the 3GN is lit, yet I can’t surf! How come? Test to see if you can do the following (in listed order): Ping the 3GN’s internal IP address. In Windows, click on...

  • Page 48: Support

    ), do not forget to support@dovado.com provide the following information (it can be found on the label at the bottom of the 3GN unit or under Home in the confi guration pages): Model number or product name • Serial number of the product •...

  • Page 49: Guidelines For Safe And Effi Cient Use

    Guidelines for safe and effi cient use Product care and maintenance Your 3GN is a highly sophisticated electronic device. To get the most out of your 3GN, be sure to read the following text about product care, safety and effi cient use.

  • Page 50: Limited Warranty

    Limited Warranty Save your original receipt. You will need it for warranty/repair claims. Should your Dovado Product need warranty service, return it to the place of purchase or contact your local Dovado Call-Centre for further information. Dovado guarantees this Product to be free from defects in material Our warranty.
  • Page 51 All implied warranties, including, and without limitation, the implied warranties or merchantability or fi tness for a particular purpose, are limited to the duration of this limited warranty. Dovado shall under no circumstances be liable for incidental or consequential damages of any nature whatsoever.
  • Page 52 CE mark for European Harmonized Standards...
  • Page 53 THE FCC REGULATION WARNING (for U.S.A) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 54 You may obtain a complete corresponding machine-readable copy of the source code of such software under the GPL or LGPL at http://www.dovado.com/ Alternatively; Dovado offers to provide such source code to you on CD-ROM for a charge covering the cost of performing...
