Related Manuals for Dovado 3GN
Summary of Contents for Dovado 3GN

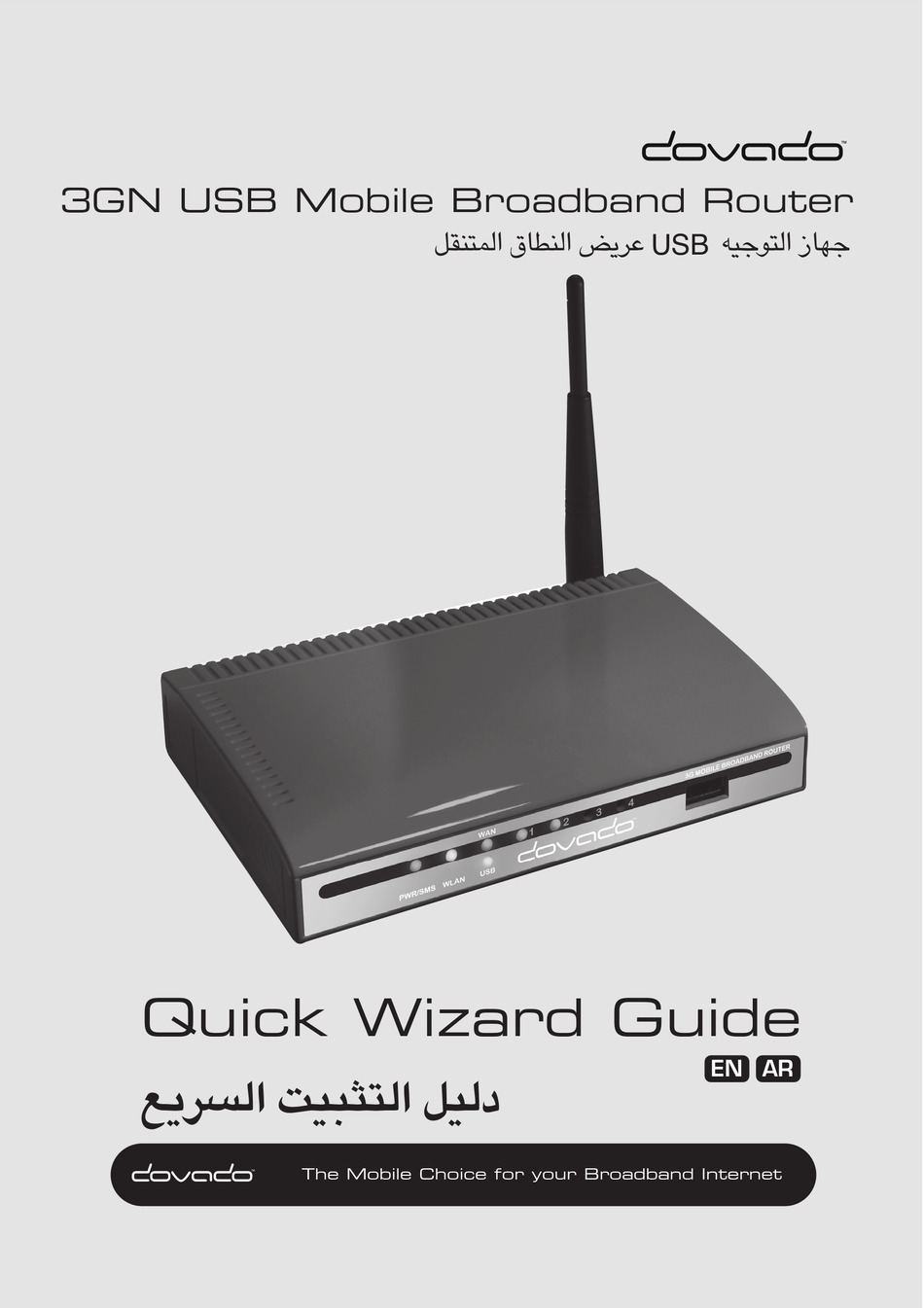

- Page 1 3GN USB Mobile Broadband Router M I q ∞ L ∑ ‚ « « ∞ M ´ d | § O ∞ ∑ u U “ « § N Quick Wizard Guide º « ∞ ∂ O ∞ ∑ ∏...
-
Page 2: Hardware Installation
3GN Quick Installation Guide With the Dovado 3GN you can access the Internet wirelessly. In addition to the UMR you need a computer.The product can be set up using a common web brow- ser. Hardware installation Before continuing, you will need to install the necessary hardware;... - Page 3 Address: http://192.168.0.1/ Username: admin Password: password After clicking on Login, you will be taken to the Home page, which will display all the information about your 3GN. § O “ ¢ § ≈ ∞ u ‰ Å « ∞ u ®...
-
Page 4: Wizard Configuration
Wizard Configuration Go to Home and then click on Start Wizard link to start the setup wizard. It will be opened in a new window. Follow the steps below to finish the installation. The welcome screen presents the steps that you will be guided through. Click on Next to continue. -
Page 5: Set Password
Set Password It is recommended that you now change the default password for the 3GN configuration pages.Type in the new password and confirm it, then click on Next to continue. ¸ d Ë « ∞ L Ø K ¢ F Æ... -
Page 6: Wireless Lan
Wireless LAN If you do not have any devices using Wireless LAN, choose disable for the Wireless LAN option, and then click on Next to continue (this will skip the encryption page). If you have a device using wireless LAN, enable Wireless LAN.You can also change the SSID, which is displayed in the client when a network search is performed.When you are done, click on Next to continue. - Page 7 Encryption Here you can activate encryption if you would like to restrict access of wireless users onto your private network. Choose Enable to enable encryption, it is recommended that you select 128 bits as Encryption Strength and then type in a key.The key is needed by all Wireless LAN clients to access your private network.
- Page 8 Configure Internet This section configures the mobile USB modem you are to use with the UMR. If the SIM-card which you are using from your mobile operator came with a PIN code, then enter it into the Pin Code (if any) field. In order for the UMR to successfully establish an Internet via your mobile operator, you will require the Access Point Name (APN) as provided by your operator.
- Page 9 Restart You have now finished the installation. Click on Close to save the changes and the 3GN will restart in order for the changes to take effect. b ¡ « ∞ ∂ œ … ≈ ´ U ‚ ö ≈ ¨...
-
Page 10: Sms Configuration
SMS Configuration The 3GN supports SMS on a selected range of USB-modems, please verify if your modem is supported on www.dovado.com/modems. You will also need to verify that your mobile broadband subscription supports SMS. To activate, go to SMS and click on Settings, then select Activate the SMS handler. -
Page 11: Guidelines For Safe And Efficient Use
Service should only be performed by Certified Service Centers. Do not allow children to play with the 3GN as it contains small parts that could be detached and create a choking hazard. - Page 12 Further info: U ≠ O ‹ ≈ u ± U ± F K www.dovado.com The Mobile Choice for your Broadband Internet 3GN-WIZ-A001© Dovado FZ-LLC...
