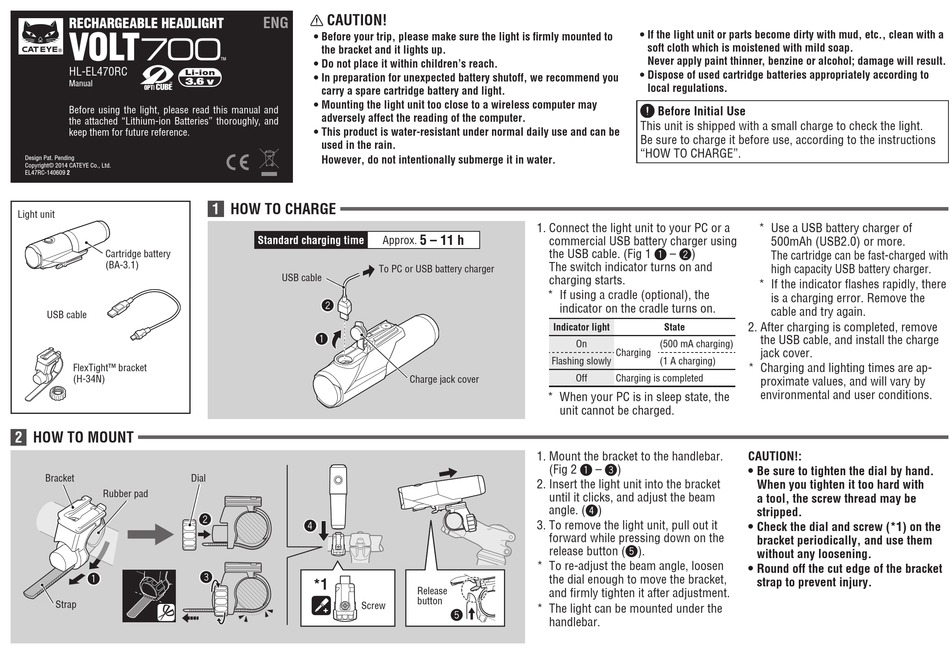

Cateye HL-EL470RC Manual

RECHARGEABLE HEADLIGHT
HL-EL470RC
Manual
Before using the light, please read this manual and
the attached "Lithium-ion Batteries" thoroughly, and
keep them for future reference.
Design Pat. Pending
Copyright© 2014 CATEYE Co., Ltd.
EL47RC-140609 2

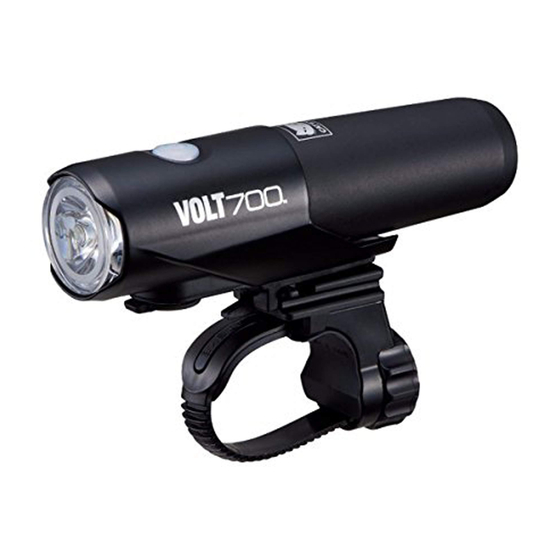

Light unit
Cartridge battery
(BA-3.1)
USB cable
FlexTight™ bracket
(H-34N)
2 HOW TO MOUNT
Bracket Dial
Rubber pad
1
Strap
CAUTION!
ENG
• Before your trip, please make sure the light is fi rmly mounted to
the bracket and it lights up.
• Do not place it within children's reach.
• In preparation for unexpected battery shutoff, we recommend you
carry a spare cartridge battery and light.
• Mounting the light unit too close to a wireless computer may
adversely affect the reading of the computer.
• This product is water-resistant under normal daily use and can be
used in the rain.
However, do not intentionally submerge it in water.
1 HOW TO CHARGE
Standard charging time
To PC or USB battery charger
USB cable
2
1
2 2
4
3
*1
Screw
1. Connect the light unit to your PC or a
5 – 11 h
Approx. commercial USB battery charger using
the USB cable. (Fig 1 1 – 2 )
The switch indicator turns on and
charging starts.
* If using a cradle (optional), the
indicator on the cradle turns on.
Indicator light
Flashing slowly
Charge jack cover
* When your PC is in sleep state, the
unit cannot be charged.
1. Mount the bracket to the handlebar.
(Fig 2 1 – 3 )
2. Insert the light unit into the bracket
until it clicks, and adjust the beam
angle. ( 4 )
3. To remove the light unit, pull out it
forward while pressing down on the
release button ( 5 ).
* To re-adjust the beam angle, loosen
the dial enough to move the bracket,
Release and fi rmly tighten it after adjustment.
button
* The light can be mounted under the
5
handlebar.
• If the light unit or parts become dirty with mud, etc., clean with a
soft cloth which is moistened with mild soap.
Never apply paint thinner, benzine or alcohol; damage will result.
• Dispose of used cartridge batteries appropriately according to
local regulations.
Before Initial Use
This unit is shipped with a small charge to check the light.
Be sure to charge it before use, according to the instructions
"HOW TO CHARGE".
2. After charging is completed, remove
State
On (500 mA charging)
Charging
(1 A charging)
* Charging and lighting times are ap-
Off Charging is completed
CAUTION!:
• Be sure to tighten the dial by hand.
When you tighten it too hard with
a tool, the screw thread may be
stripped.
• Check the dial and screw (*1) on the
bracket periodically, and use them
without any loosening.
• Round off the cut edge of the bracket
strap to prevent injury.
* Use a USB battery charger of
500mAh (USB2.0) or more.
The cartridge can be fast-charged with
high capacity USB battery charger.
* If the indicator fl ashes rapidly, there
is a charging error. Remove the
cable and try again.
the USB cable, and install the charge
jack cover.
proximate values, and will vary by
environmental and user conditions.
