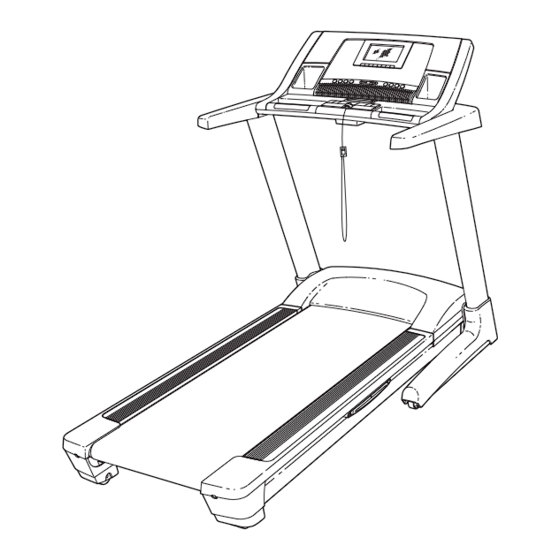

Model No. NTL14908.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
PLEASE DO NOT CONTACT THE
STORE; please contact
Customer Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
1-888-825-2588
CALL TOLL-FREE:
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.nordictrackservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NordicTrack NTL14908.0
Summary of Contents for NordicTrack NTL14908.0
- Page 1 USER'S MANUAL Model No. NTL14908.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? As a manufacturer, we are commit- ted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE DO NOT CONTACT THE STORE;...
-
Page 2: Warning Decal Placement
Apply the decal in the location shown. Note: The decals may not be shown at actual size. NordicTrack is a registered trademark of ICON IP, Inc. - Page 3 3. Use the treadmill only as described. page 15. To purchase a surge suppressor, see your local NordicTrack dealer or call the tele- 4. Place the treadmill on a level surface, with at phone number on the front cover of this man- least 8 ft.
- Page 4 18. The treadmill is capable of high speeds. other than the procedures in this manual Adjust the speed in small increments to should be performed by an authorized service avoid sudden jumps in speed. representative only. 19. The pulse sensors are not medical devices. 27.
- Page 5 33. Upon completion of any service or repairs to • Use a jumper wire not smaller than No. 6 the treadmill or the television, ask the service AWG (13.3mm ) copper, or the equivalent technician to perform safety checks to con- when a separate antenna-grounding elec- firm that the unit is in proper operating condi- trode is used.
- Page 6 BEFORE YOU BEGIN Thank you for selecting the revolutionary NordicTrack ing this manual, please see the front cover of this man- ® ELITE XT treadmill. The ELITE XT treadmill offers an ual. To help us assist you, note the product model impressive selection of features designed to make number and serial number before contacting us.
- Page 7 ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of the walking belt or the shipping carton.
- Page 8 2. Identify the Right Upright (88). See the inset drawing. Tie the wire tie in the Right Upright se- curely around the end of the Upright Wire (86). With the help of a second person, hold the Right Upright near the Right Base Cover (117). Then, pull the other end of the wire tie up through the rectangular hole in the bottom of the Right Wire...
- Page 9 4. With the help of a second person, hold the handrail assembly near the Uprights (85, 88). Handrail Connect the 50" A/V Wire (80) to the 25" A/V Assembly Wire (107) and the 50" TV Cable (81) to the 25" TV Cable (108).
- Page 10 6. Set the console assembly face down on a soft surface to avoid scratching the console assem- bly. Slide the three tabs on the Console Accent (102) into the console assembly. Slot Press on the ends of the Console Accent (102) so that they “snap”...
- Page 11 8. Attach the console assembly to the handrail as- sembly with nine #8 x 3/4" Screws (7). Start all Console Assembly nine Screws before tightening them. Handrail Assembly 9. Locate the two cardboard stands from step 1. With the help of a second person, raise the front of the treadmill and insert the crossbar on the Base (115) into the cutouts in the cardboard stands as shown.
- Page 12 11. Orient the Storage Latch (78) so that the large barrel and the Latch Knob (77) are in the posi- tions shown. Remove the tie from the upper end of the Storage Latch (78). Attach the upper end of the Storage Latch to the bracket on the Frame Crossbar (39) with a 3/8"...
- Page 13 If you purchase the optional chest pulse sensor (see page 29), follow the steps below to install the re- ceiver included with the chest pulse sensor. 1. Make sure that the power cord is unplugged. Remove the indicated #8 x 3/4" Screws (7) from the Pulse Receiver Cover (95) on the back of the Console Assembly (A).
- Page 14 Before operating the television, you must connect an antenna or a 75 ohm CATV cable to the 75 ohm ter- minal or the 96" A/V Wire to the audio/video input jacks. Note: Use a CATV cable to connect to an external source such as a cable box, satellite TV box, VCR, or analog cable.
- Page 15 Grounded Outlet Box the right). To purchase a surge suppressor, see Adapter your local NordicTrack dealer or call the telephone Surge Suppressor number on the front cover of this manual and order part number 146148, or see your local electronics store.
- Page 16 CONSOLE DIAGRAM FEATURES OF THE CONSOLE coaches you through every step of your workout. One demo iFIT card is included. Additional iFIT cards are available separately. To purchase iFIT cards, go to The treadmill console offers an impressive selection of www.iFIT.com or call the telephone number on the features designed to make your workouts more effec- front cover of this manual.
- Page 17 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE 1. Insert the key into the console. IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER at the left.
- Page 18 5. Follow your progress with the displays. 6. Measure your heart rate if desired. The matrix—When you Note: If you use the handgrip pulse sensor and the optional chest pulse sensor at the same select the manual mode, time, the console will not display your heart the matrix will display a rate accurately.
- Page 19 HOW TO USE A PRESET WORKOUT speed setting for the current segment. At the end of each segment, a series of tones will sound and the 1. Insert the key into the console. next segment of the profile will begin to flash. The new speed and incline settings will appear in the See HOW TO TURN ON THE POWER on page 17.
- Page 20 HOW TO CREATE A CUSTOM WORKOUT cline of the treadmill as desired by pressing the speed and incline buttons. 1. Insert the key into the console. When the first segment of the workout ends, a se- See HOW TO TURN ON THE POWER on page 17. ries of tones will sound and the current speed and incline settings will be saved in memory.
- Page 21 HOW TO USE A CUSTOM WORKOUT If desired, you can redesign the workout while using it. To change the speed setting or the in- 1. Insert the key into the console. cline setting for the current segment, simply press the speed or incline buttons. When the current See HOW TO TURN ON THE POWER on page 17.
- Page 22 3. Press the Start button to start the workout. HOW TO USE AN IFIT CARD 1. Insert the key into the console. A moment after you press the Start button, the treadmill will automatically adjust to the first speed See HOW TO TURN ON THE POWER on page 17. and incline settings of the workout.
- Page 23 HOW TO USE A PULSE WORKOUT 5. Press the Start button to start the workout. CAUTION: A moment after you press the Start button, the treadmill will automatically adjust to the first speed If you have heart prob- and incline settings of the workout. Hold the lems, or if you are over 60 years of age and handrails and begin walking.
- Page 24 To stop the workout at any time, press the Stop using an antenna, make sure that it is properly button. To restart the workout, press the Start but- connected and adjusted for optimal reception (see ton. The walking belt will begin to move at 1 mph; HOW TO CONNECT AN ANTENNA on page 14).
- Page 25 HOW TO OPERATE THE REMOTE CONTROL Press the Info button to view information about the cur- rent program and the broadcast or cable signal. The first time you use the re- mote control, insert batteries Press the CC button repeatedly to turn on or turn off (see HOW TO CHANGE THE closed captioning.
- Page 26 HOW TO ADJUST TELEVISION SETTINGS 4. Adjust the time settings. You must use your remote control to adjust television Adjust the OSD (on-screen display) duration, sleep settings. Press the Menu button to enter the main timer, time zone, or daylight savings time. The clock menu or to return to a previous menu.
- Page 27 6. Locate and save channels. After all valid chan- nels available in your Select CATV or AIR. Select CATV to receive chan- area have been Program Name Skip nels through a CATV cable. Select AIR to receive saved into the televi- FD 3803 KQUED-SD channels through an antenna.
- Page 28 THE INFORMATION MODE An “E” for English miles or an “M” for metric kilometers will The console features an information mode that keeps appear in the Calorie/Incline track of the total distance that the walking belt has display. Press the Speed in- moved and the total number of hours that the treadmill crease button to change the has been used.
- Page 29 HOW TO USE THE STEREO SOUND SYSTEM HOW TO ADJUST THE CUSHIONING SYSTEM To play music or audio books The treadmill features a cushioning system that re- through the consoleʼs stereo duces the impact as you walk or run on the treadmill. speakers, you must connect To increase the firmness of the walking platform, step your MP3 player, CD player,...
- Page 30 HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If you do not do this, you may damage the treadmill when you fold it. Remove the key and unplug the power cord.
- Page 31 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. Pivot the frame downward and release the latch knob. Note: To release the latch knob, it may be necessary to push the frame forward as you pull the latch knob to the left.
- Page 32 TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
- Page 33 Lower the treadmill (see HOW TO LOWER THE TREADMILL FOR USE on page 31). Remove the four indicated #8 x 3/4" Screws (7), and remove the Motor Hood (66). Next, locate the Reed Switch (48) and the Magnet (124) on the left side of the Pulley (54). Turn the View Pulley until the Magnet is aligned with the Reed Switch.
- Page 34 b. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 3 to 4 in.
- Page 35 PROBLEM: The remote control does not function correctly SOLUTION: a. Make sure you are standing on the treadmill, holding the remote control near the television and pointing the remote control directly at the console. b. If your remote control is still not functioning correctly, the batteries should be replaced; most re- mote control problems are the result of low batteries.
- Page 36 EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning any time. During the first few minutes of exercise, your exercise program, consult your physician. body uses carbohydrate calories for energy. Only after This is especially important for persons over the first few minutes of exercise does your body begin the age of 35 or persons with pre-existing...
- Page 37 PART LIST—Model No. NTL14908.0 R1008A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description 3/8" x 1 1/4" Patch Bolt Lift Arm 3/8" x 3 3/4" Patch Bolt Reed Switch Clamp 1/4"...
- Page 38 Key No. Qty. Description Key No. Qty. Description 96" A/V Wire Right Base Cover Console Accent Left Base Cover 25" Wire Harness Wire Tie Right Bottom Handrail Cover iFIT Demo Card Handrail Frame 5/32" Hex Key Left Bottom Handrail Cover 18"...
- Page 39 EXPLODED DRAWING A—Model No. NTL14908.0 R1008A...
- Page 40 EXPLODED DRAWING B—Model No. NTL14908.0 R1008A...
- Page 41 EXPLODED DRAWING C—Model No. NTL14908.0 R1008A...
- Page 42 EXPLODED DRAWING D—Model No. NTL14908.0 R1008A...
- Page 43 EXPLODED DRAWING E—Model No. NTL14908.0 R1008A...
-
Page 44: Limited Warranty
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
