Patent Pending
Model No. NTL14951
Serial No.

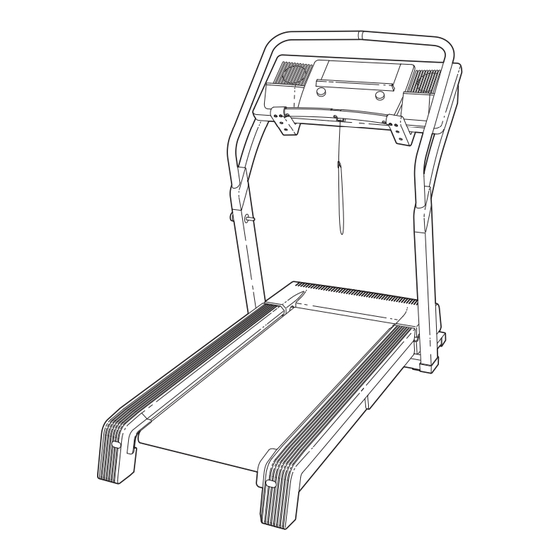

Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NTL14951 and is the answer not in the manual?

Questions and answers

Related Manuals for NordicTrack NTL14951

Summary of Contents for NordicTrack NTL14951

  • Page 1 Patent Pending Model No. NTL14951 Serial No. Find the serial number in the location shown below. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if there are missing parts, we will guar-...

  • Page 2: Table Of Contents

    HOW TO FOLD AND MOVE THE TREADMILL ........

  • Page 3: Important Precautions

    11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11. To purchase a surge suppressor, see your local NordicTrack dealer or call 1-888- 825-2588 and order part number 146148, or see your local electronics store.
  • Page 4 SAVE THESE INSTRUCTIONS The decals shown here have been placed on your treadmill. If a decal is missing or illegible, please call our Customer Service Department, toll-free, to order a free re- placement decal (see ORDERING REPLACEMENT PARTS on page 35).

  • Page 5: Before You Begin

    The model number of the treadmill is NTL14951. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

  • Page 6: Assembly

    This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
  • Page 7 2. With the help of a second person, carefully tip the Frame (55) and the Uprights (85) down to the position shown. Make sure that the Base Extensions (90) remains in place. Carefully slide the Base Cover (92) onto the base of the Uprights (85).
  • Page 8 5. Cut the tie securing the Pulse Wire (74) to the right Upright (85). Hold the Pulse Bar Assembly (69) near the crossbar on the Uprights. Connect the Pulse Wire to the wire in the Pulse Bar Assembly. The connectors should slide together easily and snap into place.
  • Page 9 8. Set the console assembly on the Uprights (85). Make sure that no wires are pinched. Finger tighten a Console Bolt (72) with a Star Washer (67) into the lower hole in each Upright (only one side is shown). Next, finger tighten a Short Console Bolt (112) with a Star Washer (67) into the upper hole in each Upright (85) (only one side is shown).
  • Page 10 12. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 31). To protect the floor or carpet from damage, place a mat under the treadmill.

  • Page 11: Operation And Adjustment

    (see drawing 1 at the right). To purchase a surge suppressor, see your local NordicTrack dealer or call 1-888-825- 2588 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS).

  • Page 12: Features Of The Console

    The console also offers four heart rate programs that control the speed and incline of the treadmill to keep your heart rate near a target heart rate during your workouts. Note: You must wear the optional chest pulse sensor to use the heart rate programs.

  • Page 13: How To Turn On The Power

    Stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 12) and attach the clip securely to the waistband of your clothes.
  • Page 14 To see the total number of miles that the walking belt has moved since the treadmill was purchased, press the Odometer button; the words “Total Miles” and the total number of miles will appear in the dis- play.
  • Page 15 When you are finished exercising, remove the key. Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi- tion or the treadmill will be damaged.

  • Page 16: How To Use A Preset Program

    If the speed and/or in- cline of the treadmill is about to change, the speed setting and/or incline setting will flash in the dis- play to alert you.
  • Page 17 When the program ends, make sure that the in- cline of the treadmill is at the lowest setting. Next, remove the key from the console and put it in a safe place. Note: If the display remains lit after the key is removed, the console is in the “demo”...

  • Page 18: How To Create A Custom Program

    Speed and Incline buttons. Every few times a Speed but- ton is pressed, an additional indicator will appear or disappear in the Current Segment column.

  • Page 19: How To Use A Custom Program

    If the speed and/or in- cline of the treadmill is about to change, the speed setting and/or incline setting will flash in the display to alert you.

  • Page 20: How To Use A Heart Rate Program

    Adjust the cushioning system as desired. See step 6 on page 14. Follow your progress with the display. See step 7 on page 14. Measure your heart rate if desired. See step 8 on page 15. Turn on the fans if desired. See step 9 on page 15.
  • Page 21 (7.5 mph) and your heart rate is still too far below the target heart rate set- ting, the incline of the treadmill will also increase to bring your heart rate closer to the target heart rate setting.
  • Page 22 HOW TO CONNECT THE TREADMILL TO USE IFIT.COM PROGRAMS To use iFIT.com MP3 or CD programs, the treadmill must be connected to your MP3 player, CD player, portable stereo, home stereo, or computer. See pages 22 and 23 for connecting instructions. To use iFIT.com programs directly from our Web site, the treadmill must be connected to your computer.
  • Page 23 HOW TO CONNECT YOUR HOME STEREO Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B. A. Plug one end of a long 1/8” to RCA stereo audio cable (available at electronics stores) into the input jack on the console.
  • Page 24 HOW TO USE AN IFIT.COM MP3, CD, OR VIDEO PROGRAM To use an iFIT.com MP3, CD, or video program, the treadmill must be connected to your MP3 player, CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO USE IFIT.COM PROGRAMS on pages 22 to 24.
  • Page 25 Stop button or remove the key and go to step 1 on page 24. Note: If the speed and/or incline of the treadmill does not change when a “chirp” is heard: • Make sure that the letters “iFIT” appear in the display and that the time is not flashing in the display.
  • Page 26 Additional options are soon to be available. See www.iFIT.com for details. To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 23. In addition, you must have an internet connection and an internet service provider.
  • Page 27 THE INFORMATION MODE/DEMO MODE The console features an information mode that keeps track of the total number of hours that the treadmill has been used and the total number of miles that the walk- ing belt has moved. The information mode also allows...

  • Page 28: How To Fold And Move The Treadmill

    2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the latch pin is aligned with the indicated hole in the frame. Insert the latch pin into the hole.

  • Page 29: To Lower The Treadmill For Use

    HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the pin on the latch knob.

  • Page 30: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
  • Page 31 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, in- sert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened. c. If the walking belt still slows when walked on, please call our Customer Service Department, toll- free.

  • Page 32: Conditioning Guidelines

    For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone. Aerobic Exercise If your goal is to strengthen your cardiovascular sys- tem, your exercise must be “aerobic.”...

  • Page 33: Suggested Stretches

    SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.

  • Page 34: Part List

    PART LIST—Model No. NTL14951 To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual. Key No. Qty. Description Left Foot Rail Foot Rail Screw Front Left Endcap Screw Platform Screw, Front Latch Warning Decal 3/4”...

  • Page 35: Ordering Replacement Parts

    Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information: • the MODEL NUMBER OF THE PRODUCT (NTL14951) • the NAME OF THE PRODUCT (NordicTrack • the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual) •...
