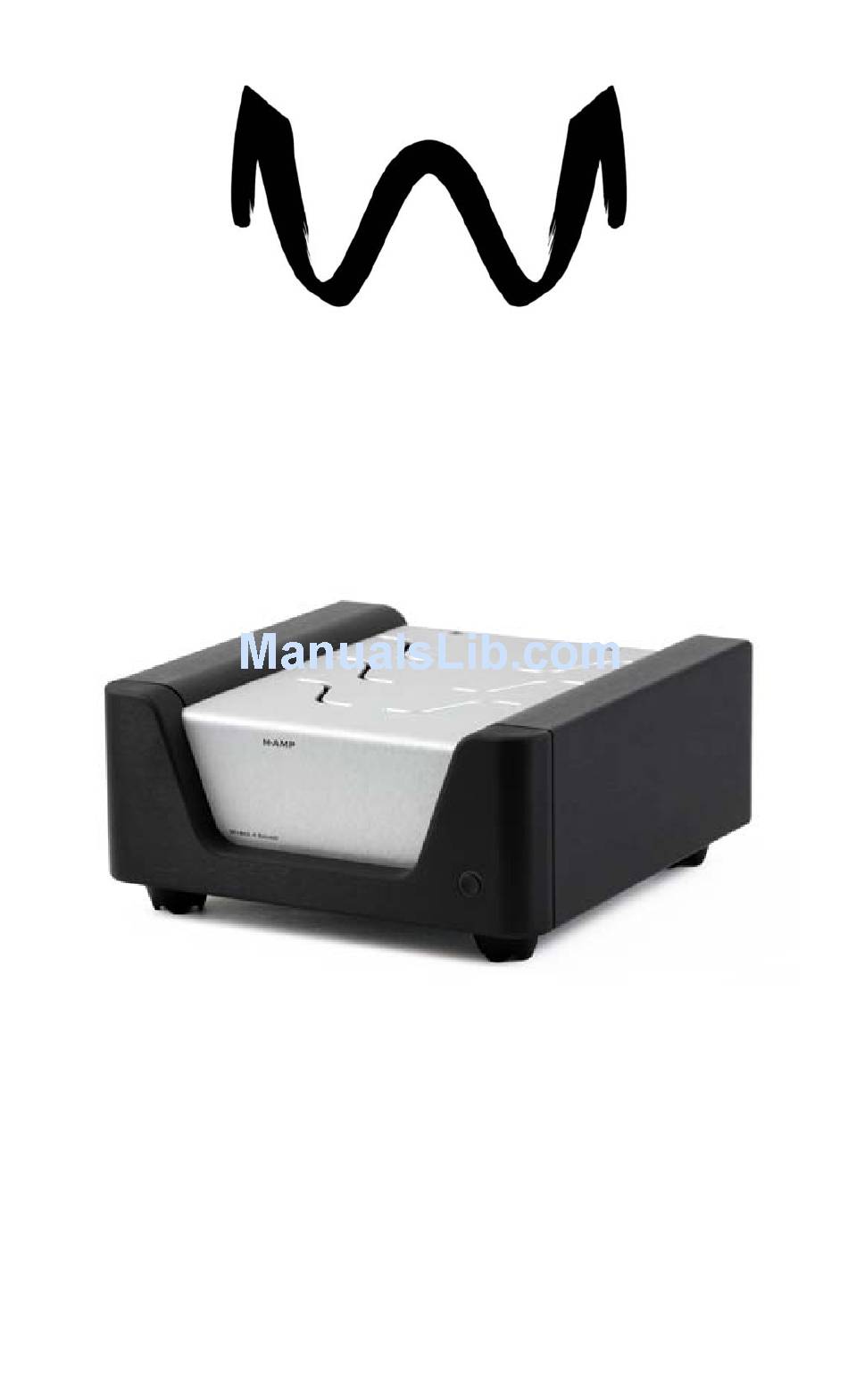

- Page 1 Wyred 4 Sound mAMP mini-AMP Owner’s Manual **IMPORTANT** Check position of AC mains switch prior to connecting the unit to a power source ©Wyred 4 Sound 2013 All rights reserved. v1.1...
-
Page 2: Table Of Contents
Table of Contents Register Your Product READ FIRST Important Package Contents Introduction Design and Feature Overview AC Mains Voltage Switch Getting Connected Powering your Integrated Amplifier “Break-In” Period RCA/XLR Input Select DC Trigger Back Panel Diagram Troubleshooting Got Hum? Warranty Coverage Service Specifications... -
Page 3: Register Your Product
Please read the entire manual before connecting this product to any existing components. This manual contains detailed information regarding the design, operation and features of the Wyred 4 Sound mAMP. Damage due to misuse or failure to properly follow instructions will not be covered under warranty. See “Warranty”... -
Page 4: Introduction
The mAMP utilizes the latest generation of ICEpower® technology in addition to a completely redesigned input stage. The new amplifier design reproduces audio with negligible wasted energy. Despite the mAMP’s small footprint, it is able to provide exceptional dynamic performance while offering jaw dropping micro-details. -
Page 5: Ac Mains Voltage Switch
Located on the left side of the rear panel is an AC mains switch. When changing the 2 position slider switch the mAMP will need to be unplugged and powered down for at least 2 minutes. It is very important to ensure that the slide switch is in the proper position before applying power. -
Page 6: Getting Connected
Powering your amplifier In order to turn the mAMP on, the switch located on the rear must be in the “on” position. A green light surrounding the power button on the front will illuminate. There is a built in 2 second delay after initially turning the switch on in the rear of the unit before you can press the power button. -
Page 7: Rca/Xlr Input Select
AV receivers that have a compatible trigger feature. The trigger out will be active whenever amp is powered on and allows it to trigger on other components such as another mAMP. There will be a slight delay in the trigger out to help smooth any possible power-up surges. -
Page 8: Back Panel Diagram
Damage to the amplifier or connected components due to an unintended musical blast will not be covered under warranty. 1. Verify that the power cord is securely plugged into the wall and the mAMP. 2. Make sure that the Voltage Selector Switch is in the proper position. Also be sure to check the fuse which is located in the IEC inlet. -
Page 9: Troubleshooting
7. Verify that the interconnects are working by replacing them with a different set from a connection that you know works. If these cables were used in the current setup and the only component that has changed is the mAMP continue to the next step. -
Page 10: Warranty Coverage
If a hardware defect arises and a valid claim is received within the Warranty Period, at its option, Wyred 4 Sound will either (1) repair the hardware defect at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product. -
Page 11: Warranty Coverage
Service Provider will help determine whether your product requires service, and if it does will inform you how Wyred 4 Sound will provide it. Wyred 4 Sound or its Authorized Service Providers will provide warranty service on products that are tendered or presented for service during the Warranty Period, as permitted by law. -
Page 12: Service
Service Department have been made in advance. Proof of purchase from an authorized Wyred 4 Sound dealer, distributor or agent will be required for warranty validation at the time of hand delivery. Use the original packaging to ensure the safe transit of the product to the factory, dealer, or distributor. -
Page 13: Specifications
Specifications Typical THD+N 8Ω (10W out) 0.002% Power Output 8Ω @ 0.2% THD+N 255W Power Output 8Ω @ 1.0% THD+N 277W Power Output 4Ω @ 0.2% THD+N 430W Power Output 4Ω @ 1.0% THD+N 462W Output Idle Noise < 125µV Frequency Response 20Hz--20kHz ±... - Page 14 Wyred 4 Sound PH: 805-466-9973 Fx: 805-462-8962 Email: support@wyred4sound.com pg. 12...
