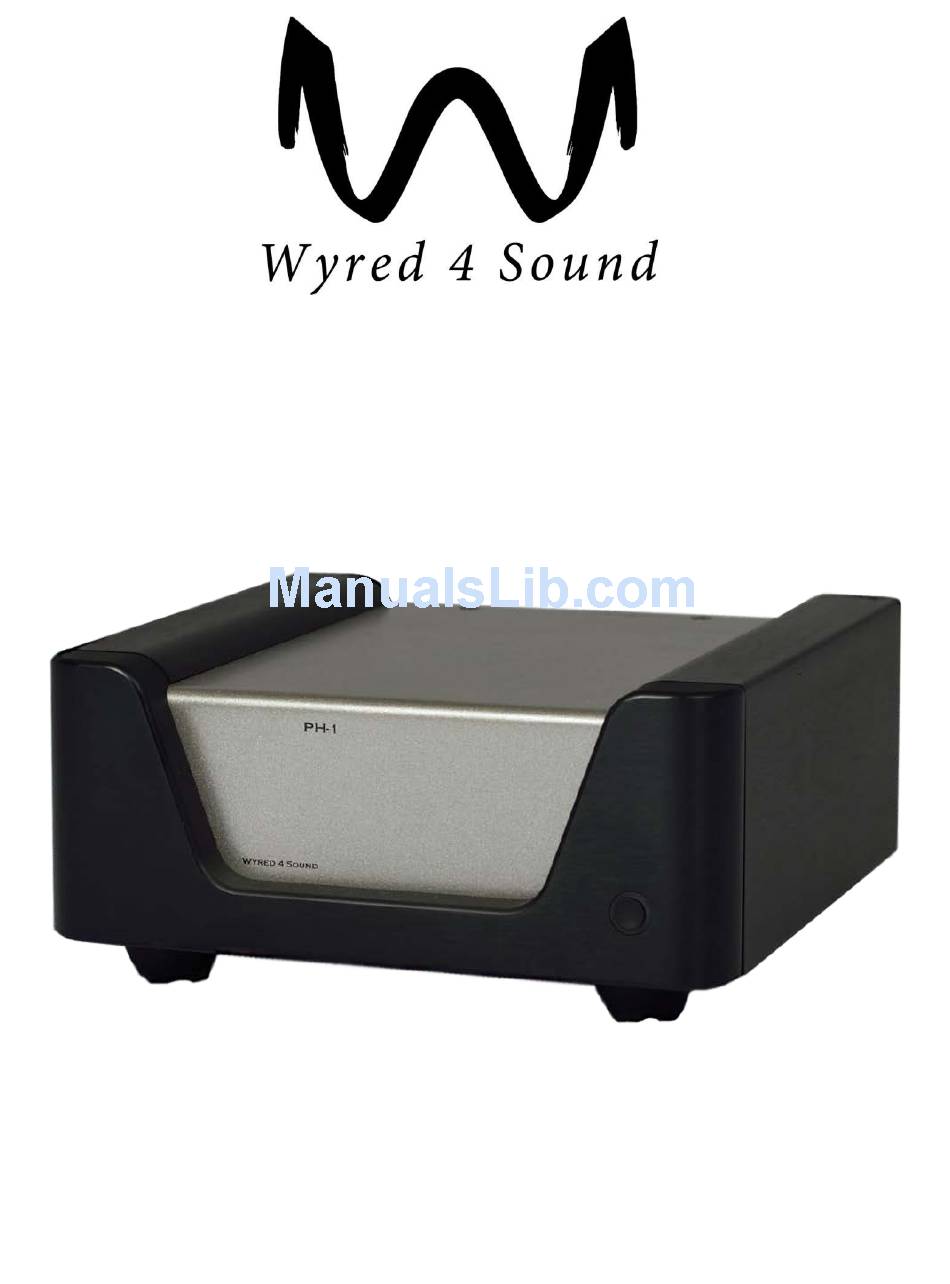

- Page 1 PH-1 Phono-Stage with External Power Supply Owner’s Manual...
- Page 2 Important Safeguards Package Contents Introduction & Design Features Unpacking your PH-1 Front Panel Back Panel Diagram Using the Phono-Stage Specifications Troubleshooting Warranty Coverage 9-10 Obtaining Warranty Coverage Service 10-11 © Wyred 4 Sound. All rights reserved. PH-1 Owner’s Manual v1.2...
-
Page 3: Important Safeguards
They can take this product for environmentally safe recycling. ● Keep your packaging! It is custom made for your unit and will effectively protect it for possible future use. © Wyred 4 Sound. All rights reserved. PH-1 Owner’s Manual v1.2... -
Page 4: Package Contents
Introduction & Design Features Although the PH-1 is new to our product line, the product is not new to us. We’ve had the luxury of designing and working with our OEM customers on such products in the past which has given us the knowledge to perfect our now PH- 1. -
Page 5: Front Panel
Power Switch Press the button to power on the PH-1, press the button again to power off. We recommend turning the PH-1 off when it is not in use. A blue led light on the power button illuminates when the PH-1 is turned on, green when in standby. -
Page 6: Back Panel Diagram
3. Inputs Connect the Single Ended (RCA) cables from your turntable here. 4. Gain Control 5. Loading Control 6. Ground Connection Connect the ground cable from your turntable here. © Wyred 4 Sound. All rights reserved. PH-1 Owner’s Manual v1.2... - Page 7 Refer to the diagram on page 6 for the locations of the numbers in the instructions below Before using the PH-1 the external power supply should be connect to the PH-1 (1) and then connect the included power cable to an AC outlet. Please make sure that the unit is connected to power and is in standby then connect the ground lead from the turntable to the ground terminal (6) on the unit before making any audio connections.
-
Page 8: Specifications
85mv in (44db) 111db (Awt 20-20kHz Balanced out) s/n 10mv in (62db) 95db (Awt 20-20kHz Balanced out) Max output 13v RMS Balanced, 6v RMS Unbalanced Output Impedance 100Ω Balanced, 100Ω Unbalanced © Wyred 4 Sound. All rights reserved. PH-1 Owner’s Manual v1.2... -
Page 9: Troubleshooting
Troubleshooting No Power or Sound? 1. Verify that the PH-1 is plugged securely into a working wall outlet/power strip and turned on. The front panel will light if so. 2. Ensure none of your components are in ‘mute’. 3. Verify that the cable is securely attached into the back of the PH-1 and your turntable. - Page 10 Service In the event there is a problem with your Wyred 4 Sound component, first contact your dealer, distributor, or Wyred 4 Sound directly to discuss the issue before you return the component to our manufacturing facilities for repair. Products shipped to the factory will be refused and returned freight collect if not accompanied by a Wyred 4 Sound Service Department issued return authorization number (RA Number).
- Page 11 The product may also be hand delivered to the California facility if arrangements with the Service Department have been made in advance. Proof of purchase from an authorized Wyred 4 Sound dealer, distributor or agent will be required for warranty validation at the time of hand delivery. Use of the original packaging to ensure the safe transit of the product is strongly recommended.
- Page 12 Be sure to sign up for our newsletter to receive the latest news and updates! See the “Wyred In” section in the footer of our website. Follow us on Facebook: facebook.com/wyred4sound Follow us on Twitter: twitter.com/Wyred4Sound © Wyred 4 Sound. All rights reserved. PH-1 Owner’s Manual v1.2...
