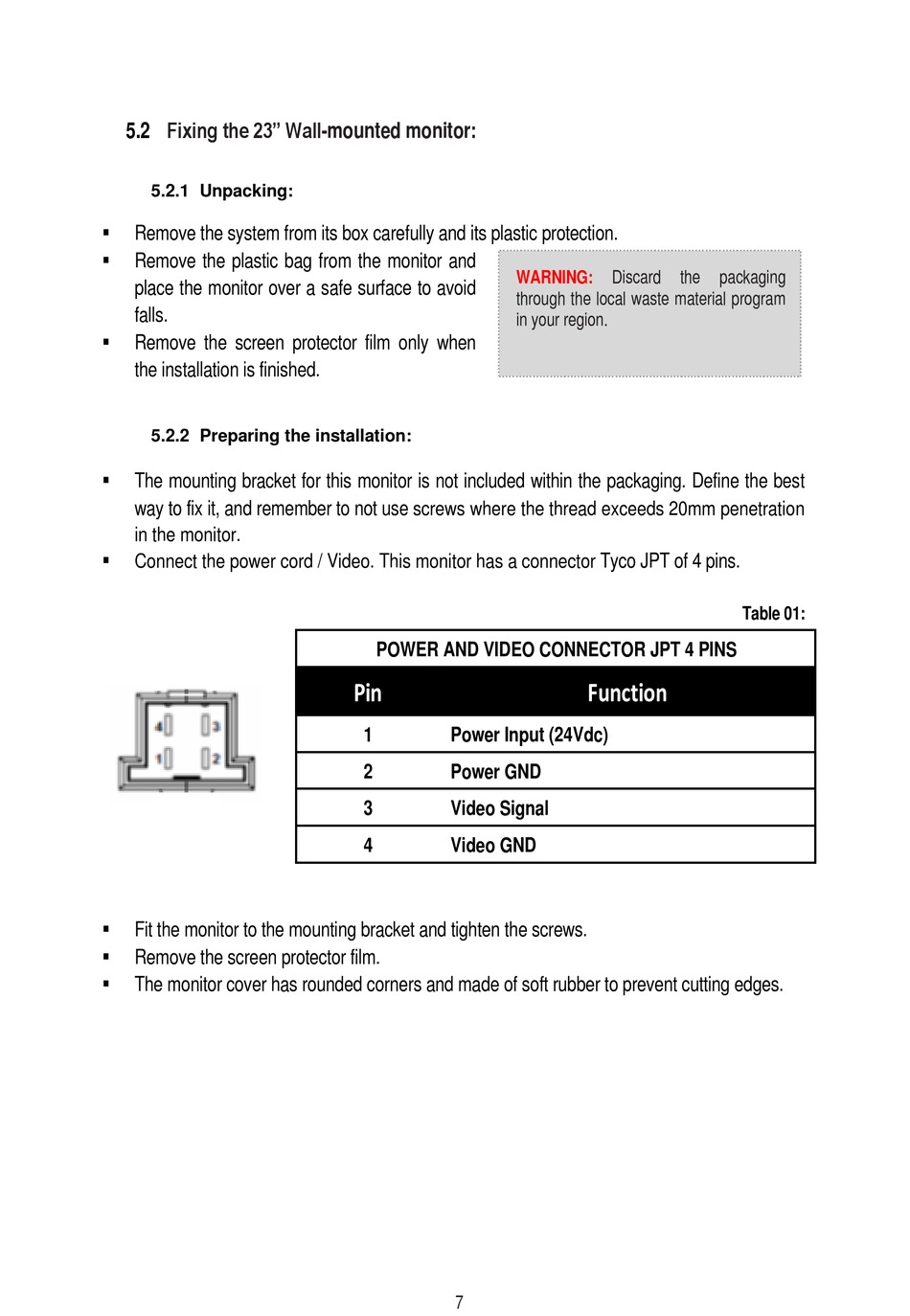

Fixing the 23" Wall-mounted monitor:
5.2

5.2.1 Unpacking:


Remove the system from its box carefully and its plastic protection.

Remove the plastic bag from the monitor and
place the monitor over a safe surface to avoid
falls.

Remove the screen protector film only when
the installation is finished.

5.2.2 Preparing the installation:


The mounting bracket for this monitor is not included within the packaging. Define the best
way to fix it, and remember to not use
in the monitor.

Connect the power cord / Video. This monitor has a connector

Fit the monitor to the mounting bracket and tighten the screws.

Remove the screen protector film.

The monitor cover has rounded corners and made of soft rubber to prevent cutting edges.
WARNING:
through the local waste material program
in your region.
screws where the thread exceeds 20mm penetration
POWER AND VIDEO CONNECTOR JPT 4 PINS
Pin
1 Power Input (24Vdc)
2 Power GND
3 Video Signal
4 Video GND
7
Discard the packaging
Tyco JPT of 4 pins.
Table 01:
Function
