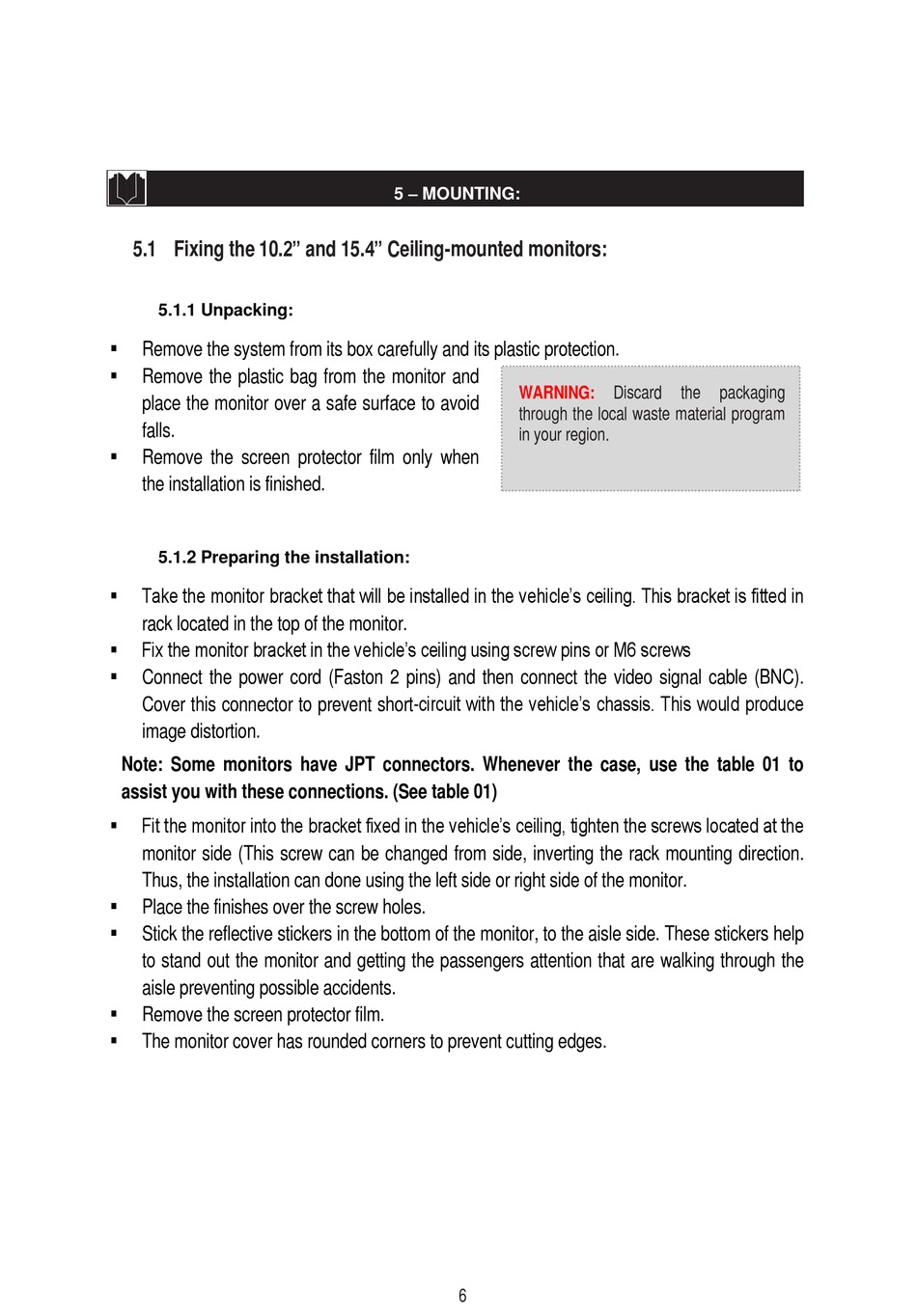

5.1 Fixing the 10.2" and 15.4" Ceiling-mounted monitors:

5.1.1 Unpacking:


Remove the system from its box carefully and its plastic protection.

Remove the plastic bag from the monitor and
place the monitor over a safe surface to avoid
falls.

Remove the screen protector film only when
the installation is finished.

5.1.2 Preparing the installation:

 Take the monitor bracket that will be installed in the vehicle's ceiling. This bracket is fitted in
rack located in the top of the monitor.
 Fix the monitor bracket in the vehicle's ceiling using screw pins or M6 screws

Connect the power cord (Faston 2 pins) and then connect the video signal cable (BNC).
Cover this connector to prevent short-circuit with the vehicle's chassis. This would produce
image distortion.
Note: Some monitors have JPT connectors. Whenever the case, use the table 01 to
assist you with these connections. (See table 01)
 Fit the monitor into the bracket fixed in the vehicle's ceiling, tighten the screws located at the
monitor side (This screw can be changed from side, inverting the rack mounting direction.
Thus, the installation can done using the left side or right side of the monitor.

Place the finishes over the screw holes.

Stick the reflective stickers in the bottom of the monitor, to the aisle side. These stickers help
to stand out the monitor and getting the passengers attention that are walking through the
aisle preventing possible accidents.

Remove the screen protector film.

The monitor cover has rounded corners to prevent cutting edges.
