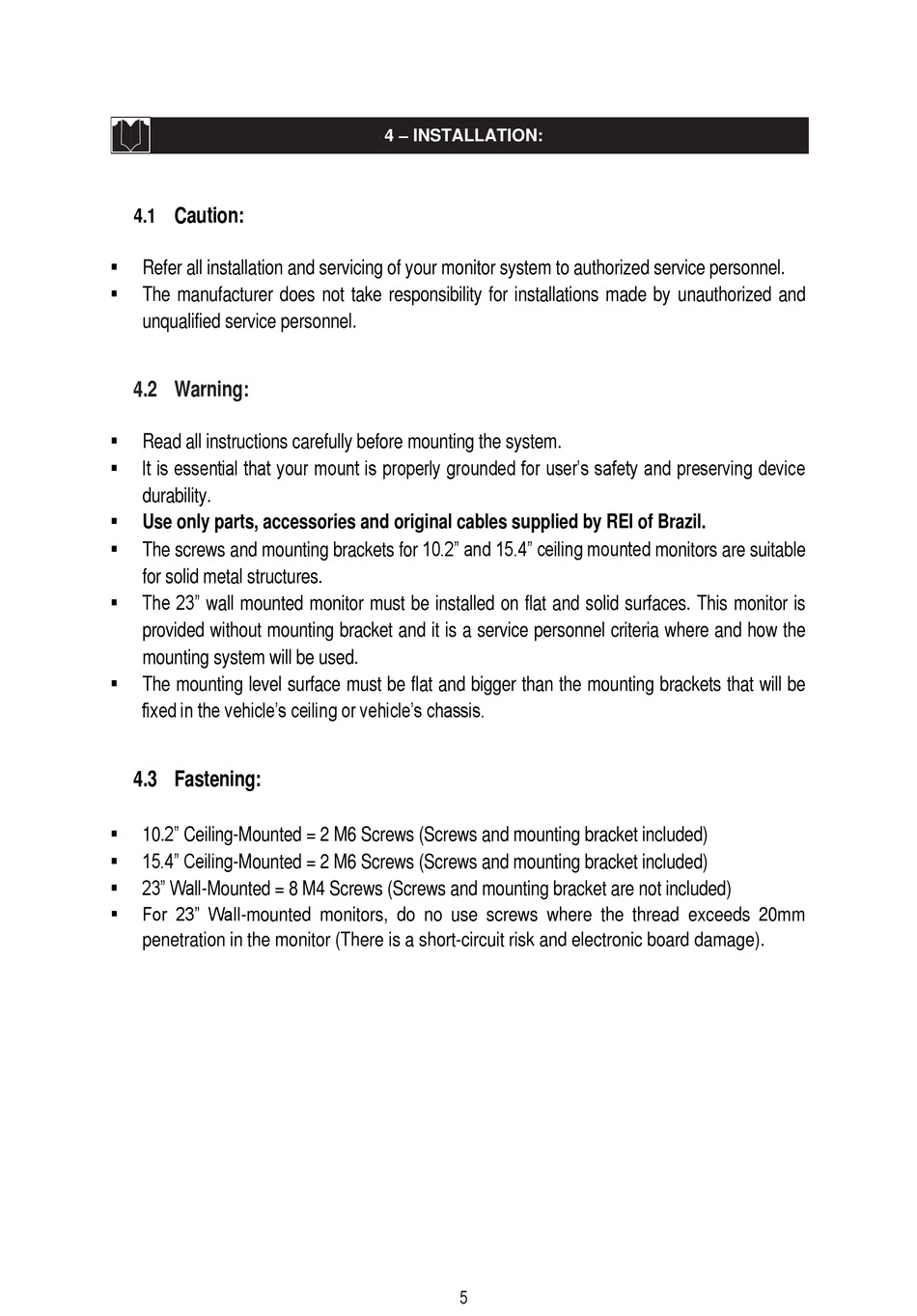

Installation; Caution; Warning; Fastening - REI LCD/LED Monitor User Manual

Caution:

4.1

Refer all installation and servicing of your monitor system to authorized service personnel.

The manufacturer does not take responsibility for installations made by unauthorized and
unqualified service personnel.

4.2 Warning:


Read all instructions carefully before mounting the system.
 It is essential that your mount is properly grounded for user's safety and preserving device
durability.

Use only parts, accessories and original cables supplied by REI of Brazil.
 The screws and mounting brackets for 10.2" and 15.4" ceiling mounted monitors are suitable
for solid metal structures.
 The 23" wall mounted monitor must be installed on flat and solid surfaces. This monitor is
provided without mounting bracket and it is a service personnel criteria where and how the
mounting system will be used.

The mounting level surface must be flat and bigger than the mounting brackets that will be
fixed in the vehicle's ceiling or vehicle's chassis.

4.3 Fastening:


10.2" Ceiling-Mounted = 2 M6 Screws (Screws and mounting bracket included)
 15.4" Ceiling-Mounted = 2 M6 Screws (Screws and mounting bracket included)
 23" Wall-Mounted = 8 M4 Screws (Screws and mounting bracket are not included)
 For 23" Wall-mounted monitors, do no use screws where the thread exceeds 20mm
penetration in the monitor (There is a short-circuit risk and electronic board damage).
4 – INSTALLATION:
4 – INSTALACIÓN:
5
