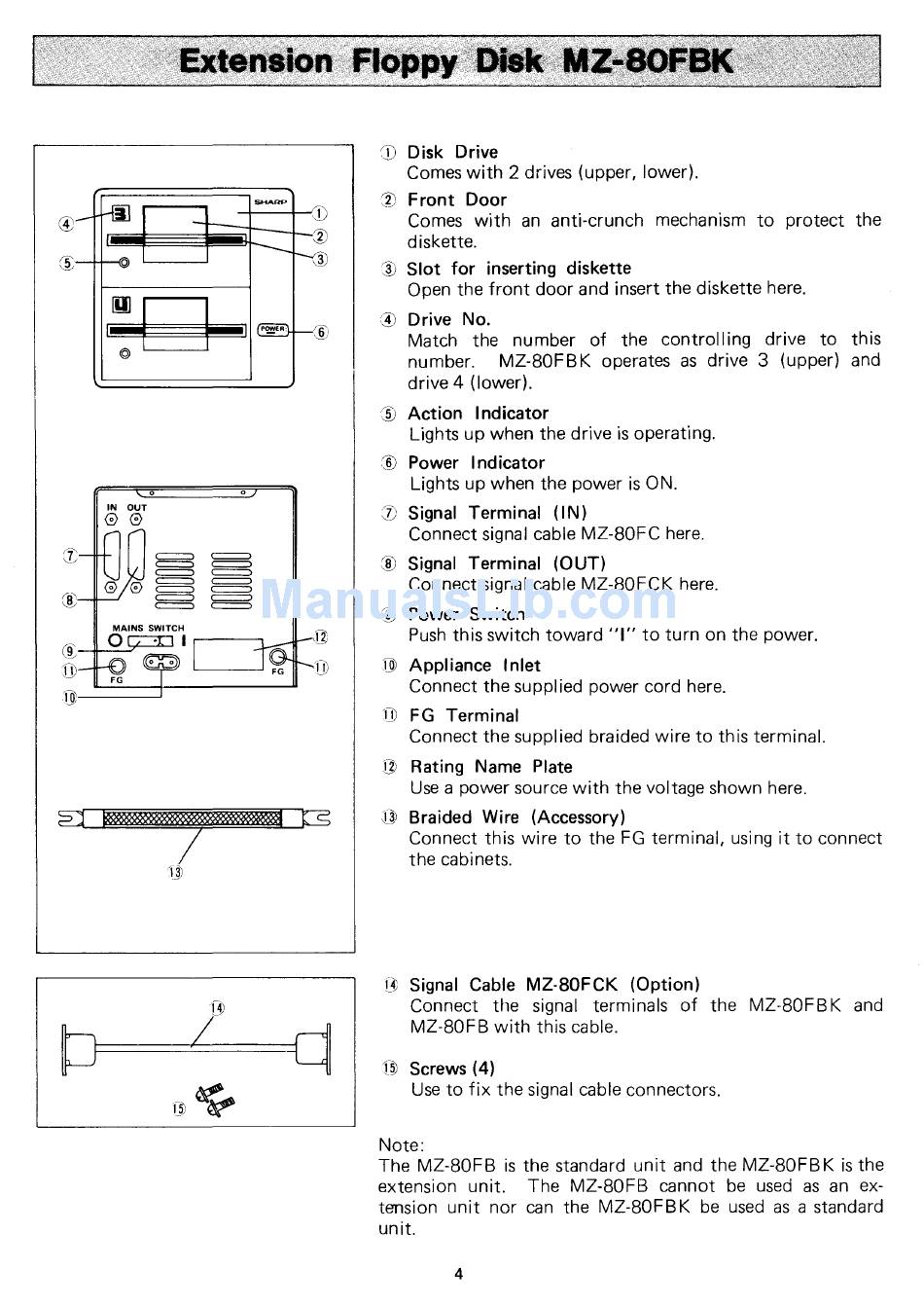

Sharp MZ-80FB/FBK Instruction Manual page 6

Floppy disk
Hide thumbs

Advertisement

-
t-fj]
,g
[gJ
I
I
@
IN
OUT
00
([,-it---/
1D
-
I
SHARP
----
I~
=
=
=
=
= =
=
J)
t-:l)
r-<ID
1-([;
1];~===:j---------"
2JL~~~~~~~~LS
1~
141
p~~/~"
====q
CD
Disk Drive
Comes with 2 drives (upper, lower).
:l)
Front Door
Comes with an anti-crunch mechanism to protect the
diskette.
~t
Slot for inserting diskette
Open the front door and insert the diskette here.
~
Drive No.
Match the number of the controlling drive to this
number.
MZ-80FBK operates as drive 3 (upper) and
drive 4 (lower).
:ID
Action Indicator
Lights up when the drive is operating.
@
Power Indicator
Lights up when the power is ON.
J)
Signal Terminal (IN)
Connect signal cable MZ-80FC here.
:ID
Signal Terminal (OUT)
Connect signal cable MZ-80FCK here.
.1)
Power Switch
Push this switch toward "I" to turn on the power.
j]
Appliance Inlet
Connect the supplied power cord here.
11)
FG Terminal
Connect the supplied braided wire to this terminal.
1]
Rating Name Plate
Use a power source with the voltage shown here.
.:L~
Braided Wire (Accessory)
Connect this wire to the FG terminal, using it to connect
the cabinets.
L~
Signal Cable MZ-80FCK (Option)
Connect the signal terminals of the MZ-80FB K and
MZ-80FB with this cable.
rID
Screws (4)
Use to fix the signal cable connectors.
Note:
The MZ-80FB is the standard unit and the MZ-80FB K is the
extension unit.
The MZ-80FB cannot be used as an ex-
tension unit nor can the MZ-80FBK be used as a standard
unit.
4
